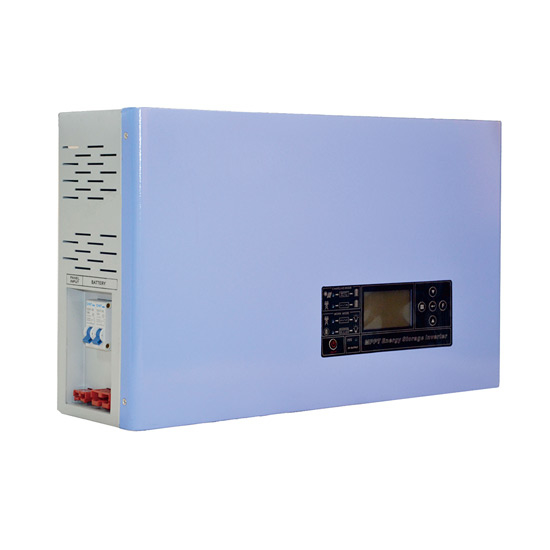

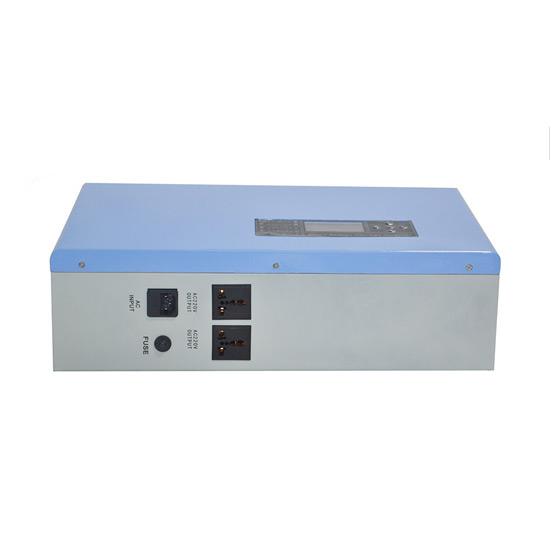

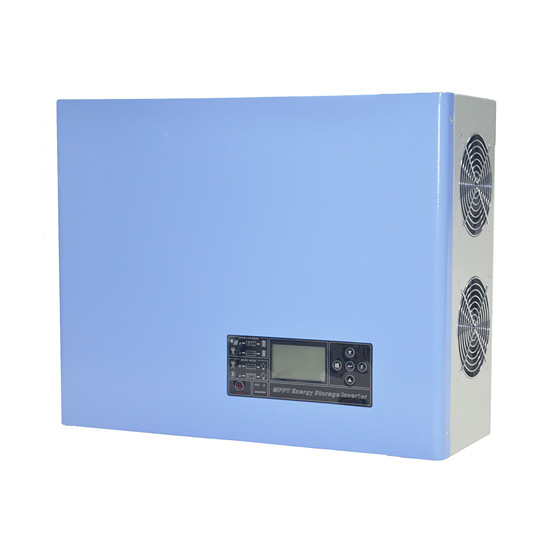

6000W 48/96V Solar Inverter With MPPT Charge Controller
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
6000W 48/96V Solar Inverter With MPPT Charge Controller
from
$2,158.63
Ex Tax: $2,158.63
- Stock: In Stock
- Model: HZTOHZ-IC-6000
- Weight: 1.00
- SKU: HZTOHZ-IC-6000
48 volt, 96 volt DC pure sine wave solar inverter with MPPT charge controller, 6000W (8000VA) rated power, 60 amps battery max charge current, perfect protection functions. LCD display is presenting statues of all parts in real time. Buy a low price inverter with MPPT charge controller online.

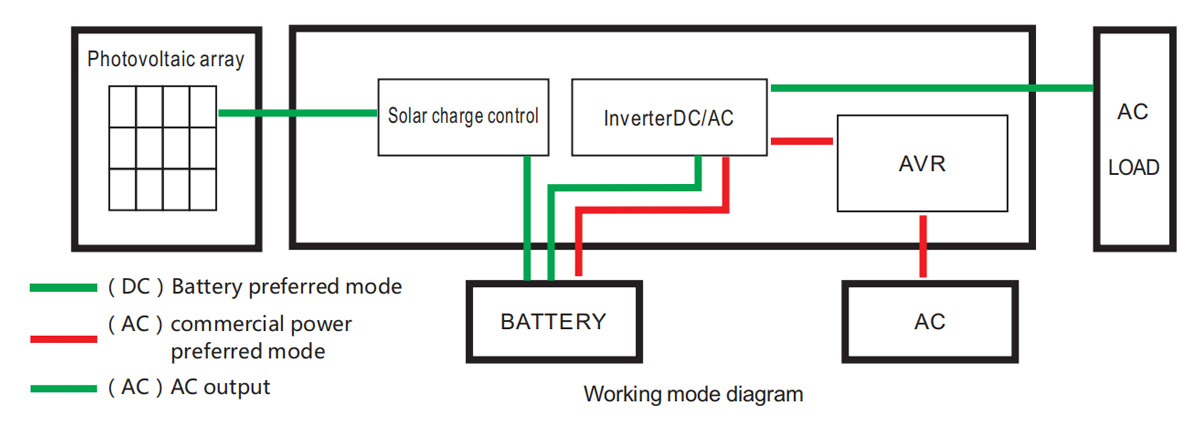

Solar Inverter with MPPT Charge Controller Working Mode Instructions
| Model | HZTOHZ-IC-6000 | ||||||
| Rated capacity | 6000W (8000VA) | ||||||
| Size | 555*390*195mm | ||||||
| Net Weight | 43kg | ||||||
| Function | Setting | Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset | |||||
| Working mode | Grid priority/ Battery priority (optional) | ||||||
| Charge mode | PV priority/ PV+grid (optional) | ||||||
| LCD dislpay | Internal and External temperature, record query (fault record), system information query | ||||||
| PV input | Voltage range | 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC) | |||||
| Battery max charge current | 60A | ||||||
| Battery volatge | 48V/ 96V | ||||||
| Max power load | 3400W/ 6800W | ||||||
| Float voltage | 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V) | ||||||
| Equalization voltage | 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V) | ||||||
| Grid Input | Battery type | Lead acid/ gel/ lithium (optional, factory setting) | |||||
| Charge current | 0-30A | ||||||
| Charge mode | Improve charge, direct charge, float charge | ||||||
| AC Output | AC charge current | Standard: 0-30A | |||||
| AC output voltage | 110/ 220/ 230/ 240V ±3% | ||||||
| AC output frequency | 50Hz/ 60Hz | ||||||
| Conversion Efficiency | ≥85% | ||||||
| Overload | 105-120% 30s, 120-150% 10s,>150% 5s | ||||||
| Output form | Pure sine wave | ||||||
| Output power factor | ≥0.8 | ||||||
| Wave form distortion | ≤3% | ||||||
| Switching time | ≤4ms | ||||||
| Protection Function | Overload capacity | 105-120% 30s, 120-150% 10s,>150% 5s | |||||
| Over discharge | 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm | ||||||
| Over charge | 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm | ||||||
| High temperature | 85℃ auto shut down after alarm | ||||||
| Short circuit | Auto shut down | ||||||
| Others | Cooling method | Fan cooling | |||||
| Noise | <60> | ||||||
| Operating temperature | -10℃-50℃ | ||||||
| Environment humidity | 10%-90% (No condensation) | ||||||
| Working Elevation | <5000m (="">1000m, derating) | ||||||
