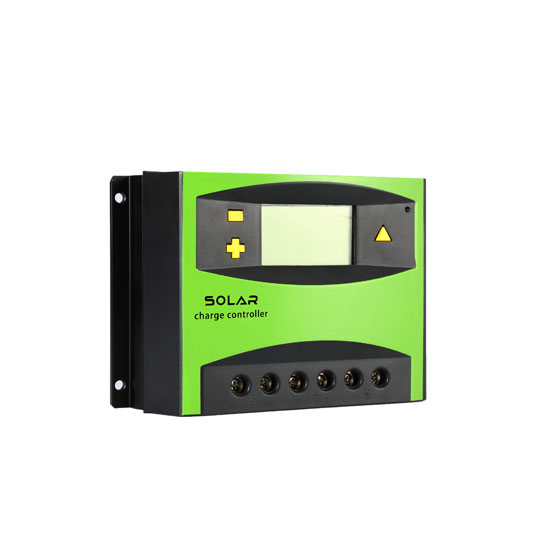

50A 12V/24V/48V PWM Solar Charge Controller
from
$92.46
Ex Tax: $92.46
- Stock: In Stock
- Model: HZTOHZ-PWM-LS-50
- Weight: 1.00
- SKU: HZTOHZ-PWM-LS-50

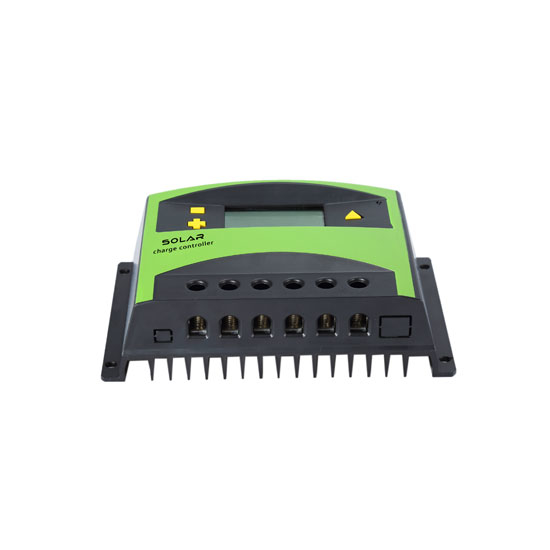

50A smart PWM solar charge controller for 12V/24V/48V batteries, auto swich DC 12V/24V.48V, light weight, beautiful appearance and fast heat dissipation.
Features
- Automatic identification system voltage 12V/24V or 24V/48V.

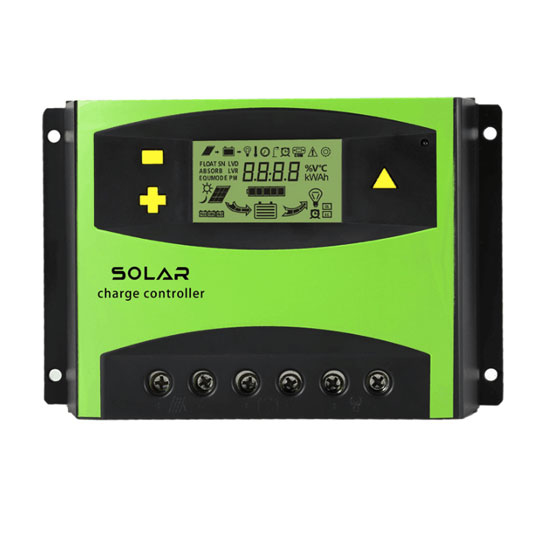

- 50 amp pwm solar charge controller has personalized LCD and two-button operator and page. High-performance PWM three-stage charging.
- You can choose to load the control template and set the streetlights in the world at night. 50a PWM solar charge controller comes with overvoltage, short circuit, overload, overcharge, over discharge protection.
- 12v pwm solar charge controller has accurate temperature compensation, correct charging, and discharging voltages automatically extend battery life.
- The default setting can be reset when the 12 volt PWM controller with the parameter set is powered off.
- The positive and negative terminals of the input terminal are reversely connected to protect PWM charger.

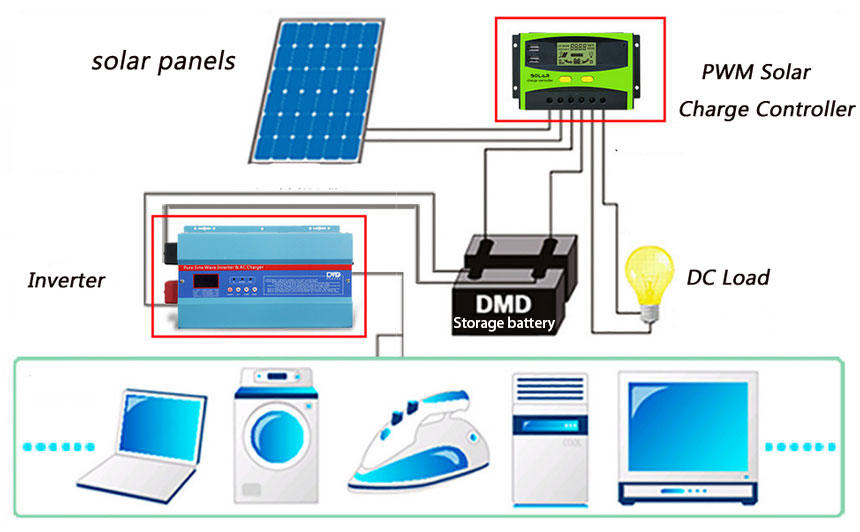

Circuit Diagram
| Model | HZTOHZ-PWM-LS-50 |
| System Voltage | DC 12V/24V, DC 24V/48V,automatically switch |
| The Max Voltage of The Solar Panel Input | 50V (12V/24V), 100V (24V/48V) |
| Self Los | ≤13mA |
| Max Charge Current | 20A |
| Max Discharge Current | 20A |
| LVD | (9-11V), 21V (18-22V), 42V (36-44V) |
| LVR | 12.6V (11-13.5V), 25.2V (22-27V), 50.4V (44-54V) |
| Floating Voltage | 13.8V (13-15V), 27.6V(26-30V), 55.2V(52-60V) |
| Increase the Charge | 14.4V/28.8V/57.6V, the battery voltage is below 12V/24V/48V, start extra charge for 2 hours |
| Battery overpressure protection | 15V/30V/60V |
| Input Reverse Connection Protection | Yes |
| Load Over Current Protection | Yes, every two seconds to restart |
| Charging Mode | PWM |
| Temperature Compensation | -24mV℃， -48mV℃， -96-mV℃， relative to 12V/24V/48V System |
| Operating Temperature | -20℃- +55℃ |
| Terminal Scale | 28-10AWG |
| Waterproof level | IP 32 |
| Product Size | 195mm*107mm*59mm |
| Weight | 850g |
