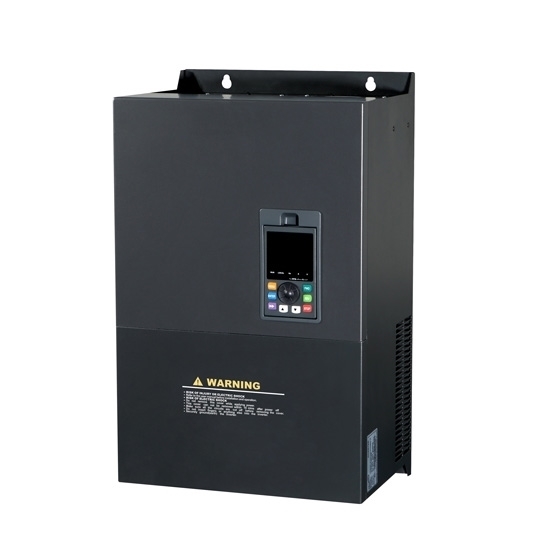

50 Hp (37 KW) VFD, 3 Phase 220V, 400V, 460V

50 Hp (37 KW) VFD, 3 Phase 220V, 400V, 460V
50 Hp (37 KW) VFD, 3 Phase 220V, 400V, 460V
0 reviews • Write a review
from Save -19%
$1,781.14
$2,199.00
Ex Tax: $1,781.14
  • Stock: In Stock
  • Model: HZTOHZ-G40
  • Weight: 1.00
  • SKU: HZTOHZ-G40

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Single Phase Output VFD
Quickview
1 Hp (0.75 KW) Single Phase Output VFD
$196.32 $220.00
Ex Tax:$196.32
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase To Three Phase VFD
Quickview
1 Hp VFD, Single Phase To Three Phase VFD
$159.32 $199.60
Ex Tax:$159.32
Add to Cart Add to Wish List Compare this Product
1/2 Hp VFD, Single Phase To Three Phase VFD
Quickview
1/2 Hp VFD, Single Phase To Three Phase VFD
$149.10 $197.00
Ex Tax:$149.10
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
Quickview
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
$463.25 $549.00
Ex Tax:$463.25
Add to Cart Add to Wish List Compare this Product
10 Hp VFD, Single Phase Input To Three Phase Converter
Quickview
10 Hp VFD, Single Phase Input To Three Phase Converter
$992.32 $1,109.98
Ex Tax:$992.32
Add to Cart Add to Wish List Compare this Product
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
Quickview
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
$3,197.41 $3,573.00
Ex Tax:$3,197.41
Add to Cart Add to Wish List Compare this Product

50 hp (37 kW) variable frequency drive for energy savings, three phase 220V, 400V, 460V for selection.

Specification:

BasicsModelGK3000-4T0370G/ GK3000-2T0370G
Capacity50 hp (37 kW)
Shipping weight30 kg
Dimension500*296*276 mm
I/O FeatureRated current75A at 380V ~ 480V, 150A at 220V ~ 240V
Input voltage3 phase 220V /400V /460V AC ±15% (Optional)
Input frequency50 Hz / 60 Hz
Output voltage3 phase AC 0~input voltage
Output frequency0.00~400.00Hz
Over load capacity150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control FeatureControl modeV/F control;
Sensorless vector control;
CommunicationRS485
Speed regulation1:100
Start torque150% of rating torque at 1 Hz
Speed control accuracy≤±0.5% of rating synchronous speed
Frequency precisionDigital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolutionAnalog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boostAutomatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controllerBe convenient to make closed-loop system
Automatic energy save runningOptimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)Can keep constant output voltage when power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over-current which will cause trip
EnvironmentEnclosure ratingIP 20
Temperature–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity5%-95%, without condensation
Altitude≤1000m; VFD will be derated if above 1000m
Impingement and oscillationNormal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Store environment–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight



Tips: Protect motor from bearing failure with a correctly specified VFD.
A correctly specified and installed variable frequency drive (VFD) system will not damage bearings or motor equipment, it will actually prolong and protect the motor and extend its life. It is important to talk to your VFD manufactures engineers to find out how to do this as it does not just happen by buying the cheapest VFD you can find, and do not buy the cheapest motor either. Buy one that is designed for VFD service.

Whatever the performance of the VFD, the most important thing is to protect your motor from the VFD induced shaft current which will ultimately destroy the motor bearings (or whatever is connected downstream in case the motor have insulated bearings). A lot of people have mistaken the failure of the bearings as mechanical failure. However, if you cut opened the failed bearing and notice fluting (washing board pattern) or frosting (white line along the wall), this is proof that there have been electrical discharge through the bearing.
