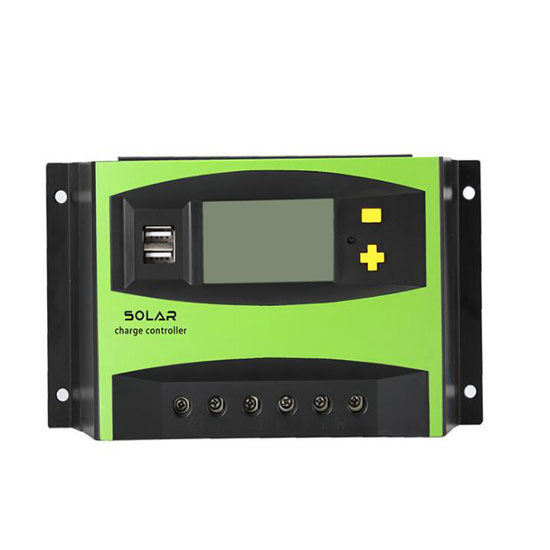

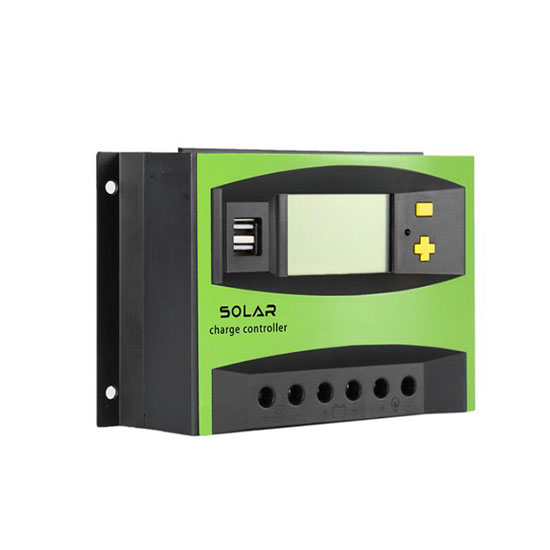

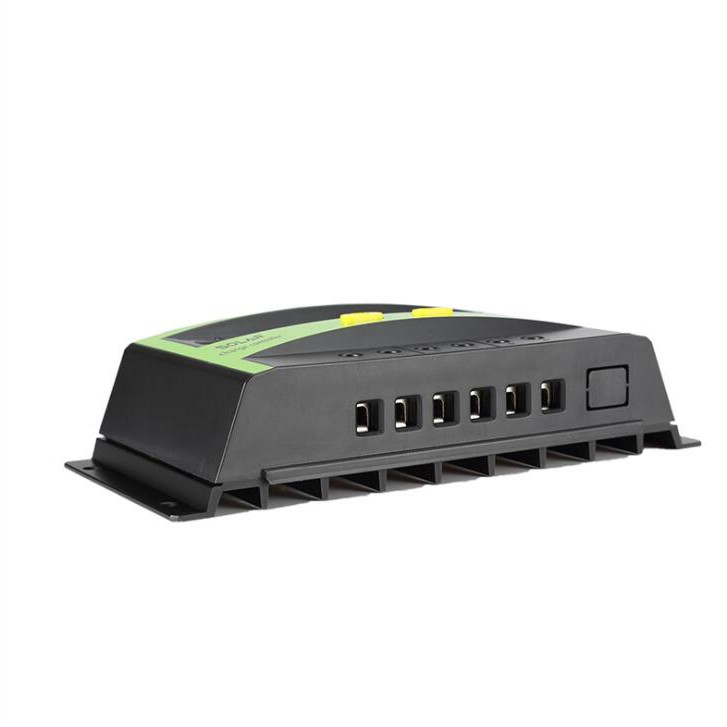

40A 12V/24V/48V PWM Solar Charge Controller
from
$86.59
Ex Tax: $86.59
- Stock: In Stock
- Model: HZTOHZ-PWM-LS-40
- Weight: 1.00
- SKU: HZTOHZ-PWM-LS-40
An automatic 40 amp PWM solar charge controller can recognize 12V/24V/48V, multi-function LED display, easy operation, and long service lifetime, it is the best choice for solar power systems.
Features
- Automatic identification system voltage 12V/24V or 24V/48V.
- 24v PWM controller comes with a personalized LCD and two-button operator and page. High-performance PWM three-stage charging.
- You can choose to load the control template and set the streetlights in the world at night.
- PWM solar charger has overvoltage, short circuit, overload, overcharge, and over-discharge protection.
- With accurate temperature compensation and correct charging, 12 volt PWM controller can discharge voltages automatically and extend battery life.
- The default setting can be reset when the controller with the parameter set is powered off. The positive and negative terminals of the input terminal are reversely connected to protect the 12v 24v 40a PWM solar charge controller.

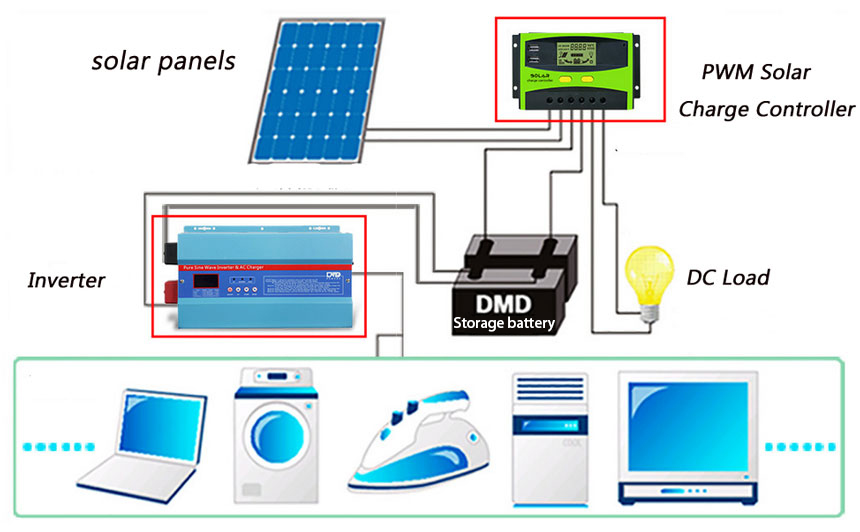

Circuit Diagram
| Model | HZTOHZ-PWM-LS-40 |
| System Voltage | DC 12V/24V, DC 24V/48V,automatically switch |
| The Max Voltage of The Solar Panel Input | 50V (12V/24V), 100V (24V/48V) |
| Self Los | ≤13mA |
| Max Charge Current | 20A |
| Max Discharge Current | 20A |
| LVD | (9-11V), 21V (18-22V), 42V (36-44V) |
| LVR | 12.6V (11-13.5V), 25.2V (22-27V), 50.4V (44-54V) |
| Floating Voltage | 13.8V (13-15V), 27.6V(26-30V), 55.2V(52-60V) |
| Increase the Charge | 14.4V/28.8V/57.6V, the battery voltage is below 12V/24V/48V, start extra charge for 2 hours |
| Battery overpressure protection | 15V/30V/60V |
| Input Reverse Connection Protection | Yes |
| Load Over Current Protection | Yes, every two seconds to restart |
| Charging Mode | PWM |
| Temperature Compensation | -24mV℃， -48mV℃， -96-mV℃， relative to 12V/24V/48V System |
| Operating Temperature | -20℃- +55℃ |
| Terminal Scale | 28-10AWG |
| Waterproof Level | IP 32 |
| Product Size | 195mm*107mm*59mm |
| Weight | 850g |
