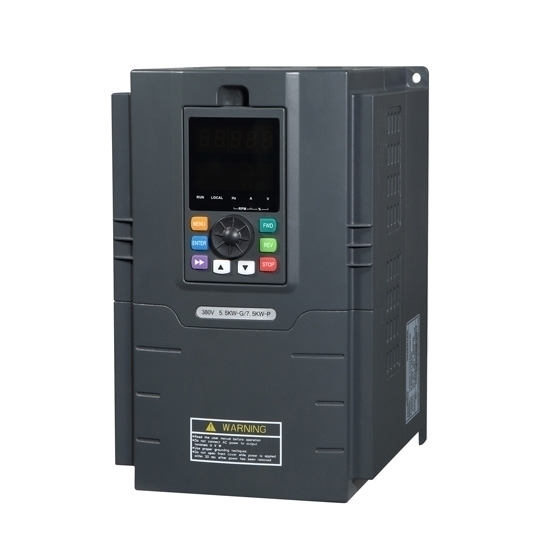

30 Hp (22kW) VFD, 3 Phase 208V, 440V, 460V

30 Hp (22kW) VFD, 3 Phase 208V, 440V, 460V
30 Hp (22kW) VFD, 3 Phase 208V, 440V, 460V
0 reviews • Write a review
from Save -20%
$1,264.30
$1,589.00
Ex Tax: $1,264.30
  • Stock: In Stock
  • Model: HZTOHZ-G38
  • Weight: 1.00
  • SKU: HZTOHZ-G38

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Single Phase Output VFD
Quickview
1 Hp (0.75 KW) Single Phase Output VFD
$196.32 $220.00
Ex Tax:$196.32
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase To Three Phase VFD
Quickview
1 Hp VFD, Single Phase To Three Phase VFD
$159.32 $199.60
Ex Tax:$159.32
Add to Cart Add to Wish List Compare this Product
1/2 Hp VFD, Single Phase To Three Phase VFD
Quickview
1/2 Hp VFD, Single Phase To Three Phase VFD
$149.10 $197.00
Ex Tax:$149.10
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
Quickview
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
$463.25 $549.00
Ex Tax:$463.25
Add to Cart Add to Wish List Compare this Product
10 Hp VFD, Single Phase Input To Three Phase Converter
Quickview
10 Hp VFD, Single Phase Input To Three Phase Converter
$992.32 $1,109.98
Ex Tax:$992.32
Add to Cart Add to Wish List Compare this Product
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
Quickview
100 Hp (75 KW) VFD, 3 Phase 230V, 400V, 460V
$3,197.41 $3,573.00
Ex Tax:$3,197.41
Add to Cart Add to Wish List Compare this Product

30 hp (22 kW) high performance variable frequency drive, three phase 208V, 440V, 460V for selection.

Specification:

BasicsModelGK3000-4T0220G/ GK3000-2T0220G
Capacity30 hp (22 kW)
Shipping weight18 kg
Dimension423*258*230 mm
I/O FeatureRated current45A at 380V ~ 480V, 91A at 220V ~ 240V
Input voltage3 phase 208V /440V /460V AC ±15% (Optional)
Input frequency50Hz/ 60Hz
Output voltage3 phase AC 0~input voltage
Output frequency0.00~400.00Hz
Over load capacity150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control FeatureControl modeV/F control;
Sensorless vector control;
CommunicationRS485
Speed regulation1:100
Start torque150% of rating torque at 1 Hz
Speed control accuracy≤±0.5% of rating synchronous speed
Frequency precisionDigital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolutionAnalog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boostAutomatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controllerBe convenient to make closed-loop system
Automatic energy save runningOptimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)Can keep constant output voltage when power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over-current which will cause trip
EnvironmentEnclosure ratingIP 20
Temperature–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity5%-95%, without condensation
Altitude≤1000m; VFD will be derated if above 1000m
Impingement and oscillationNormal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Store environment–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight



Tips: What should be knowing about VFD for a fresher?

First you have to understand the process and application for which you were using the variable frequency drive (VFD). Their safety parameters, controls (I/O), rectifier unit, dc circuit, inverter unit, motor protection, motor speed control, resonant frequency, switching frequency, connections, harmonics, surge & power factor. Basic parameters of VFD like voltage amps watts and wiring connection like 2 wire three wire and VFD connections. You must have to know and study about this before going to the practical application.

The loads
1. You must thoroughly understand the driven load; is it constant torque or variable torque (heavy duty or normal duty in Europe).
2. What is the required speed range? It is not 0 - 1800 RPM, it will be something like 30 - 1200 RPM - the load determines that.
3. What is the speed reference?
4. You do not require a special motor. All premium efficient motors are wound with spike resistant wire. Most old motors will work just fine but you may want to add a line reactor. However, there are special induction motors for VFD operation only, which provide increased capabilities.
5. There are many other options available but usually not required. All of those are dictated by the load.
