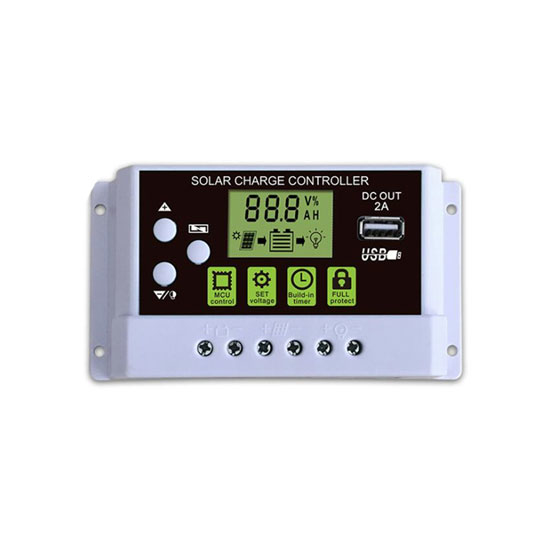

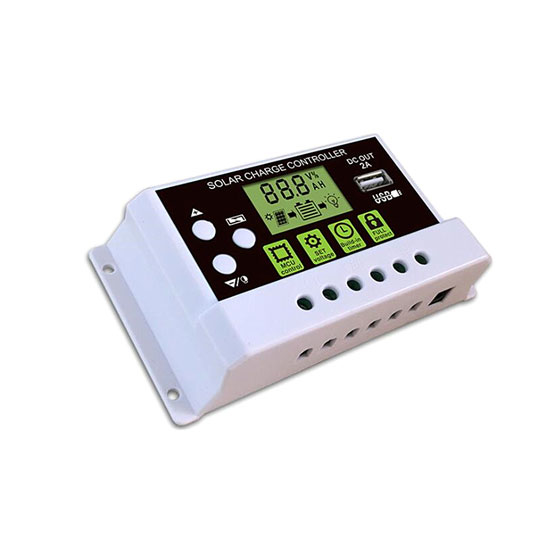

30 Amp 12/24V PWM Solar Charge Controller
from
$78.26
Ex Tax: $78.26
- Stock: In Stock
- Model: HZTOHZ-PWM-30
- Weight: 1.00
- SKU: HZTOHZ-PWM-30
PWM solar charge controller rated charge controller current 30A, DC 12V/24V Auto intelligence, USB output, backlight design, low light can also be used.
Features
- The left button is not affected by the wiring position, and the operation is convenient. The button is separated from the USB left and right to prevent the data line from being loosened when the button is operated to prevent equipment damage. Easy to operate, saves setup time.
- The chip of PWM controller 24v has data logging and storage capabilities. The improvement of the position of the terminal prevents the current from being backflushed and burning out the controller, and also protects the battery, making the PWM solar controller's charging process safer.
- The PWM charge controller screen comes with a backlight function. Just click any button and the screen will light up, which is convenient for the night or low light.
2.0A USB output interface for faster charging. Solve the troubles of customers' mobile phones or electronic devices.

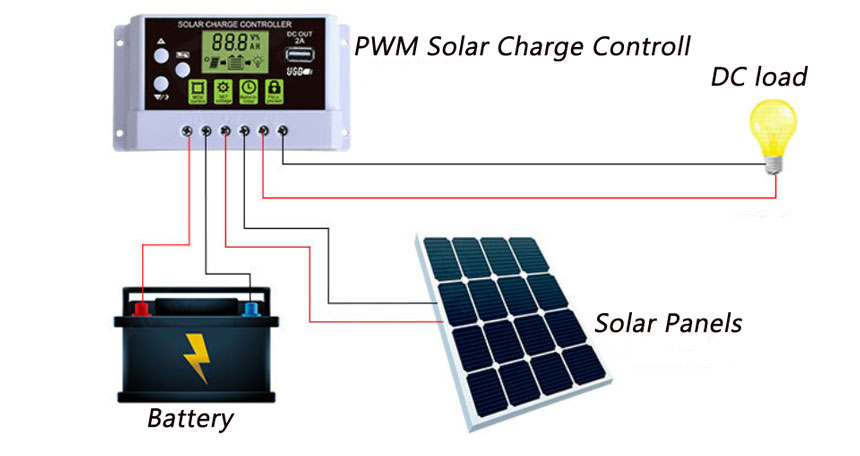

Wiring Diagram
| Model | HZTOHZ-PWM-30 | ||
| DC Voltage | 12V/24V Auto Adapt | ||
| Charge Current | 10A | 20A | 30A |
| Discharge Current | 10A | 10A | 10A |
| USB output | 5V 2A | ||
| Max Solar Input | <> | ||
| Equalization | lithium battery（LIT）：12.8V | ||
| Lead acid battery（BAT）：14.4V | |||
| Float | Lead acid battery: 13.7V (Defaults, Adjustable range 13-15V) | ||
| Lithium battery: 12.0V (Defaults, Adjustable range 11.5-12.8V) | |||
| Undervoltage Protection | Lead acid battery: 10.7V (Defaults, Adjustable range 9.0-11.5V) | ||
| Lithium battery: 10.7V (Defaults, Adjustable range9.0-11.0V) | |||
| Disstarge Reconnect | Lead acid battery: 12.6V (Defaults, Adjustable range 11.5-13V) | ||
| Lithium battery: 11.6V (Defaults, Adjustable range 11.0-11.7V) | |||
| Standby Current | <> | ||
| Operating Temperature | -35~+60℃ | ||
| Dimension | 133mm*70mm*35mm | ||
| Weight | 140g | ||
