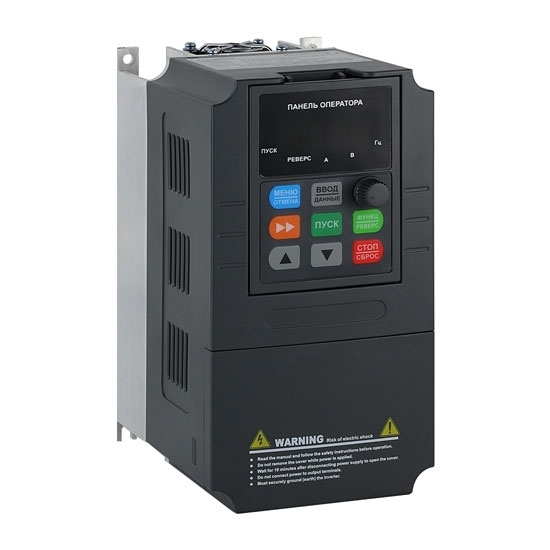

3hp (2.2kW) single phase variable frequency drive, 1-phase 220v, 230v, 240v 50Hz/60Hz input, single phase 0-220v output.
GoHz single phase output VFDs work for both L-N-G motors and split phase (L1-L2, +N, G) motors.
Specification:
| Basics | Model | GK3000-1S0022 |
| Capacity | 3 hp (2.2 kW) | |
| Shipping weight | 4 kg | |
| Dimension | 173*135*240 mm | |
| I/O Feature | Rated current | 17 A |
| Input voltage | Single phase AC 220V, 230v, 240v ±15% | |
| Input frequency | 47~63Hz | |
| Output voltage | 0～rated input voltage | |
| Output frequency | V/f control: 0~500Hz | |
| Over load capacity | 150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s | |
| Control Features | Control mode | V/f control |
| Operation command mode | Keypad control, Terminal control, Serial communication control | |
| Frequency setting mode | Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes. | |
| Starting torque | 1 Hz/150% | |
| Speed adjustment range | 1:50 | |
| Carrier frequency | 1.0-16.0kHz, automatically adjusted according to temperature and load characteristics | |
| Frequency accuracy | Digital setting: 0.01Hz Analog setting: Maximum frequency * 0.05% | |
| Torque boost | Automatically torque boost; manually torque boost: 0.1%~30.0% | |
| V/f curve | Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square) | |
| Acceleration/deceleration mode | Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s | |
| DC braking | DC braking when starting and stopping DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s | |
| Jog operation | Jog operation frequency: 0.0Hz~maximum frequency Jog acceleration/deceleration time: 0.1s~3600.0s | |
| Simple PLC & multi-step speed operation | GoHz VFD can realize a maximum of 16 segments speed running via the built-in PLC or control terminal. | |
| Built-in PID | Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.) | |
| Automatic voltage regulation | Keep output voltage constant automatically when input voltage fluctuating | |
| Input/output terminals | Input terminals | Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI: AI1: 0～10V or 0/4～20mA A12: 0～10V or 0/4～20mA |
| Output terminals | 1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay output 2 analog output: 0/4~20mA or 0~10V | |
| Communication terminals | Offer RS485 communication interface, support MODBUS-RTU communication protocol | |
| Human machine interface | LED display | Display frequency setting, output frequency, output voltage, output current, etc. |
| Multifunction key | QUICK/JOG key, can be used as multifunction key | |
| Environment | Ambient temperature | -10℃～40℃, derated 4% when the temperature rise by every 1℃ (40℃～50℃). |
| Humidity | 90%RH or less (non-condensing) | |
| Altitude | ≤1000M: Output rated power, ＞1000M: Output derated | |
| Storage temperature | -20℃～60℃ |
Note: The single phase motor should Not be adjusted to run based on a lower frequency than 80% of its rated frequency for along time, otherwise the motor may fail.

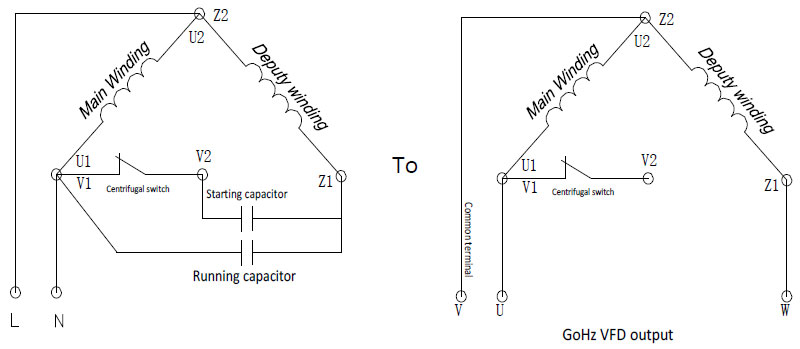

GoHz 3 hp single phase VFD wiring instruction for single phase induction motor
Single phase induction motor has specific wiring requirements in connecting with GoHz 3 hp single phase variable frequency drive to enable your single phase motor running properly, please follow below instructions step by step:
- Single phase motor has one or two capacitors, disassembly them. The VFD output can't have capacitor.
- VFD Common Terminal: Running GoHz 3 hp VFD at 50Hz without connecting loads, measuring the output voltages of U-V, U-W, and V-W, two of three voltage values are the same, their common port is VFD's common terminal. Usually the default common terminal is V phase. (The output voltage is a bit higher for the non-common terminal)
- Single phase motor has 3 windings and 6 taps. Base on the measuring results of the resistance by a multimeter, the biggest resistance is the secondary winding (Z1, Z2), the smaller resistance is the main winding (U1, U2), the smallest resistance (conducting) is centrifugal switch (V1, V2).
- The Coupling End of the single phase motor secondary winding (Z2) and main winding (U2) is connected to GoHz 3hp VFD's output common terminal (V phase).
- The Coupling End of the single phase motor main winding (U1) and centrifugal switch (V1) is connected to GoHz 3hp VFD's U phase. The Coupling End of the secondary winding (Z1) and capacitor is connected to the VFD's W phase. In case of the induction motor running in reverse, please exchange the VFD's U phase and W phase.

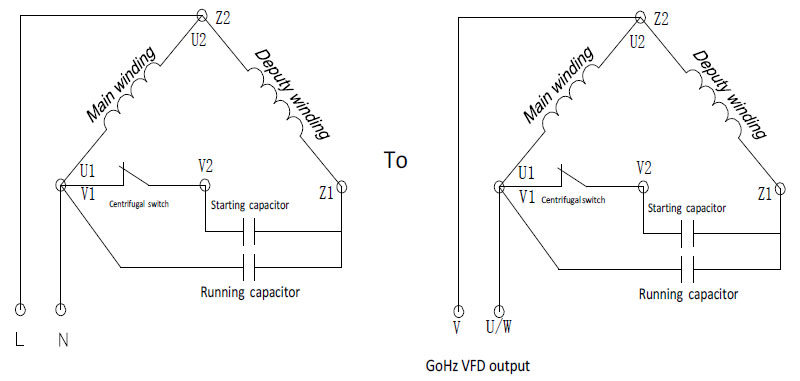

GoHz 3 hp VFD wiring instruction for single phase motor without disassembling capacitors
Connecting the single phase motor input lines (L, N) to GoHz 3hp VFD's V, U or W terminals. Generally V Phase should be connected, U or W is optional. Refer to below wiring picture:
Download GoHz single phase motor wiring instructions (pdf).
