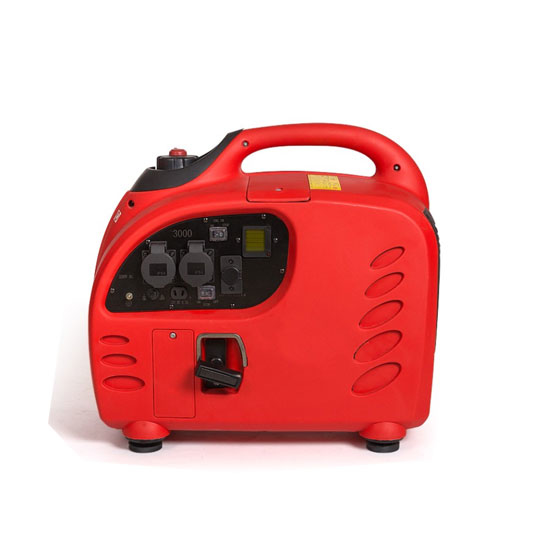

2500 Watt Portable Inverter Generator
New
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
2500 Watt Portable Inverter Generator
from
$3,082.92
Ex Tax: $3,082.92
- Stock: In Stock
- Model: HZTOHZ-IG-2500
- Weight: 1.00
- SKU: HZTOHZ-IG-2500
Portable 2500 watt inverter generator AC voltage can select 110V, 230V, 240V, 220V, output frequency 50/60Hz, easy and convenient, it is ideal for use at home or while camping.
Specificaton
| Generator | Model | HZTOHZ-IG-2500 | ||||
| Type | Carburetor Generator | |||||
| Rated Power | 2500 Watt | |||||
| Max Power | 2800 Watt | |||||
| Frequency | 50Hz/60Hz | |||||
| AC Rated Voltage | 100V, 110V, 120V, 220V, 230V, 240V | |||||
| AC Rated Current | 23A, 20.9A, 19.2A, 10.51A, 10A, 9.6A | |||||
| Power Factor | 0.8 | |||||
| DC Voltage | 12V | |||||
| DC Current | 8.3A | |||||
| Fuel Tank Capacity | 7L | |||||
| Noise (7m) | 65 dB | |||||
| Engine | Suitable Temperature Range | -20℃~40℃ | ||||
| Type | Forced Air Cooled, 1 Cylinder, 4 Stroke, OHV | |||||
| Displacement | 149cc | |||||
| Ignition system | T.D.I | |||||
| Recommend Fuel | Unleaded Gasonlie | |||||
| Oil Capacity | 0.45L | |||||
| Standard Features | Continous Operating Hour | 6 Hours | ||||
| Auto Voltage Adjustor | √ Yes | |||||
| Oil Alert System | √ Yes | |||||
| DC Protector | √ Yes | |||||
| Dimensions | Starting System | Recoil Starter | ||||
| Length | 545mm | |||||
| Width | 290mm | |||||
| Height | 500mm | |||||
| Net Weight | 28 kg | |||||
| Standard function | Fuel Gauge | √ | ||||
| Voltmeter | × | |||||
| Automatic Voltage Regulato | √ | |||||
| Oil Full or Empty Alarm System | √ | |||||
| Circuit Breaker Fusion | √ | |||||
| Circuit Protector | √ | |||||
| Parallel Connection Box | √ | |||||
| Digital Display | √ | |||||

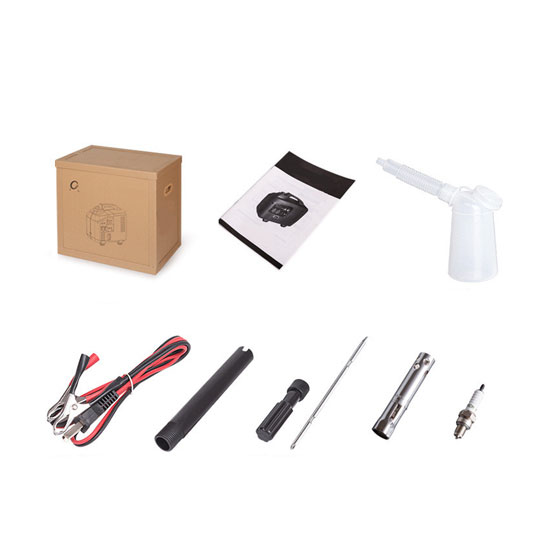

Accessories Packaging
- Carton Packaging
- User Manual
- Oil Filling Pot
- DC Lead
- Oil Casing
- Repair Screwdriver
- Spark Plug Copper Sleeve
- Spark Plug
Operational Precautions
- Please read the instructions carefully before use to prevent injury.
- Please run the generator in a well ventilated place.
- Do not touch while the generator is running and when it is just stopped.
- Please do not connect the wires on the socket, and use the dedicated cable to run in parallel and connect, otherwise it may cause an electric shock.
Features
Maintenance Schedule
Note: Please perform repairs within the specified month or hour, and choose one of the month and hour.
| Item | Regular maintenance time (1) | Every time you use | Every month/20 hours | Every three months/50 hours | Every six months/100 hours | Annual/300 hours |
| Motor Oil | Check | √ | ||||
| Replace | √ | |||||
| Air Filter | Check | √ | ||||
| Clean | √ (2) | |||||
| Muffler Fire Net | Check | √ | ||||
| Clean | √ | |||||
| Spark Plug | Clean-Adjust | √ | ||||
| Fuel Precipitation Cup | Clean | √ | ||||
| Valve Clearance | Clean-Adjust | √ (3) | ||||
| Fuel Tank and Filter | Clean | √ (3) | ||||
| Oil Road | Check | Every two years, if necessary, please (+3) | ||||
Note:
- Please at the interval of normal maintenance.
- Use in areas with serious pollution, please perform frequent repairs.
- The above regular maintenance date is calculated according to the ambient temperature of 25 ° C. If the ambient temperature exceeds 30 ° C, please reduce the load power of the engine or shorten the time interval for replacing the oil. (Both can choose one of the operations)
Tips: How does an inverter generator operate?
- Power generation process
Energy conversion: The generator part of the inverter generator drives the rotor to rotate through mechanical energy (such as gasoline, diesel, wind or solar energy, etc.).
Electromagnetic induction: The rotation of the rotor generates an induced electromotive force in the stator, which in turn generates electrical energy. This electrical energy may be a direct current (DC) or alternating current that has been preliminarily rectified but still contains certain harmonics. - Inversion process
DC input: The inverter receives direct current or preliminarily rectified alternating current from the generator as input.
Switch tube control: The inverter contains a series of semiconductor switch tubes (such as IGBT, MOSFET, etc.), which control the flow and form of electrical energy through rapid switching.
Electric energy conversion: By controlling the on-off frequency and phase of the switch tube, the inverter converts the input DC into alternating current with a specific frequency, amplitude and waveform. In this process, the inverter may also contain a filter circuit to filter out harmonics and noise in the output current and improve the quality of power. - Output and protection
Stable output: The inverter generator ultimately outputs stable, pure AC power, which can meet the needs of various electrical equipment.
Protection mechanism: In order to ensure the safe operation of the equipment, the inverter generator usually also contains a variety of protection circuits, such as overcurrent protection, overvoltage protection, undervoltage protection, etc. These protection circuits can cut off the power supply in time when the equipment is abnormal, preventing equipment damage or accidents.
