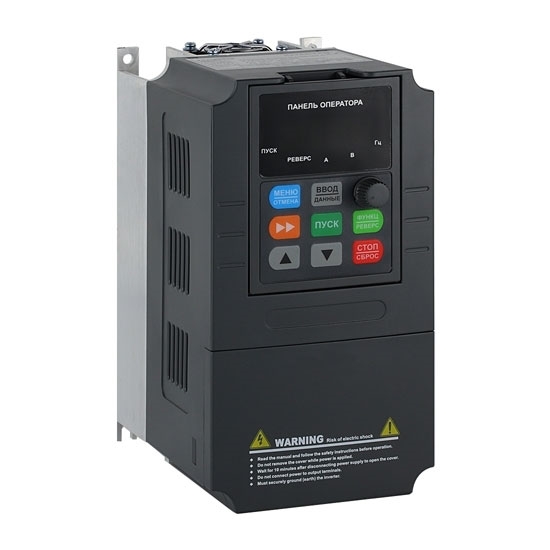

2 Hp (1.5 KW) Single Phase Output VFD
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-G87
- Weight: 1.00
- SKU: HZTOHZ-G87
2 hp (1.5 kW) single phase VFD, single-phase 220v, 230v, 240v 50Hz/60Hz input, single phase 0-220v output.
GoHz single phase output VFDs work for both L-N-G motors and split phase (L1-L2, +N, G) motors.
Specification:
| Basics | Model | GK3000-1S0015 |
| Capacity | 2 hp (1.5 kW) | |
| Shipping weight | 1.2 kg | |
| Dimension | 124.8*78*148.4 mm | |
| I/O Feature | Rated current | 9.6 A |
| Input voltage | single phase AC 220V, 230v, 240v ±15% | |
| Input frequency | 47~63Hz | |
| Output voltage | 0～rated input voltage | |
| Output frequency | V/f control: 0~500Hz | |
| Over load capacity | 150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s | |
| Control Features | Control mode | V/f control |
| Operation command mode | Keypad control, Terminal control, Serial communication control | |
| Frequency setting mode | Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes. | |
| Starting torque | 1 Hz/150% | |
| Speed adjustment range | 1:50 | |
| Carrier frequency | 1.0-16.0kHz, automatically adjusted according to temperature and load characteristics | |
| Frequency accuracy | Digital setting: 0.01Hz Analog setting: Maximum frequency * 0.05% | |
| Torque boost | Automatically torque boost; manually torque boost: 0.1%~30.0% | |
| V/f curve | Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square) | |
| Acceleration/deceleration mode | Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s | |
| DC braking | DC braking when starting and stopping DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s | |
| Jog operation | Jog operation frequency: 0.0Hz~maximum frequency Jog acceleration/deceleration time: 0.1s~3600.0s | |
| Simple PLC & multi-step speed operation | GoHz VFD can realize a maximum of 16 segments speed running via the built-in PLC or control terminal. | |
| Built-in PID | Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.) | |
| Automatic voltage regulation | Keep output voltage constant automatically when input voltage fluctuating | |
| Input/output terminals | Input terminals | Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI: AI1: 0～10V or 0/4～20mA A12: 0～10V or 0/4～20mA |
| Output terminals | 1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay output 2 analog output: 0/4~20mA or 0~10V | |
| Communication terminals | Offer RS485 communication interface, support MODBUS-RTU communication protocol | |
| Human machine interface | LED display | Display frequency setting, output frequency, output voltage, output current, etc. |
| Multifunction key | QUICK/JOG key, can be used as multifunction key | |
| Environment | Ambient temperature | -10℃～40℃, derated 4% when the temperature rise by every 1℃ (40℃～50℃). |
| Humidity | 90%RH or less (non-condensing) | |
| Altitude | ≤1000M: Output rated power, ＞1000M: Output derated | |
| Storage temperature | -20℃～60℃ |
Note: The single phase motor should Not be adjusted to run based on a lower frequency than 80% of its rated frequency for along time, otherwise the motor may fail.
Single phase induction motor has specific wiring requirements in connecting with GoHz single phase VFD, to enable your single phase motor running properly, please follow below instructions step by step:

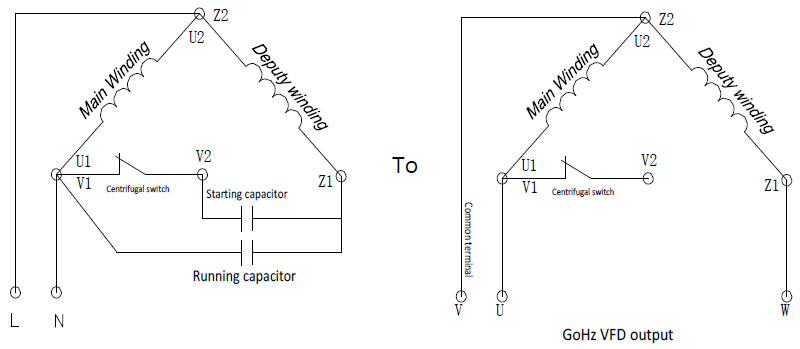

Wiring instruction of removing motor capacitor
Remove capacitor of the single phase motor, connect the common terminal Z2/U2 (single phase motor has two windings) to the VFD's V phase, connect the other two windings U1/V1 & Z1 to the U & W phase of the VFD output terminals.
Power on the VFD, set P9-13=0, run the VFD and observe the current. If the current is too high, stop the VFD, set P0-15=10, P1-02=160, and run again. If the current still too high, stop the VFD and switch the motor connection of U & W phase.

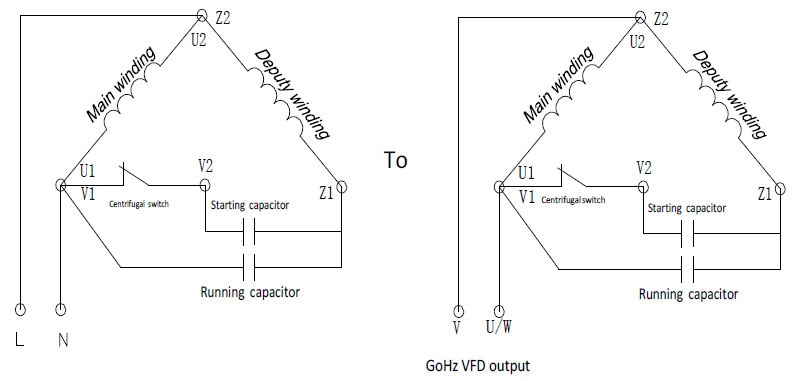

Wiring instruction of keeping motor capacitor
Connect single phase motor input lines (L, N) to the VFD's (V, U).
Power on the VFD, set P9-13=0, run the VFD and observe the current. If the current is too high, stop the VFD, set P0-15=10, P1-02=160, and run again. If the current still too high, stop the VFD and switch the VFD's U phase to W phase.
Download GoHz single phase motor wiring instructions (pdf).
