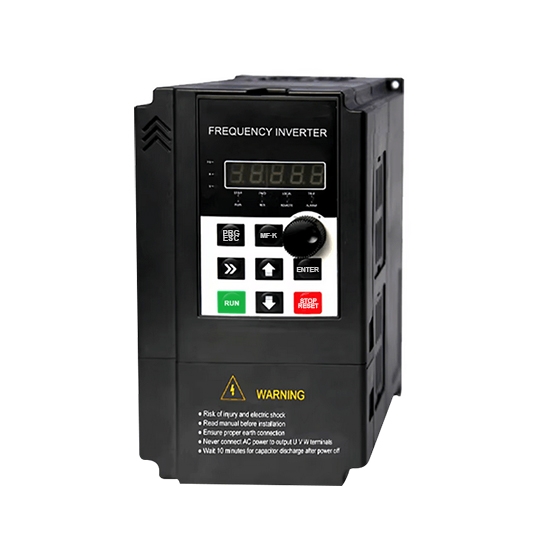

2.2kw Frequency Inverter, Single Phase 120V Input, 1ph/3ph 220V Output
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: GK3000-SP1S1-2d2
- Weight: 1.00
- SKU: GK3000-SP1S1-2d2
3 hp frequency drive inverter for sale, 120v single phase input, 1ph/3ph output, designed for 120v power supply, which drives single phase and three phase AC motor. 2.2kw variable frequency inverter works at (–10℃, 40℃), input frequency reach 50Hz/60Hz. It is usually used for new power generation, industrial manufacture, and home appliances.
Feature
- The variable frequency inverter has an MPPT algorithm that can quickly track the maximum power point of the photovoltaic cell, with an efficiency of >99%.
- The frequency drive inverter runs automatically around the clock, and can also be completed manually or automatically, realizing "sunrise work, sunset sleep".
- Come with 35 protection functions, a variable frequency drive inverter has automatic short circuit detection after power-on, automatic sleep function, pump dry pump protection, low-frequency protection, overload protection, overcurrent protection, overvoltage protection, undervoltage protection, etc.
- With remote control, the variable frequency drive inverter supports RS232/RS485 protocol, terminal control, and analog control.
Details

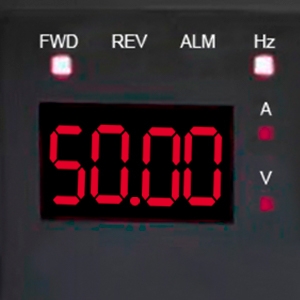

Digital Display
The electronic screen of the 120v input frequency drive inverter displays clear fonts. The indicators of the 3 hp variable frequency drive inverter will display the frequency inverter operating conditions. It can monitor real-time frequency inverter data changes, and improve safety performance.

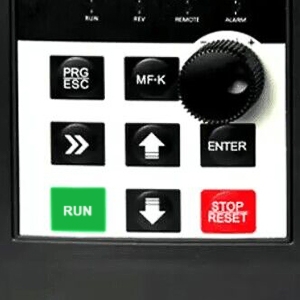

Multi-function Button
Equipped with a multi-function keyboard, the 3 hp frequency inverter has menu/exit, forward, up/down keys, stop/reset, etc. The functional keys of the variable drive frequency inverters are very convenient for adjusting the 2.2kw operating variable frequency drive inverter parameters and operating status at any time.

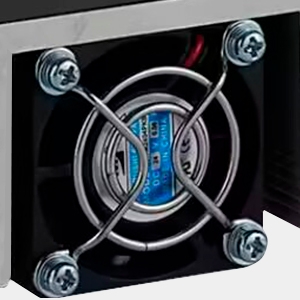

Cooling Fan
The intelligent cooling fan installed in the frequency inverter 120v input introduces cooling air into the 2.2kw frequency drive inverter, reducing the temperature of the components, protecting the devices from damage, and prolonging the frequency inverter's service life.
Applications
New Energy Power Generation
Solar Power Generation
Home Appliances
Office Equipment
| Basics | Model | EM15-SP1S1-2d2 |
| Capacity | 2.2 kW (3 hp) | |
| Shipping weight | 3 kg | |
| Dimension (W x H x D) | 120*205*166 mm | |
| I/O Feature | Rated current | 10 A |
| Input voltage | 1 phase 120V AC ±15% (Set FE-00=0) | |
| Input frequency | 50Hz/60Hz | |
| Output voltage | 1 phase or 3 phase 220V AC ±15% | |
| Output frequency | 0~320Hz (SFC) | |
| Control Feature | Control mode | V/F control; vector control |
| Communication | Offer RS485 communication interface, support MODBUS-RTU communication protocol | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; | |
| Analog setting: max frequency x± 0.2% | ||
| Frequency resolution | Analog setting: 0.1% of max frequency; | |
| Digital setting: 0.01Hz | ||
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | smaller than 95%RH, non-condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Vibration | Less than 5.9 m/s2 (0.6 g) | |
| Cooling | forced air cooling | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
