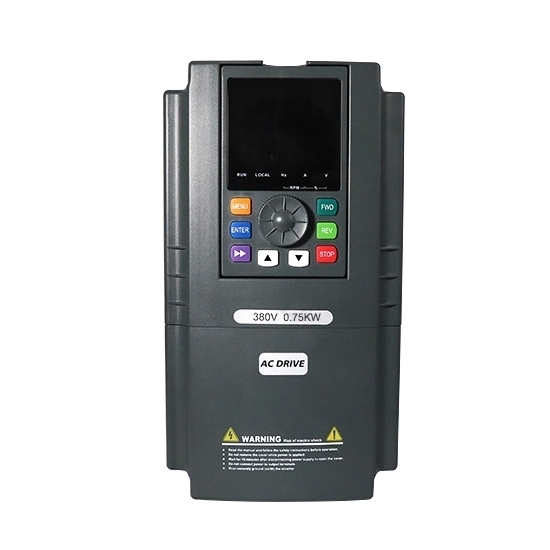

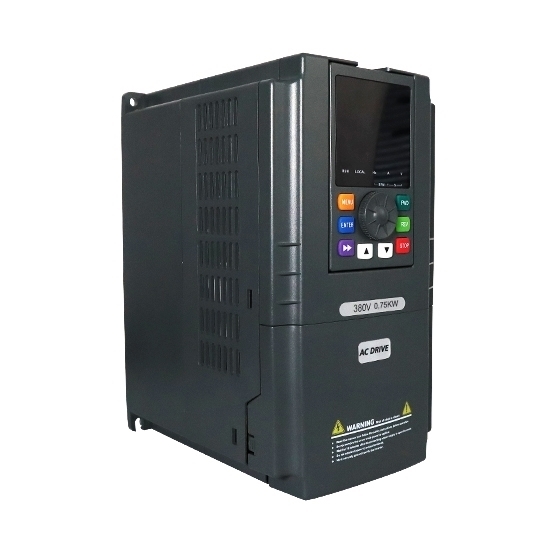

2.2 KW Frequency Inverter, 3 Phase 208V, 380V, 480V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
2.2 KW Frequency Inverter, 3 Phase 208V, 380V, 480V
from
$280.48
Ex Tax: $280.48
- Stock: In Stock
- Model: GK3000-4T0022G
- Weight: 1.00
- SKU: GK3000-4T0022G
High precision 3 hp vfd inverter 3 phrase with rated current 5.1A at 380V ~ 480V, 9A at 220V ~ 240V, works at (–10℃, 40℃). IP 20 enclosure protection, sensorless vector control mode. Widely used in transformers, electronic ballasts, AC fans, uninterruptible power systems, chargers, relays, compressors, motors, etc.
Feature
- The 3 phase inverter can control the speed of the motor by changing the frequency.
- Using a frequency inverter can reduce energy consumption and save costs. It can automatically detect the load current and adjust the output voltage to achieve energy-saving effects.
- A variable frequency inverter equipped with a cooling fan can maintain a suitable internal operating temperature. The electronic screen can display parameter changes in real time, making it easy to detect the working condition of the vfd inverter 3 phase.
- RS485 communication interface, IP20 shell protection, impact resistance, and high-temperature resistance.
Details
Multiple Function Keyboard
The multiple-function keyboard of the 2.2kw frequency inverter controls the operation of the variable frequency drive inverter, such as start, stop, and acceleration. The user can press the corresponding button to make the 2.2 kw inverter work according to the set inverter parameters or control the machine's operating speed by adjusting the output frequency to meet actual needs.
Electronic Screen
The electronic screen of the 2.2 kw frequency drive inverter is a key component in the control system, providing users with an intuitive and real-time information display. The electronic screen can monitor the operating status of the variable frequency drive inverter in real-time, including input and output voltage, and current waveform, which helps to detect abnormal conditions in time.
Rugged Casing
The 2.2 kw frequency inverter's rugged casing plays multiple roles in its design. It is not only about protecting the circuits and electronic components inside the device but also about the safety, stability, and reliability of the device. The 3 phase variable frequency drive not only protects the internal circuits and components but also provides safety protection.
Applications
Car Manufacturer
Ship Operation
Energy Generation
Building Construction
| Basics | Model | GK3000-4T0022G/GK3000-2T0022G |
| Capacity | 2.2 kW (3 hp) | |
| Shipping weight | 3 kg | |
| Dimension | 230*118*153 mm | |
| I/O Feature | Rated current | 5.1A at 380V ~ 480V, 9A at 220V ~ 240V |
| Input voltage | 3 phase 220V /380V /480V AC ±15% (Optional) | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F control; Sensorless vector control; |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running: 5.9m/s2 (0.6g); Transportation: 15m/s2 (1.5g) | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
