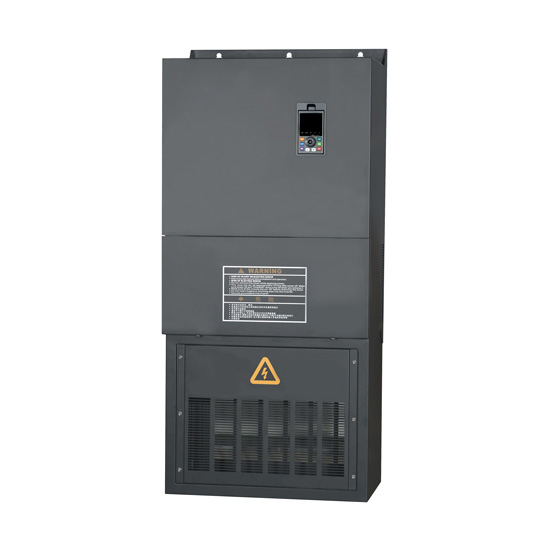

160 KW Frequency Inverter, 3 Phase 240V, 400V, 480V
from
$6,979.36
Ex Tax: $6,979.36
- Stock: In Stock
- Model: GK3000-4T1600G
- Weight: 1.00
- SKU: GK3000-4T1600G
160 kW 3 phase variable frequency drive with V/F control, RS485 communication mode, and IP20 protection, can work at (–10℃, 40℃). Three-phase inverters usually have protection functions such as overload, overvoltage, undervoltage, and short circuit to ensure the safe operation of equipment and systems.
Feature
- The three phase inverter with IP 20 protection, processes good performance including overheating protection, overload protection, and overcurrent protection. Built-in interior PID controller is convenient for making a closed-loop system.
- Come with RS485 communication mode, the 160 kW frequency drive inverter's start torque reaches 150% of rating torque at 1 Hz.
- The three phase frequency inverter can adjust the output voltage according to load requirements to ensure the stability and safety of equipment operation.
Details
Multiple Function Keyboard
The multiple-function keyboard of 200 hp variable frequency inverters controls the operation of the 3 phase inverter, such as start, stop, and acceleration. The customer can press the buttons to make the 3 phase inverter work according to set the variable frequency inverter parameters or control the frequency inverter machine's operating speed.
Electronic Screen
The electronic screen of the 160kw frequency inverter is a key component in the three phase inverter control system, providing users with an intuitive and real-time information display. The digital screen can monitor the operating status of the frequency inverter in real-time, including input and output voltage, frequency, and current waveform, which helps to detect abnormal conditions in time.
Rugged Casing
The 3 phase variable frequency drive inverter's rugged casing plays multiple roles in its design. It is not only about protecting the circuits and internal components inside the device but also about the safety, stability, and reliability of the device. The frequency drive inverter not only protects the internal circuits and components but also provides safety protection.
Applications
Car Manufacturer
Ship Operation
Energy Generation
Building Construction
| Basics | Model | GK3000-4T1600G/GK3000-2T1600G |
| Capacity | 160 kW (200 hp) | |
| Shipping weight | 180 kg | |
| Dimension | 1440*600*399 mm | |
| I/O Feature | Rated current | 304A at 380V ~ 480V, 585A at 220V ~ 240V |
| Input voltage | Three phase 240V /420V /480V AC ±15% (Optional) | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | Three phase AC 0~input voltage | |
| Output frequency | 0~1000Hz | |
| Overload capacity | 150 % of rated current for 1 minute, 200 % of rated current for 1 seconds | |
| Control Feature | Control mode | V/F control; Sensorless vector control; |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running: 5.9m/s2 (0.6g); Transportation: 15m/s2 (1.5g) | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
