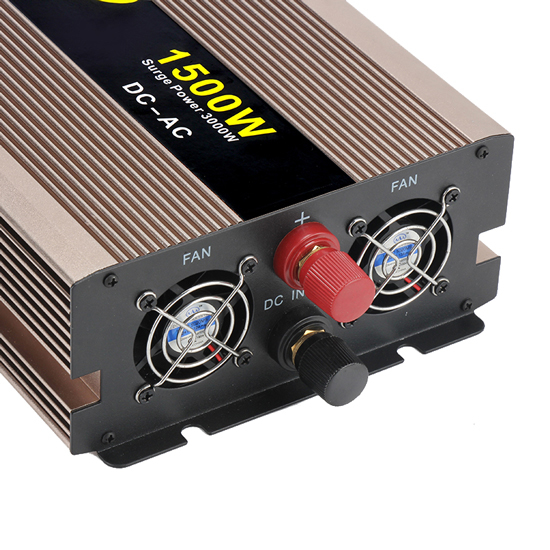

1500 Watt Pure Sine Wave UPS Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product

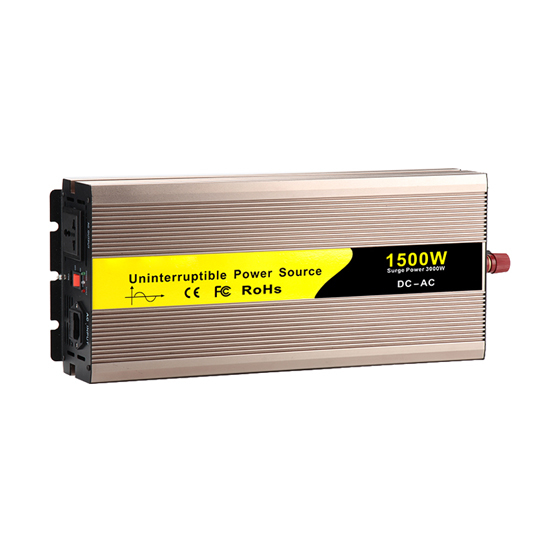

1500 Watt Pure Sine Wave UPS Inverter
from
$361.25
Ex Tax: $361.25
- Stock: In Stock
- Model: HZTOHZ-UPSI-1500
- Weight: 1.00
- SKU: HZTOHZ-UPSI-1500
1500W (1600VA) pure sine wave ups inverter has low voltage protection. Alarm at first, voltage continuously reduce. LED Red light on and shut down. uninterruptible power supply inverter storage temperature between -30 ℃ and 70 ℃. This type of pure sine wave inverter is particularly valuable in environments where stable and reliable power is essential for optimal performance and longevity of connected devices.
Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.
Features:
- 1600VA ups inverter with pure sine wave output (THD＜3%)
- Built-in 3-stages battery charger, allow to run loads while charging.
- Automatically switch with a ultra-fast switching time.
- Soft-start technology.
- High efficiency-converts the battery’s available power.
- 90% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Optional crocodile clip and cigar lighters, easy to connect batteries or vehicles' batteries.
- USB charging port: 5V, ideally qualified for powering your phone, laptop, pc, etc.
- LED indicators for power and protections.
- Switch-mode design in uninterruptible power supply inverter, easy to use.
Details:

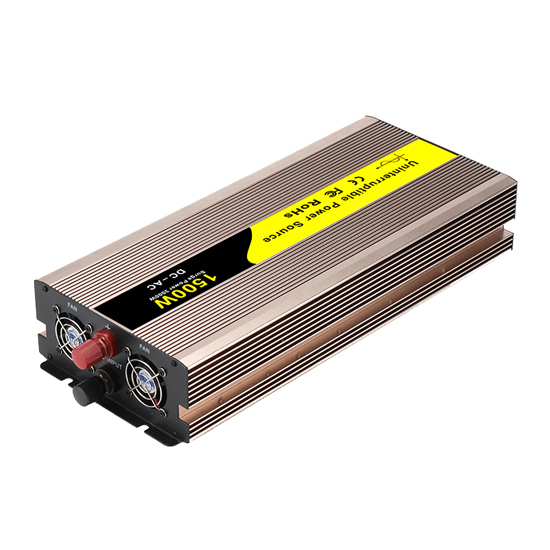

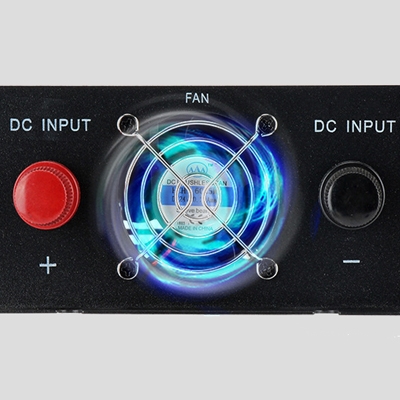

Intelligent Cooling Fan
The automatically activates the fan after the temperature reaches 45℃, effectively reduce 1500W inverter energy consumption.

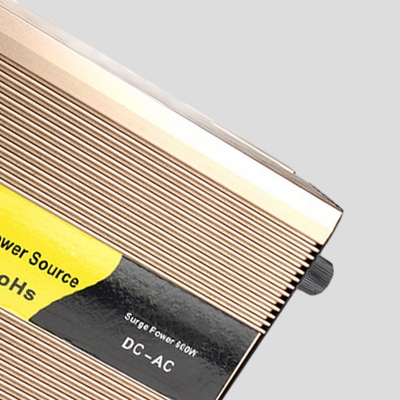

Aluminum Alloy Shell
The surface with aluminum alloy is sandblasted and oxidized for better heat dissipation, and it doesn't discolor easily.
One-touch Switch

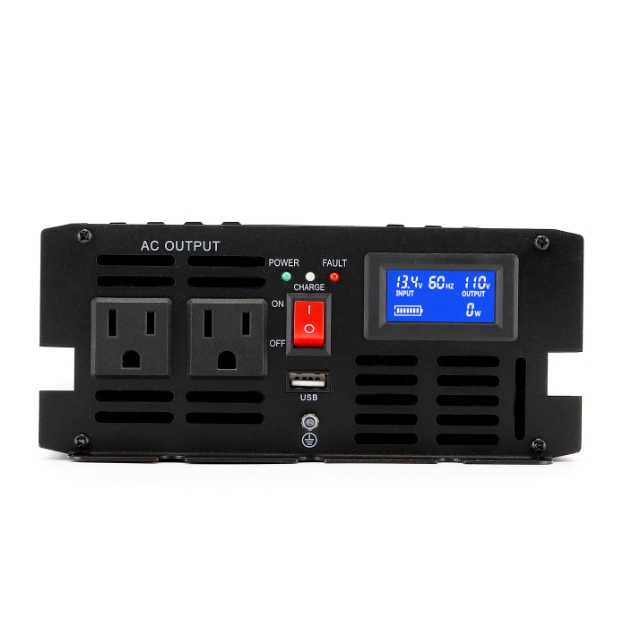

The one-touch power on/off control for efficient management, safer electricity consumption, LCD display also available.
Applications:
Camping
Household Appliance
Office Electricity
Outdoor Work
| Model | HZTOHZ-UPSI-1500 | ||||||
| Rated power | 1500W (1600VA) | ||||||
| Peak power | 3000W | ||||||
| Input voltage | DC 12V | DC 24V | DC 48V (if you want, please contact us) | ||||
| Output voltage | 100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5% | ||||||
| Unload current less than | 0.4A | 0.3A | 0.2A | ||||
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||||||
| Output waveform | Pure Sine Wave | ||||||
| Power switching time | ≤ 9 ms | ||||||
| Phase | 1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G) | ||||||
| Waveform distortion | THD<3% (linear=""> | ||||||
| USB port | QC3.0 | ||||||
| Max.efficiency | 90% | 92% | |||||
| Charging current | 20A | 10A | 5A | ||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | ||||
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | ||||
| Low voltage protection | 10±0.5V | 20±0.5V | 40±1.5V | ||||
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | ||||
| Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V | ||||
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | ||||
| Protect function | Low voltage | Alarm at first, voltage continuously reduce. LED red light on and shut down | |||||
| Over voltage | LED red light on, shut down | ||||||
| Over load | LED red light on, shut down | ||||||
| Over temperature | Alarm at first, temperature continuously rise. LED Red light on and shut down | ||||||
| Short circuit | LED red light on | ||||||
| Input reverse polarity | Fuse burn-out | ||||||
| Working temperature | -10 ℃—+50 ℃ | ||||||
| Storage temperature | -30 ℃—+70 ℃ | ||||||
| Dimension (mm) | 395*180*80 | ||||||
| Packing (mm) | 440*230*130 | ||||||
| Net. / gross weight (g) | 3950/4500 | ||||||
| QTY / Cth | 4Pcs | ||||||
| Meas.Ctn (mm) | 500*300*470 | ||||||
| Warranty | 2 years | ||||||
| Cooling method | Intelligent air cooling | ||||||

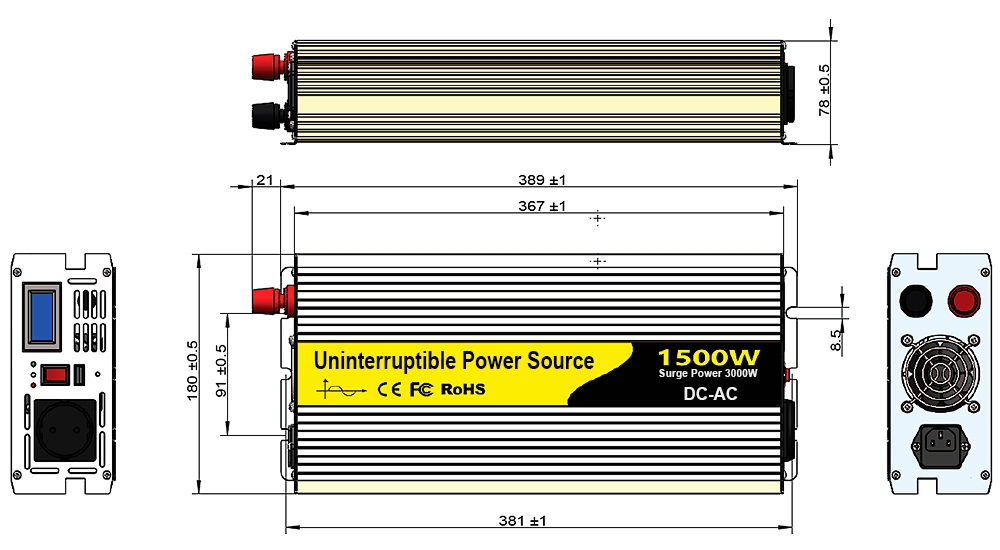

Dimension (Unit: mm)

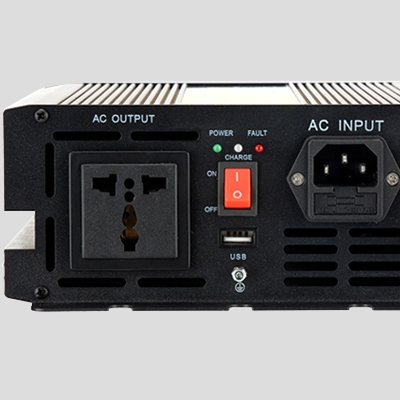

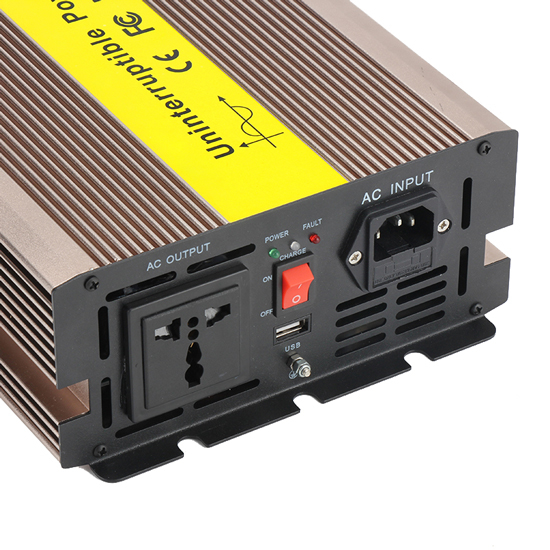

Pure Sine Wave UPS Inverter Output Sockets (Optional)
