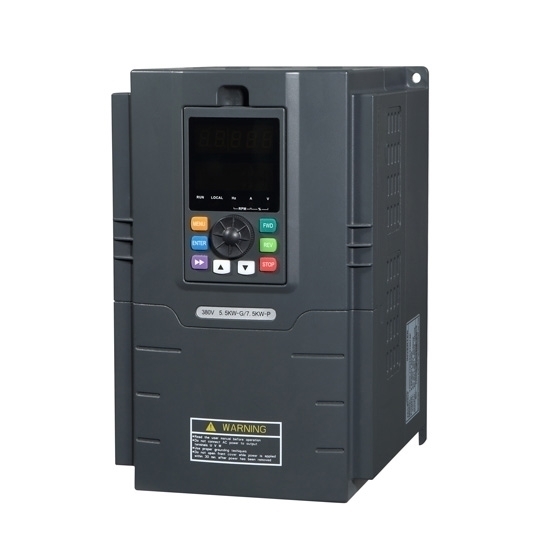

15 KW Frequency Inverter, 3 Phase 230V, 420V, 480V
from
$697.14
Ex Tax: $697.14
- Stock: In Stock
- Model: GK3000-4T0150G
- Weight: 1.00
- SKU: GK3000-4T0150G
15 kW (20 hp) frequency drive inverter input, voltage 3 phase 220V /380V /460V AC ±15% (Optional), and output voltage 3 phase AC 0~input voltage. With RS485 communication, 3 phase inverter has V/F control and sensorless vector control.
Feature
- The host computer (PC/PLC) can monitor the variable frequency inverter in the control system and realize complex control functions such as remote control and fine adjustment.
- The remote control panel can be connected to the variable frequency drive inverter through the RS485 interface. Just plug the remote control panel into the RS485 interface without any parameter settings. The local control panel and remote control panel of the inverter can work at the same time.
- The operation panel and control terminals of the frequency drive inverter can control the start, speed regulation, stop, brake, operation parameter setting, and peripheral equipment of the motor.
Details

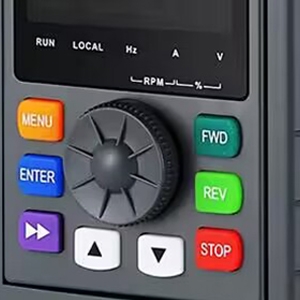

Multiple Function Keyboard
The multiple-function keyboard of frequency inverters control the operation of the 3 phase variable frequency drive inverter, such as start, stop, and acceleration. The users can press the corresponding buttons to make the 15 kw three phase variable frequency drive work according to the set inverter parameters or control the inverter machine's operating speed.

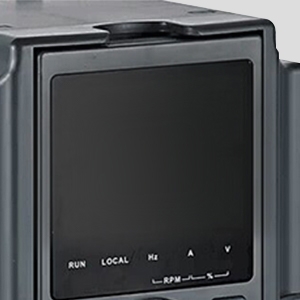

Electronic Screen
The electronic screen of the frequency drive inverter is a key component in the control system, providing users with an intuitive and real-time information display. The electronic screen can monitor the operating status of the 15kw 3 phase variable frequency drive in real-time, including input and output voltage, and current waveform, which helps to detect abnormal conditions in time.

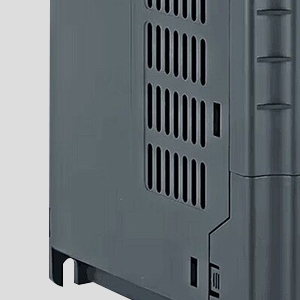

Rugged Casing
The 20hp variable frequency inverter's rugged casing plays multiple roles in its design. It is not only about protecting the circuits and internal components inside the device but also about the safety, stability, and reliability of the device. The 3 phase variable frequency drive not only protects the internal circuits and components but also provides safety protection.
Applications

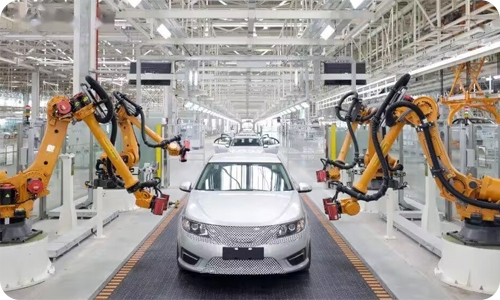

Car Manufacturer
Ship Operation

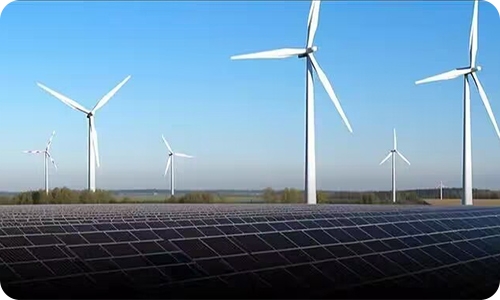

Energy Generation
Building Construction
| Basics | Model | GK3000-4T0150G/ GK3000-2T0150G |
| Capacity | 15 kW (20 hp) | |
| Shipping weight | 11 kg | |
| Dimension | 339*231*214 mm | |
| I/O Feature | Rated current | 32A at 380V ~ 480V, 60A at 220V ~ 240V |
| Input voltage | 3 phase 220V /380V /460V AC ±15% (Optional) | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F control; Sensorless vector control; |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running:<5.9m 2="" (0.6g);=""><15m 2=""> | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
