120V/230V Inverter Data Collector, Wireless 433MHz+WIFI
from
$136.46
Ex Tax: $136.46
- Stock: In Stock
- Model: HZTOHZ-MODEM-433
- Weight: 1.00
- SKU: HZTOHZ-MODEM-433
A data collector that meets your requirements. All WVC inverters can be applied. Modem can monitor 30 inverters at the same time. It has MPTT and high-precision voltage type induction microgrid mode. 120V AC and 230V AC can be selected. It adapts to global frequency / voltage, supports the parallel use of multiple units and can connects mobile APP to monitor and manage Internet of things data with wifi.
Parameter List
 | Model | WIFI-MODEM-433 |
| Input Vlotage range | automatic shift 120/230V | |
| Input frequency range | 50/60Hz | |
| Max Output Power | 10Watt | |
| G.W. | 0.35KG | |
| Size | 160x100x32mm | |
| Communication mode | 433MHz+WIFI | |
| Transmission | 1000M(open range) | |
| Waterpool | IP23 | |
| *One Data Collector can support up to 30 units of micro-Inverters. | ||

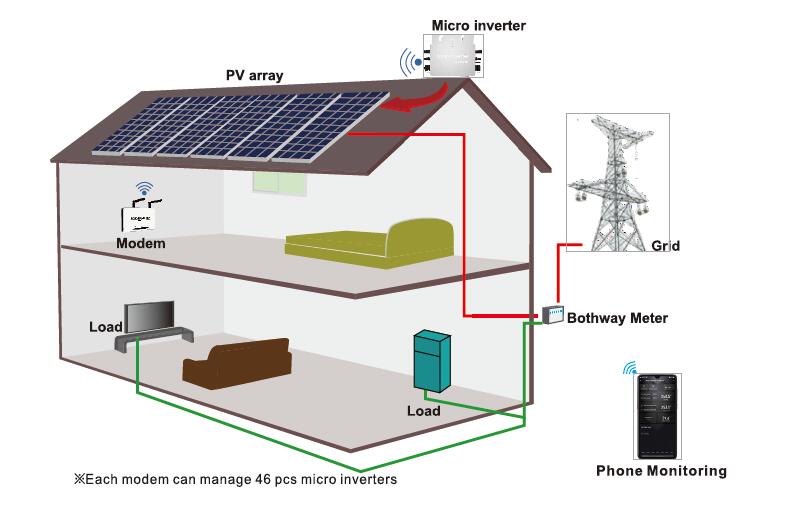

Running mode

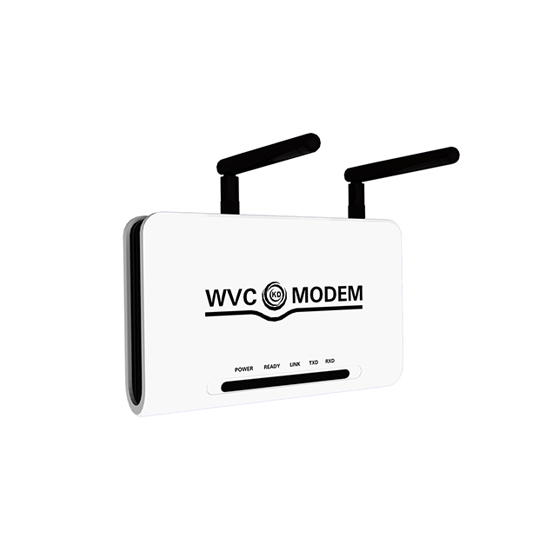

Modem indicator&button

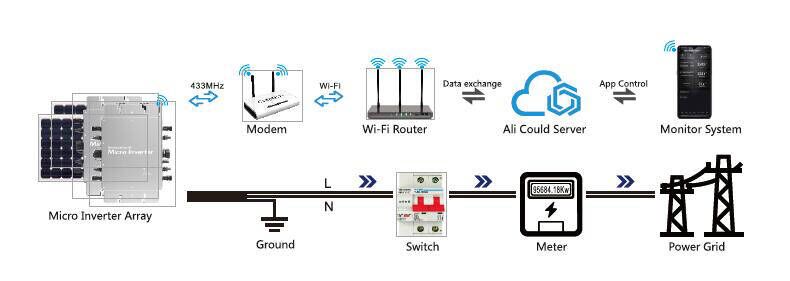

System communication transmission diagram
Tips: Advantages of Data Collect for Inverter
- Ensure data integrity is not lost
- Applicable to WVC series inverter
- Once a problem occurs, send information to the user in real time
- Data can be viewed via the Internet or mobile app anytime, anywhere
- WiFi version, meeting the high-speed transmission of wired network data
- Support remote upgrade and system debugging, and make it easier for operation and maintenance to upgrade remotely
- Timely record the problems of the equipment, and troubleshooting is faster
- The global network has wider coverage, fast transmission speed and stable signal
