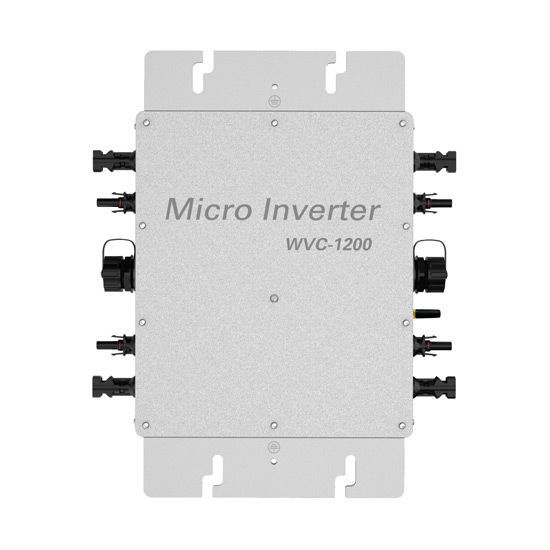

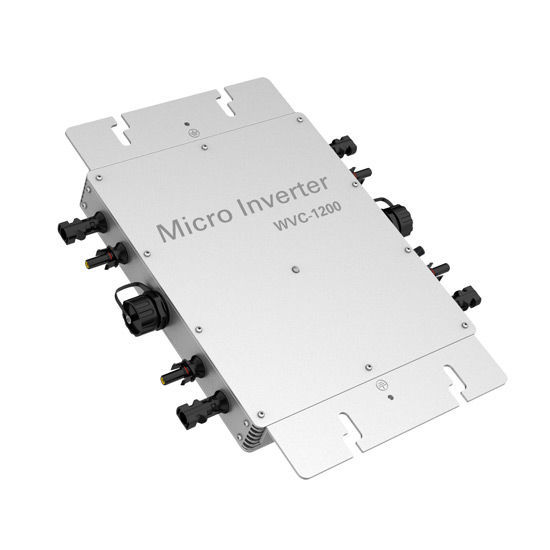

1200 Watt Solar Micro Inverter, Grid-tie Inverter
from
$431.26
Ex Tax: $431.26
- Stock: In Stock
- Model: HZTOHZ-WVC-1200-WiFi
- Weight: 1.00
- SKU: HZTOHZ-WVC-1200-WiFi
IP65 waterproof 1200 watt micro grid tie solar inverter for solar panel system, 24V/48V DC to 120V AC, 24V/48V DC to 230V AC is available, unique circuit design, higher efficiency, more stable. A micro power inverter can improve system monitoring and maintenance. Because each panel has its inverter, it's easier to identify issues at the panel level and address them promptly.
Features:
- Input/output is fully isolated to protect the electrical safety
- Flexible installation, operation, and maintenance costs are low
- Use the wifi communication mode
- High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
- Multiple parallel stacking, digital control system, intelligent monitoring management, and simplified maintenance (user serviceable)
Details:

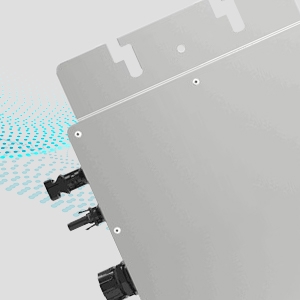

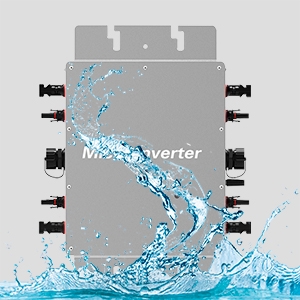

Waterproof Protection
The shell of the 1200W micro inverter is made of pure aluminum alloy with a low resistance copper core. It enhances safety by reducing the risk of electrical hazards, such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.
MPPT
MPPT enhances energy harvest, leading to higher overall system efficiency and increased electricity production. It also improves system reliability by reducing stress on components. Additionally, MPPT allows for more flexible system design, as each panel operates independently, making it easier to expand or modify installations without impacting the overall performance of the MPPT micro inverter.
Power Chip
The micro power inverter is equipped with a high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.
Applications:

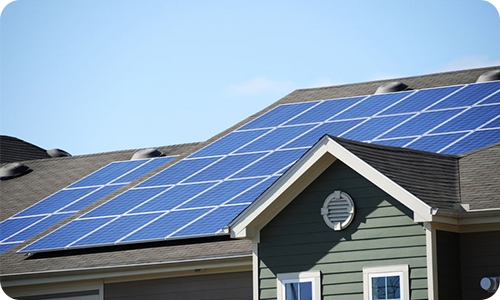

Solar Roof

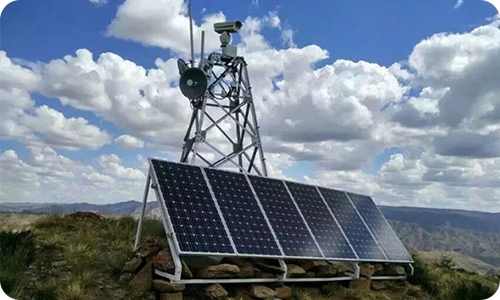

PV Communication Station

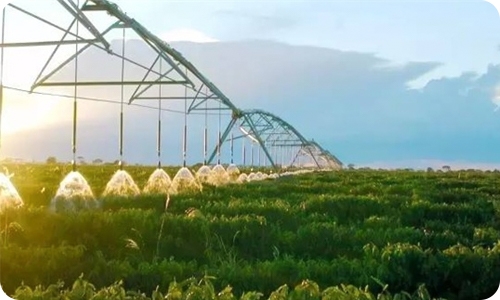

Farming Generation System

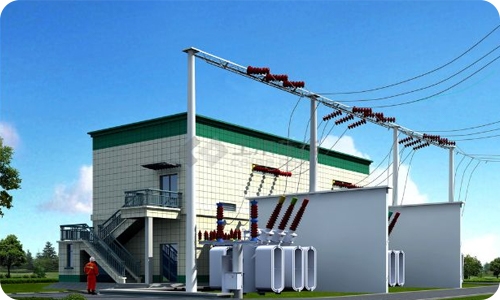

Small Power Station
Model | HZTOHZ-WVC-1200-WiFi | ||||
| Maximum input power | 1400 W | ||||
Output voltage mode | 120/230V Auto switch; 120V/240V Split phase (L1, L2, G) output option contact us | ||||
PV Open circuit voltage | 30-60VOC | ||||
Operating voltage range | 24V/48V DC, range: 22-60V DC | ||||
Starting voltage range | 22-60V DC | ||||
Short-circuit current | 55A | ||||
Maximum working current | 46A | ||||
| Output Parameters | @120V AC | @230V AC | |||
Output peak power | 1400 W | 1400 W | |||
| Rated output power | 1200 W | 1200 W | |||
Output current | 10A | 5.22A | |||
AC voltage range | 80-160V AC | 180-260V AC | |||
AC frequency range | 48-51Hz/58-61Hz | 48-51Hz/58-61Hz | |||
| Power factor | >95% | >95% | |||
Number of branch connections | 3PCS (single-phase) | 6PCS (single-phase) | |||
| Output Efficiency | @120V AC | @230V AC | |||
| Static MPPT efficiency | 99.5% | 99.5% | |||
Max output efficiency | 95% | 95% | |||
Loss of power at night | <> | <> | |||
Total current harmonics | <> | <> | |||
Appearance and technical features | |||||
Temperature range | -40℃ to +65℃ | ||||
Size (L×W×H) | 370mm×300mm×41.6mm | ||||
Net amount | 2.56kg | ||||
Waterproof grade | IP65 NEMA3R | ||||
Heat dissipation mode | Self-cooling | ||||
Communication mode | WiFi | ||||
| WIFI Connection | iOS / Android (Monitor power generation, DC input & AC output display, etc.) | ||||
| 433MHz Data Collector | Monitor 30 inverters simultaneously | ||||
| Power transmission mode | Reverse transmission, Load priority | ||||
| Monitoring System | Browser | ||||
| Electromagnetic compatibility | EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1 | ||||
Power grid | EN61000-3-2 EN62109.UL STD.1741 | ||||
Power grid detection | DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A | ||||
| Certificate | CEC, CE, INMETOR, ETL, Patented technology | ||||
| Warranty period | 12 months | ||||
Packing weight | |||||
weight | 3.74 KG | ||||
Size | 430×375×140mm | ||||
