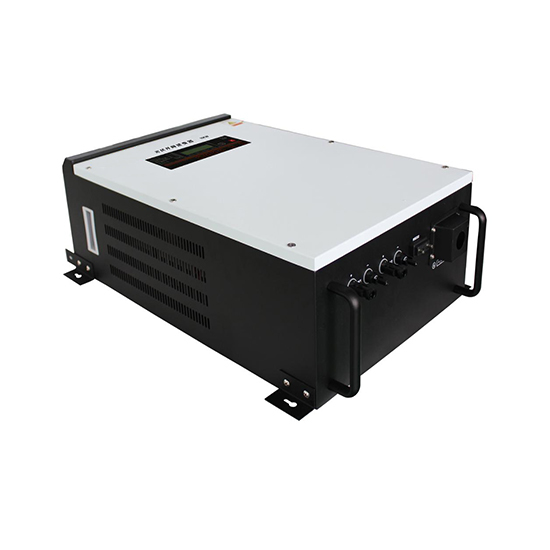

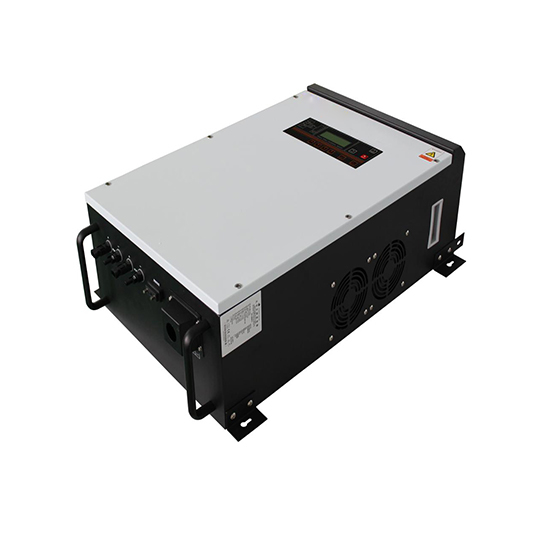

10kW Single Phase Grid Tie Solar Inverter
from
$2,075.65
Ex Tax: $2,075.65
- Stock: In Stock
- Model: HZTOHZ-GTI-TL10000
- Weight: 1.00
- SKU: HZTOHZ-GTI-TL10000
The hot sale on grid tie solar inverter is 10000W high power capacity, max input power to 10900W, pure sine wave output, LCD data, with wide MPPT voltage 180-450V DC and max efficiency up to 99.5%, default single phase 220V/ 230V AC (190~270V) output, 110V is optional. 10 kw on grid inverter includes maximum power point tracking (MPPT) technology to optimize the power output from the solar panels under varying conditions.
Features:
- LCD is convenient for the user to monitor the main parameters of grid tie inverter.
- On grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
- Strong IP65 protection and a completely sealed cover suitable for harsh environments.
- On grid inverter adopts no isolation transformer H6 full-bridge configuration, with the highest efficiency reaching 97%.
- Multiple inverters can be operated in parallel and support various communication modes.
- Advanced MPPT tracking technology and wide MPPT voltage range, which optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.
Details:

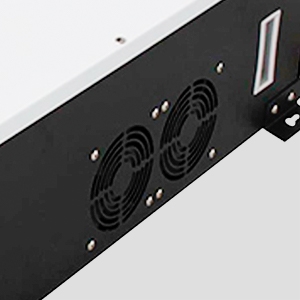

Cooling Fan
It enhances heat dissipation, ensuring the grid tie solar inverter operates within optimal temperature ranges, which prolongs its lifespan. Effective cooling prevents thermal shutdowns and maintains consistent performance, especially under heavy load or high ambient temperatures. Additionally, it reduces the risk of overheating-related damage to sensitive components, thus lowering maintenance costs and downtime.

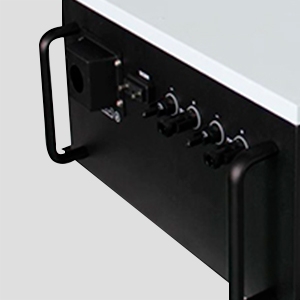

RS232 Interface
It provides a reliable and straightforward method for communication and data exchange with external devices like computers and monitoring systems. This interface supports long-distance communication and is cost-effective due to its widespread use and availability. RS232 allows for easy integration with various software for system diagnostics, real-time monitoring, and performance logging of solar grid connected inverter.

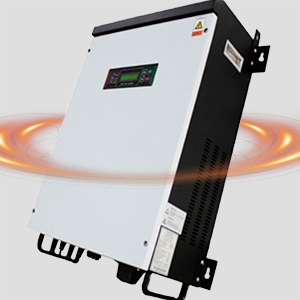

MPPT Technology
This ensures maximum efficiency and energy yield, even under varying weather conditions. MPPT enhances overall 10 kW solar on grid inverter system performance, leading to higher electricity production. It also helps maintain grid stability and reduce losses associated with power conversion, extending the lifespan of PV systems by preventing overloading and underutilization of the panels.
Applications:

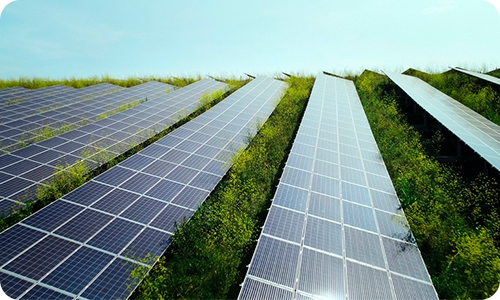

Solar Farm
Remote Location

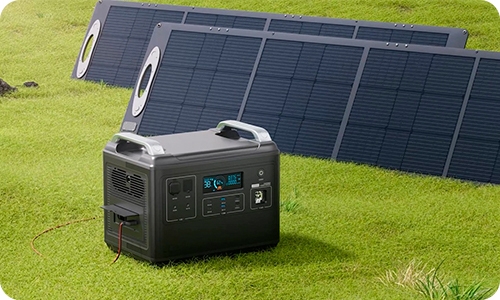

Battery Power
Rural Electrification
| MODEL | HZTOHZ-GTI-TL10000 | |||||
| DC INPUT | Max. DC Input Power | 10900 watt | ||||
| Max. DC Input Voltage | 500V DC | |||||
| Max. DC Input Current | 50A | |||||
| MPPT Tracking Voltage Range | 180-500V | |||||
| MPPT Tracking Number / Each Input String Number | 1/2 | |||||
| Power ON / OFF Voltage | 200V / 100V | |||||
| Input Terminal | MC4 | |||||
| AC OUTPUT | Power | 10kW | ||||
| Output Range | Single phase AC 190~270V Adjustable according to different countries and regions' requirements. | |||||
| Rated Voltage | L+N+PE 220V/ 230V/ 240V AC | |||||
| Frequency | 50Hz / 60Hz | |||||
| Phase | Single phase (L1+L2) / Spilt phase (L1, L2+N), L1+L2=240V AC, L1+N=120V AC, L2+N=120VAC | |||||
| Power Factor | 1 | |||||
| Maximum Current | 45A | |||||
| Current THD | At rated power and in the sine wave ＜3.5% | |||||
| Max. Efficiency | 97% | |||||
| MPPT Efficiency | 99.5% | |||||
| Output Terminal | Connect terminals | |||||
| STRUCTURE | Protection Degree | IP20 | ||||
| Cooling Method | Cooling fan | |||||
| Topology | No transformer | |||||
| Noise | <> | |||||
| Data Interfaces | RS 485C / RS232 (Standard) / WiFi Module (Optional) | |||||
| Isolation Type | Non-isolated | |||||
| Standby Power Consumption | 0W | |||||
| Display | LCD | |||||
| DC Switch | Integration | |||||
| AC Switch | Integration | |||||
| Protection Functions | DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi | |||||
| ENVIRONMENT | Operation Temperature | Air Flow, -10℃~40℃ | ||||
| Storage Temperature | -20℃~60℃ | |||||
| Relative Humidity | 0~100% | |||||
| Altitude | 2000m, max 3000m | |||||
| OTHERS | Size (W*H*D) | The size of the inverter is different due to different specifications, please contact us to confirm. | ||||
| Weight | Single phase version: 64kg, split phase version: 128kg | |||||
| Certificate | CE / G83 / IEC / TUV / SAA | |||||
| Warranty | 5 years | |||||
