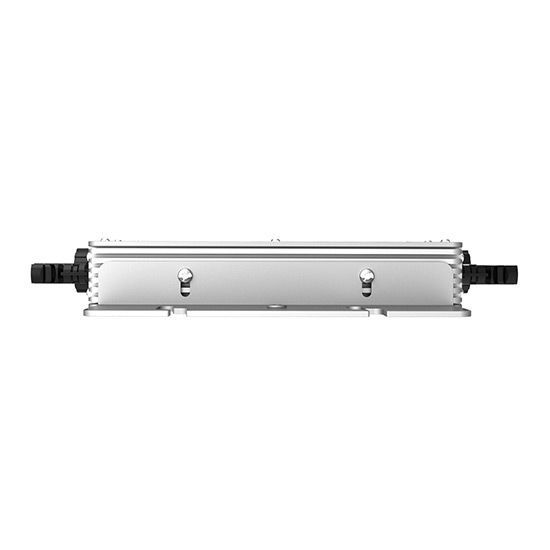

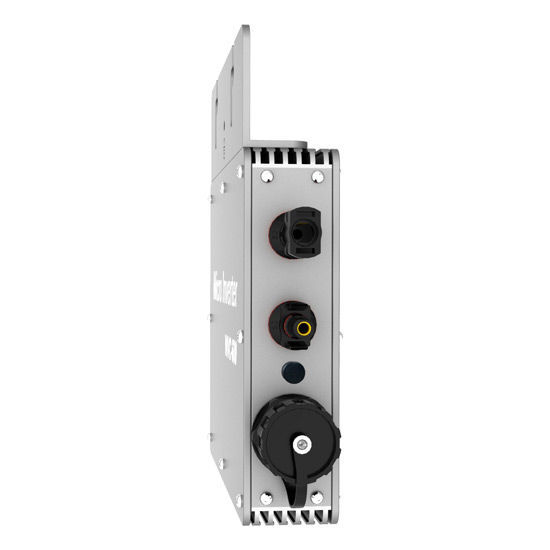

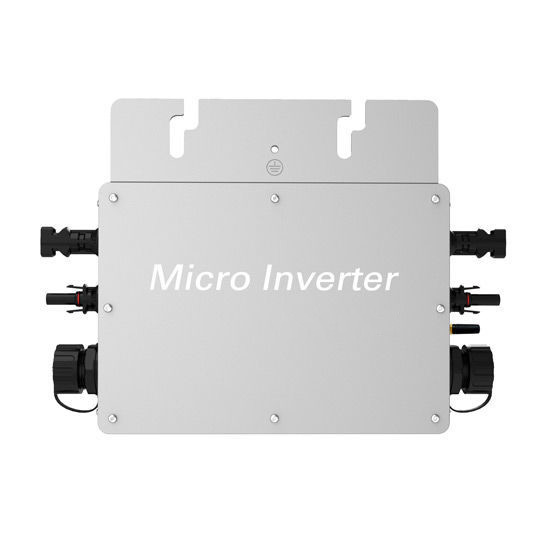

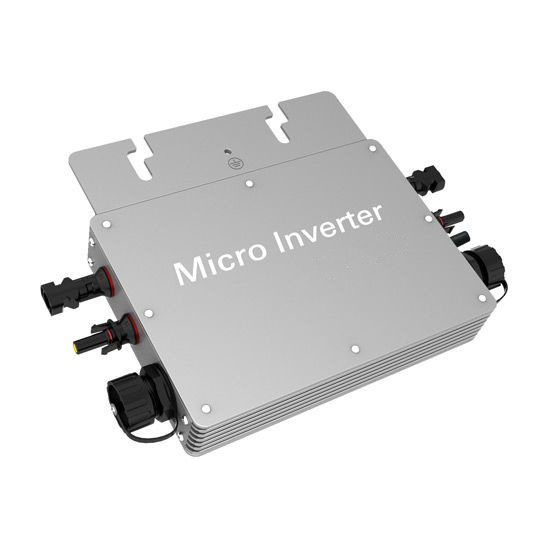

700 Watt Solar Micro Inverter, Grid-tie Inverter
from
$285.65
Ex Tax: $285.65
- Stock: In Stock
- Model: HZTOHZ-WVC-700-WiFi
- Weight: 1.00
- SKU: HZTOHZ-WVC-700-WiFi
The low-price solar mini on-grid inverter has a 700W power capacity and transfers 24-volt or 48-volt DC to 120-volt/230-volt AC. Input/output is fully isolated to protect electrial safety and uses an IP65 waterproof streamingline design to effectively prevent rainwater. Such microinverter is commonly used in residential and small-scale commercial solar installation.
Features:
- Input/output is fully isolated to protect the electrical safety
- Flexible installation, operation, and maintenance costs are low
- Use the wireless 433MHz communication mode
- High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
- Multiple parallel stacking, digital control system, intelligent monitoring management, and simplified maintenance (user serviceable)
Details:

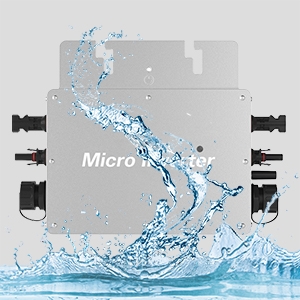

Waterproof Protection
The shell of the pv micro inverter is made of pure aluminum alloy with a low resistance copper core. It enhances safety by reducing the risk of electrical hazards, such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.

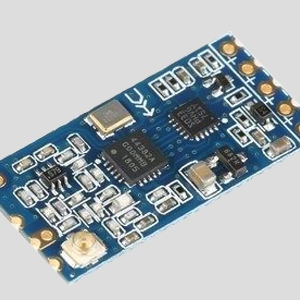

Communication Mode
433MHz communication code in 700W smart micro inverter offers advantages like longer range, lower power consumption, and reduced interference. It ensures reliable communication between the micro inverter and the monitoring system, enhancing efficiency and performance in a distributed energy system.
Power Chip
The 120V micro inverter is equipped with a high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.
Applications:

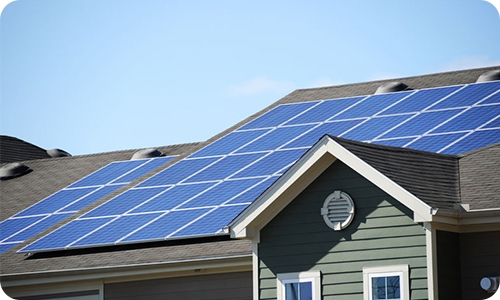

Solar Roof

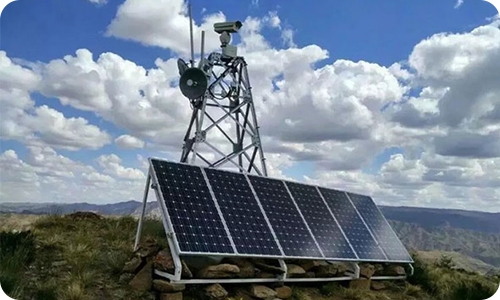

PV Communication Station
Farming Generation System
Small Power Station
Model | HZTOHZ-WVC-700-WiFi | ||||
| Maximum input power | 800W | ||||
Output voltage mode | 120/230V Auto switch | ||||
PV Open circuit voltage | 30-60VOC | ||||
Operating voltage range | 24V/ 48V DC, range: 22-60V DC | ||||
Starting voltage range | 22-60V DC, the PV panel can be connected to the ports on both sides of the inverter or only to one side. (It is recommended that the input voltage is above 36V). | ||||
Short-circuit current | 32A | ||||
Maximum working current | 26.9A | ||||
| Output Parameters | @120V AC | @230V AC | |||
Output peak power | 800 watt | 800 watt | |||
| Rated output power | 700W | 700W | |||
Output current | 5.9A | 3.05A | |||
AC voltage range | 80-160V AC | 180-260V AC | |||
AC frequency range | 48-51Hz/ 58-61Hz | 48-51Hz/ 58-61Hz | |||
| Power factor | >95% | >95% | |||
Number of branch connections | 5PCS (single-phase) | 10PCS (single-phase) | |||
| Output Efficiency | @120V AC | @230V AC | |||
| Static MPPT efficiency | 99.5% | 99.5% | |||
Max output efficiency | 95% | 97% | |||
Loss of power at night | <> | <> | |||
Total current harmonics | <> | <> | |||
Appearance and technical features | |||||
Temperature range | -40℃ to +65℃ | ||||
Size (L×W×H) | 283mm×200mm×41.6mm | ||||
Net amount | 1.63kg | ||||
Waterproof grade | IP65 | ||||
Heat dissipation mode | Self-cooling | ||||
| Communication mode | WiFi | ||||

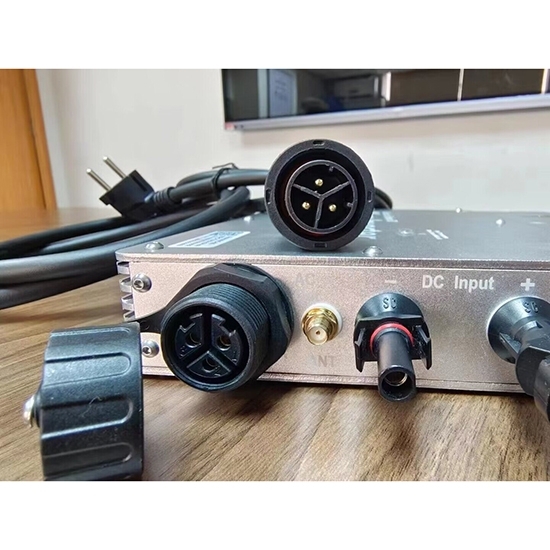

| Connecting cable and plug | Comes standard with a 3m connecting cable and plug (European standard); if you need a longer cable or other size plug, please contact us. | ||||
| WIFI connection | iOS / Android (Monitor power generation, DC input & AC output display, etc.) | ||||
| 433MHz data collector | Monitor 30 inverters simultaneously | ||||
| Power transmission mode | Reverse transfer, load priority | ||||
| Monitoring system | Mobile APP, computer browser | ||||
| Electromagnetic compatibility | EN50081.part1 EN50082.part1 | ||||
Power grid | EN61000-3-2 Safety EN62109 | ||||
Power grid detection | DIN VDE 1026 | ||||
| Certificate | CEC, CE National patent technology | ||||
| Warranty period | 12 months | ||||
Packing weight | |||||
Weight | 2.64 KG | ||||
Size | 342×240×115mm | ||||
