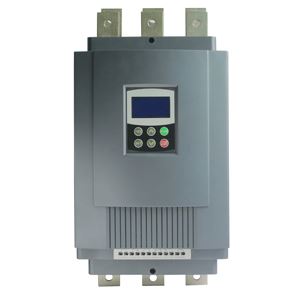

60 Hp (45 KW) Soft Starter, 220v/400v/480v/660v

60 Hp (45 KW) Soft Starter, 220v/400v/480v/660v
60 Hp (45 KW) Soft Starter, 220v/400v/480v/660v
0 reviews • Write a review
from Save -12%
$543.91
$620.00
Ex Tax: $543.91
  • Stock: In Stock
  • Model: HZTOHZ-G47
  • Weight: 1.00
  • SKU: HZTOHZ-G47

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
10 Hp (7.5 KW) Soft Starter, 220v/380v/480v/690v
Quickview
10 Hp (7.5 KW) Soft Starter, 220v/380v/480v/690v
$352.31 $399.00
Ex Tax:$352.31
Add to Cart Add to Wish List Compare this Product
100 Hp (75 KW) Soft Starter, 230v/420v/480v/690v
Quickview
100 Hp (75 KW) Soft Starter, 230v/420v/480v/690v
$619.62 $699.00
Ex Tax:$619.62
Add to Cart Add to Wish List Compare this Product
125 Hp (90 KW) Soft Starter, 220v/380v/460v/660v
Quickview
125 Hp (90 KW) Soft Starter, 220v/380v/460v/660v
$1,168.43 $1,329.00
Ex Tax:$1,168.43
Add to Cart Add to Wish List Compare this Product
15 Hp (11 KW) Soft Starter, 230v/400v/480v/690v
Quickview
15 Hp (11 KW) Soft Starter, 230v/400v/480v/690v
$367.93 $419.00
Ex Tax:$367.93
Add to Cart Add to Wish List Compare this Product
150 Hp (110 KW) Soft Starter, 230v/400v/460v/660v
Quickview
150 Hp (110 KW) Soft Starter, 230v/400v/460v/660v
$1,219.51 $1,399.00
Ex Tax:$1,219.51
Add to Cart Add to Wish List Compare this Product
180 Hp (132 KW) Soft Starter, 240v/415v/480v/690v
Quickview
180 Hp (132 KW) Soft Starter, 240v/415v/480v/690v
$1,299.31 $1,469.00
Ex Tax:$1,299.31
Add to Cart Add to Wish List Compare this Product
20 Hp (15 KW) Soft Starter, 240v/380v/460v/690v
Quickview
20 Hp (15 KW) Soft Starter, 240v/380v/460v/690v
$389.21 $459.00
Ex Tax:$389.21
Add to Cart Add to Wish List Compare this Product
200 Hp (150 KW) Soft Starter, 220v/420v/480v/690v
Quickview
200 Hp (150 KW) Soft Starter, 220v/420v/480v/690v
$1,379.53 $1,529.00
Ex Tax:$1,379.53
Add to Cart Add to Wish List Compare this Product

60 hp soft starter, 45 kW three phase 220v, 400v, 480v, 660v AC motor starter.

ModelGS2-045 (220v), GS3-045 (400v), GS4-045 (480v), GS6-045 (660v).
Capacity60 hp (45 kw)
Current90 amps at 400/480v, 180 amps at 220v, 55 amps at 690v
Weight5 kgs
Dimension270*146*160 mm
InputVoltage3 phase 220v, 400v, 480v, 660v AC
Frequency50Hz/ 60Hz
Adaptive MotorSquirrel-cage three-phase asynchronous motor
Starting TimesIt is recommended not to exceed 20 times per hour.
CommunicationDB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode(1) Operation panel control. (2) Operation panel + external control. (3) External control. (4) External control + COM control. (5) Operation panel + external + COM control. (6) Operation panel + COM control. (7) COM control. (8) No start or stop operation.
Start Mode(1) Current-limiting to start. (2) Voltage ramp to start. (3) Torque control + current-limiting to start. (4) Torque control + voltage ramp to start. (5) Current ramp to start. (6) Voltage current-limiting double closed-loop start.
Stop Mode(1) Soft stop. (2) Free stop.
Protective Function(1) Open loop protection for external instantaneous stop terminals. (2) Over-heat protection for soft starter. (3) Protection for too long starting time. (4) Input open phase protection. (5) Output open phase protection. (6) Unbalanced three-phase protection. (7) Starting over current protection. (8) Running overload protection. (9) Under voltage protection for power voltage. (10) Overvoltage protection for power voltage. (11) Protection for fault parameter setting of the soft starter. (12) Load short circuit protection. (13) Auto restart or incorrect wiring protection. (14) Incorrect wiring protection of external control stop terminals.
AmbientPlace to be usedIndoor location with good ventilation free from corrosive gas and conductive dust.
AltitudeBelow 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
Temperature-30 +55 oC
Humidity90%RH without dew condensation.
Vibration<0.5G
StructureEnclosureIP 20
CoolingNatural wind cooling.



Tips: Soft starter for motors powered by generator
It is important when specifying a soft start motor controller that one takes into account the effect on the generator. Use of a soft starter will reduce the starting kilovoltamps (kVA) required of the generator, meaning that one can use a smaller generator than one would with an "across the line" "hard start" induction motor controller. HOWEVER, because of the harmonic currents drawn by the soft start controller, the generator's alternator must be larger than the starting kVA would typically suggest.

The bottom line is that soft starters are good ideas but make sure your generator technicalist knows about them.
