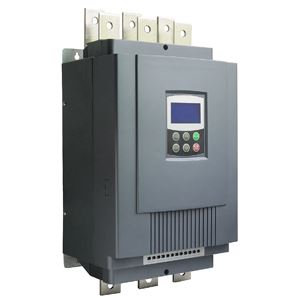

100 Hp (75 KW) Soft Starter, 230v/420v/480v/690v

100 Hp (75 KW) Soft Starter, 230v/420v/480v/690v
100 Hp (75 KW) Soft Starter, 230v/420v/480v/690v
0 reviews • Write a review
from Save -11%
$619.62
$699.00
Ex Tax: $619.62
  • Stock: In Stock
  • Model: HZTOHZ-G49
  • Weight: 1.00
  • SKU: HZTOHZ-G49

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
10 Hp (7.5 KW) Soft Starter, 220v/380v/480v/690v
Quickview
10 Hp (7.5 KW) Soft Starter, 220v/380v/480v/690v
$352.31 $399.00
Ex Tax:$352.31
Add to Cart Add to Wish List Compare this Product
125 Hp (90 KW) Soft Starter, 220v/380v/460v/660v
Quickview
125 Hp (90 KW) Soft Starter, 220v/380v/460v/660v
$1,168.43 $1,329.00
Ex Tax:$1,168.43
Add to Cart Add to Wish List Compare this Product
15 Hp (11 KW) Soft Starter, 230v/400v/480v/690v
Quickview
15 Hp (11 KW) Soft Starter, 230v/400v/480v/690v
$367.93 $419.00
Ex Tax:$367.93
Add to Cart Add to Wish List Compare this Product
150 Hp (110 KW) Soft Starter, 230v/400v/460v/660v
Quickview
150 Hp (110 KW) Soft Starter, 230v/400v/460v/660v
$1,219.51 $1,399.00
Ex Tax:$1,219.51
Add to Cart Add to Wish List Compare this Product
180 Hp (132 KW) Soft Starter, 240v/415v/480v/690v
Quickview
180 Hp (132 KW) Soft Starter, 240v/415v/480v/690v
$1,299.31 $1,469.00
Ex Tax:$1,299.31
Add to Cart Add to Wish List Compare this Product
20 Hp (15 KW) Soft Starter, 240v/380v/460v/690v
Quickview
20 Hp (15 KW) Soft Starter, 240v/380v/460v/690v
$389.21 $459.00
Ex Tax:$389.21
Add to Cart Add to Wish List Compare this Product
200 Hp (150 KW) Soft Starter, 220v/420v/480v/690v
Quickview
200 Hp (150 KW) Soft Starter, 220v/420v/480v/690v
$1,379.53 $1,529.00
Ex Tax:$1,379.53
Add to Cart Add to Wish List Compare this Product
25 Hp (18 KW) Soft Starter, 230v/415v/480v/660v
Quickview
25 Hp (18 KW) Soft Starter, 230v/415v/480v/660v
$415.92 $479.00
Ex Tax:$415.92
Add to Cart Add to Wish List Compare this Product

100 hp AC motor soft starter, 75 kW three phase 230v, 420v, 480v, 690v for selection.

ModelGS2-075 (230v), GS3-075 (420v), GS4-075 (480v), GS6-075 (690v).
Capacity100 hp (75 kw)
Current150 amps at 380v/480v, 320 amps at 220v, 90 amps at 690v
Weight5 kgs
Dimension270*146*160 mm
InputVoltage3 phase 230v, 420v, 480v, 690v AC
Frequency50Hz/ 60Hz
Adaptive MotorSquirrel-cage three-phase asynchronous motor
Starting TimesIt is recommended not to exceed 20 times per hour.
CommunicationDB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode(1) Operation panel control. (2) Operation panel + external control. (3) External control. (4) External control + COM control. (5) Operation panel + external + COM control. (6) Operation panel + COM control. (7) COM control. (8) No start or stop operation.
Start Mode(1) Current-limiting to start. (2) Voltage ramp to start. (3) Torque control + current-limiting to start. (4) Torque control + voltage ramp to start. (5) Current ramp to start. (6) Voltage current-limiting double closed-loop start.
Stop Mode(1) Soft stop. (2) Free stop.
Protective Function(1) Open loop protection for external instantaneous stop terminals. (2) Over-heat protection for soft starter. (3) Protection for too long starting time. (4) Input open phase protection. (5) Output open phase protection. (6) Unbalanced three-phase protection. (7) Starting over current protection. (8) Running overload protection. (9) Under voltage protection for power voltage. (10) Overvoltage protection for power voltage. (11) Protection for fault parameter setting of the soft starter. (12) Load short circuit protection. (13) Auto restart or incorrect wiring protection. (14) Incorrect wiring protection of external control stop terminals.
AmbientPlace to be usedIndoor location with good ventilation free from corrosive gas and conductive dust.
AltitudeBelow 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
Temperature-30 +55 oC
Humidity90%RH without dew condensation.
Vibration<0.5G
StructureEnclosureIP 20
CoolingNatural wind cooling.



Tips: Soft Starter vs Variable Frequency Drive

Not all soft starters use a simple reduced voltage principle. For a number of years now, advanced soft starters (including the units manufactured by Gozuk), have used 'torque control' that produces a far better starting and stopping characteristic. While variable frequency drives (VFD) produce excellent soft starting and stopping functions (sometimes with extremely low starting current), they are expensive solutions if variable speed is not required - particularly on large applications. Also, the skill level required to 'correctly' commission variable frequency drives is far greater than it is for soft starters. They both have their place and as a supplier and systems integrator for both technologies, we have to be smart enough to know which one to recommend to our customers.
