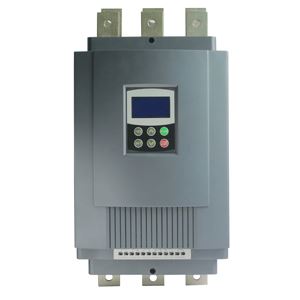

15 Hp (11 KW) Soft Starter, 230v/400v/480v/690v

15 Hp (11 KW) Soft Starter, 230v/400v/480v/690v
15 Hp (11 KW) Soft Starter, 230v/400v/480v/690v
0 reviews • Write a review
from Save -12%
$367.93
$419.00
Ex Tax: $367.93
  • Stock: In Stock
  • Model: HZTOHZ-G23
  • Weight: 1.00
  • SKU: HZTOHZ-G23

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
10 Hp (7.5 KW) Soft Starter, 220v/380v/480v/690v
Quickview
10 Hp (7.5 KW) Soft Starter, 220v/380v/480v/690v
$352.31 $399.00
Ex Tax:$352.31
Add to Cart Add to Wish List Compare this Product
100 Hp (75 KW) Soft Starter, 230v/420v/480v/690v
Quickview
100 Hp (75 KW) Soft Starter, 230v/420v/480v/690v
$619.62 $699.00
Ex Tax:$619.62
Add to Cart Add to Wish List Compare this Product
125 Hp (90 KW) Soft Starter, 220v/380v/460v/660v
Quickview
125 Hp (90 KW) Soft Starter, 220v/380v/460v/660v
$1,168.43 $1,329.00
Ex Tax:$1,168.43
Add to Cart Add to Wish List Compare this Product
150 Hp (110 KW) Soft Starter, 230v/400v/460v/660v
Quickview
150 Hp (110 KW) Soft Starter, 230v/400v/460v/660v
$1,219.51 $1,399.00
Ex Tax:$1,219.51
Add to Cart Add to Wish List Compare this Product
180 Hp (132 KW) Soft Starter, 240v/415v/480v/690v
Quickview
180 Hp (132 KW) Soft Starter, 240v/415v/480v/690v
$1,299.31 $1,469.00
Ex Tax:$1,299.31
Add to Cart Add to Wish List Compare this Product
20 Hp (15 KW) Soft Starter, 240v/380v/460v/690v
Quickview
20 Hp (15 KW) Soft Starter, 240v/380v/460v/690v
$389.21 $459.00
Ex Tax:$389.21
Add to Cart Add to Wish List Compare this Product
200 Hp (150 KW) Soft Starter, 220v/420v/480v/690v
Quickview
200 Hp (150 KW) Soft Starter, 220v/420v/480v/690v
$1,379.53 $1,529.00
Ex Tax:$1,379.53
Add to Cart Add to Wish List Compare this Product
25 Hp (18 KW) Soft Starter, 230v/415v/480v/660v
Quickview
25 Hp (18 KW) Soft Starter, 230v/415v/480v/660v
$415.92 $479.00
Ex Tax:$415.92
Add to Cart Add to Wish List Compare this Product

15 hp AC motor soft starter, 11 kW three phase 230v, 400v, 480v, 690v motor starter.

ModelGS2-011 (230v), GS3-011 (400v), GS4-011 (480v), GS6-011 (690v).
Capacity15 hp (11 kw)
Current22 amps at 400v/480v, 45 amps at 220v, 15 amps at 690v
Weight5 kgs
Dimension270*146*160 mm
InputVoltageThree-phase 230v, 400v, 480v, 690v AC
Frequency50Hz/ 60Hz
Adaptive MotorSquirrel-cage three-phase asynchronous motor
Starting TimesIt is recommended not to exceed 20 times per hour.
CommunicationDB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode(1) Operation panel control. (2) Operation panel + external control. (3) External control. (4) External control + COM control. (5) Operation panel + external + COM control. (6) Operation panel + COM control. (7) COM control. (8) No start or stop operation.
Start Mode(1) Current-limiting to start. (2) Voltage ramp to start. (3) Torque control + current-limiting to start. (4) Torque control + voltage ramp to start. (5) Current ramp to start. (6) Voltage current-limiting double closed-loop start.
Stop Mode(1) Soft stop. (2) Free stop.
Protective Function(1) Open loop protection for external instantaneous stop terminals. (2) Over-heat protection for soft starter. (3) Protection for too long starting time. (4) Input open phase protection. (5) Output open phase protection. (6) Unbalanced three-phase protection. (7) Starting over current protection. (8) Running overload protection. (9) Under voltage protection for power voltage. (10) Overvoltage protection for power voltage. (11) Protection for fault parameter setting of the soft starter. (12) Load short circuit protection. (13) Auto restart or incorrect wiring protection. (14) Incorrect wiring protection of external control stop terminals.
AmbientPlace to be usedIndoor location with good ventilation free from corrosive gas and conductive dust.
AltitudeBelow 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
Temperature-30 +55 oC
Humidity90%RH without dew condensation.
Vibration<0.5G
StructureEnclosureIP 20
CoolingNatural wind cooling.



Tips: Should I use a soft starter?
Applications which just need to control inrush current can do with just a soft starter. Variable torque, constant torque applications will need a variable frequency drive (VFD). A VFD can be prohibitively expensive for large loads, so soft starters are used there as well. VFDs have the potential to cause Electromagnetic Interference while soft starters don't. MV applications use soft starters a lot. Of course a VFD is more versatile than a soft starter and a VFD normally has built in all of soft start functions.
