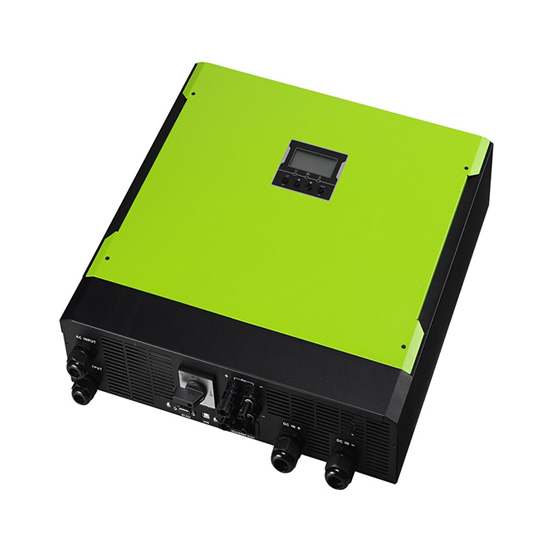

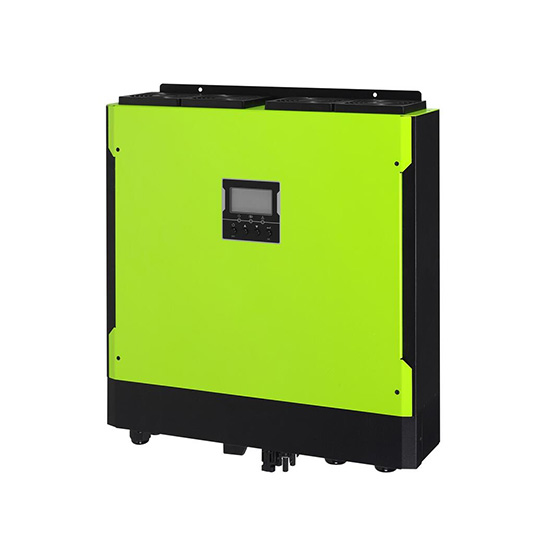

5kW Hybrid Solar Inverter
from
$3,901.62
Ex Tax: $3,901.62
- Stock: In Stock
- Model: HZTOHZ-HSI-5kW48-230
- Weight: 1.00
- SKU: HZTOHZ-HSI-5kW48-230
Low cost single phase 5000 watt off grid solar inverter for home used, DC input voltage 200-900V, AC output 184 volt / 265 volt, small and light, easy to install. The MPPT function improves the efficiency of the solar power system. During periods when solar energy production is low or non-existent, such as at night or during cloudy weather, the hybrid solar inverter 5kW can draw stored energy from the batteries and convert it back into AC electricity for use in the home.
Features:
- Combine power for self-use and grid connection.
- The priority supply sequence of solar, battery power, and city power can be set. It can synchronize with the electrical grid to either export excess power generated by the solar panels or to draw power from the grid when solar production is insufficient.
- The charging current can be adjusted according to a variety of battery types.
- Optional modes. grid-connected mode, off-grid mode, and grid-connected energy storage mode. Grid-connected mode excess solar power is fed back into the grid to offset energy consumption while also enabling battery backup functionality for critical loads during grid outages.
- The built-in timer in the hybrid inverter can set the machine's on/off time.
- The LCD panel of the hybrid solar inverter can display various detailed information.
- Configure multiple communication ports.
Details:

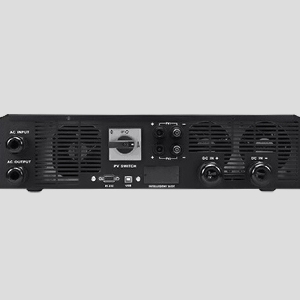

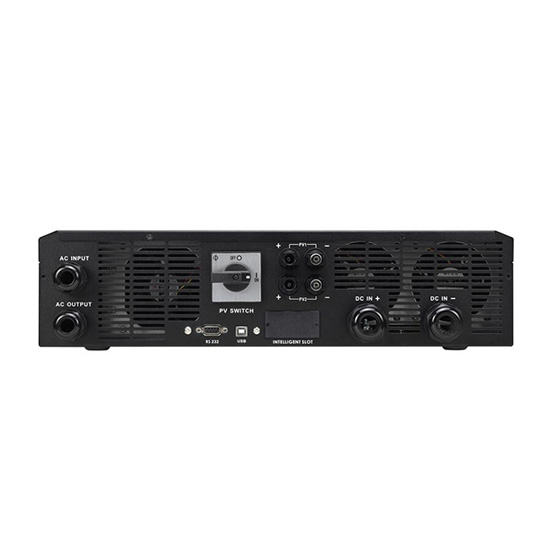

Multiple Communication Ports
Hybrid solar inverters are equipped with multiple communication ports that enhance their functionality and adaptability in renewable energy systems. This facilitates seamless integration and coordination between different components of the system, optimizing overall performance and efficiency.

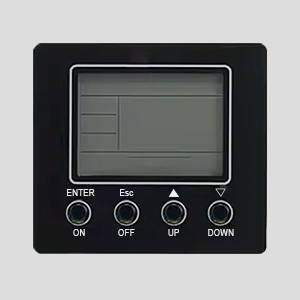

LCD Display
LCD provides clear and concise information about power generation, consumption, and system status of the hybrid 5kW inverter, aiding users in monitoring and managing energy usage effectively, empowering users to make informed decisions for better energy management.

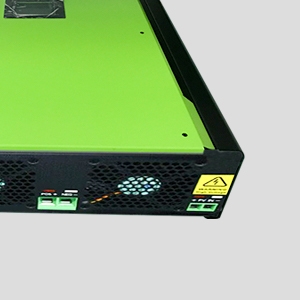

Dust Cover
By preventing accumulation on sensitive components, dust covers enhance the longevity and efficiency of the inverter hybrid on off grid 5kW, reducing maintenance requirements and potential malfunctions. contribute to maintaining optimal performance levels by minimizing the risk of overheating or electrical issues caused by dust infiltration.
Applications:

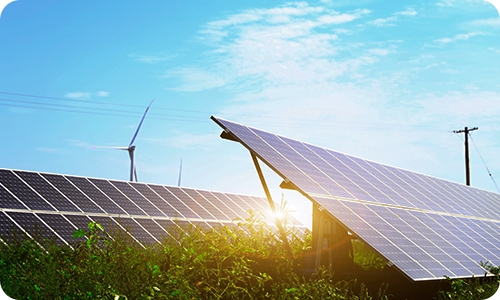

Photovoltaic Power Generation
Agriculture Industry
Home Appliance

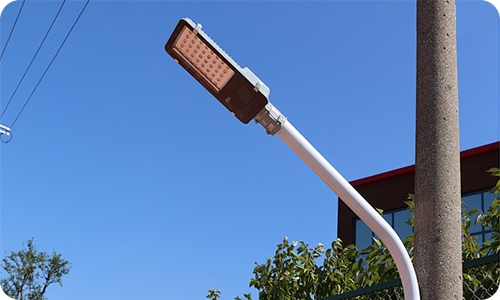

Street Lighting
| Model | HZTOHZ-HSI-5kW48-230 | |
| Rated Power | 5000W | |
| PV INPUT (DC) | Maximum DC Power | 10000W |
| Nominal DC Voltage | DC 720V | |
| Maximum DC Voltage | DC 900V | |
| Working DC Voltage Range | DC 200V-900V | |
| Start-up Voltage / Initial Feeding Voltage | 250V/300V | |
| MPP Voltage Range | DC 250V-DC 850V | |
| Full Load MPP Voltage Range | DC 500V-DC 800V | |
| Maximum Input Current | 2*10A | |
| Isc PV (absolute maximum) | 25A | |
| Max. inverter back feed current to the array | 0A | |
| GRID OUTPUT (AC) | Nominal Output Voltage | AC 230V |
| Output Voltage Range | AC 184V-265V | |
| Output Frequency Range | 47.5-51.5Hz~59.3-60.5Hz | |
| Nominal Output Current | 21.8A/phase | |
| Inrush Current/Duration | 25A/20ms | |
| Maximum Output Fault Current/Duration | 65A/1ms | |
| Maximum output Overcurrent Protection | 65A | |
| Power Factor Range | 0.9 lead - 0.9 lag | |
| AC INPUT | AC Start-up Voltage | AC 120V-140V |
| Auto Restart Voltage | AC 180V | |
| Acceptable Input Voltage Range | AC 170V-280V | |
| Nominal Frequency | 50Hz / 60Hz | |
| AC Input Power | 5000VA / 5000W | |
| Maximum AC Input Current | 40A | |
| Inrush Input Current | 40A/1ms | |
| BATTERY MODE OUTPUT (AC) | Nominal Output Voltage | AC 230V |
| Output Frequency Range | 50 Hz / 60 Hz (auto sensing) | |
| Output Waveform | Pure sine wave | |
| Output Power | 5000VA/5000W | |
| Efficiency (DC to AC) | 91% | |
| BATTERY & CHARGER (Lead-acid/Li-ion) | DC Voltage Range | DC 40V–60V |
| Nominal DC Voltage | DC 48V | |
| Maximum Battery Discharging Current | 138A | |
| Maximum Charging Current | 100A | |
| GENERAL PHYSICAL | Dimension, D*W*H (mm) | 600*460*204.2 |
| Net Weight (kgs) | 29 | |
| INTERACE | Communication Port | RS-232/USB |
| Intelligent Slot | Optional SNMP, Modbus, and AS-400 cards available | |
| ENVIRONMENT | Protective Class | I |
| Ingress Protection Rating | IP20 | |
| Humidity | 0 ~ 90% RH (No condensing) | |
| Operating Temperature | -10 to 55°C (Power derating above 50°C) | |
| Altitude | Max. 2000m* | |
