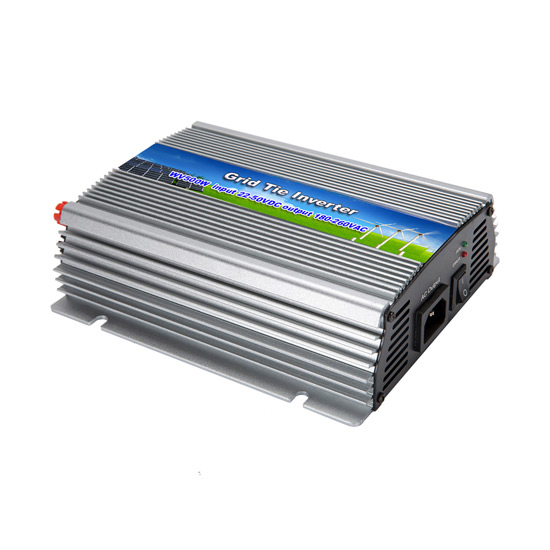

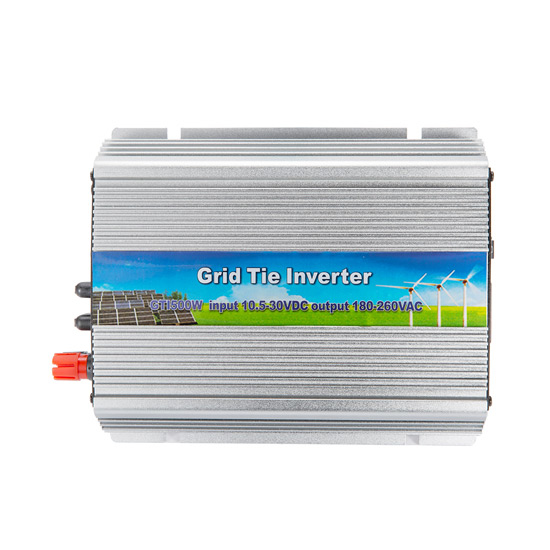

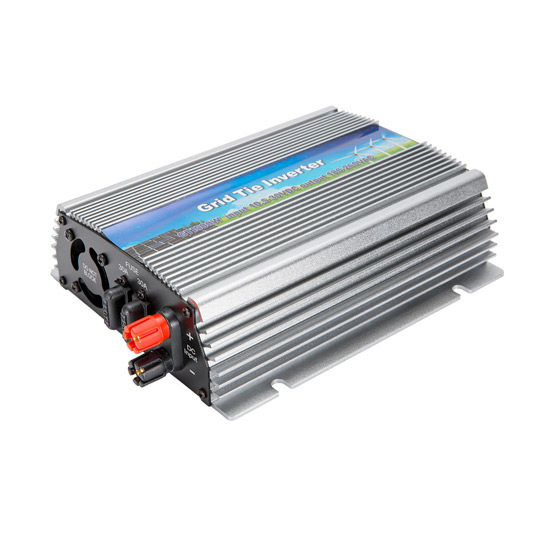

500W Solar Grid Tie Inverter, 12V/24V DC To 110V/230V AC
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
500W Solar Grid Tie Inverter, 12V/24V DC To 110V/230V AC
from
$125.31
Ex Tax: $125.31
- Stock: In Stock
- Model: HZTOHZ-GTI-500
- Weight: 1.00
- SKU: HZTOHZ-GTI-500
500 watt solar grid tie tnverter with wide input voltage range of 10.5V-30V DC and wide output voltage range of 90-140V AC/ 180-260V AC. Pure sine wave power inverter using SPWM to produce pure sine output directly, suitable for open-circuit voltage of solar panels range 20V-50V DC, Vmp: 28V-40V, the version of 48V input is available. Solar pv inverter often used in residential solar power system, battery energy storage system and wind power system.
Features:
- High performance maximum power point tracking (MPPT). This leads to increased efficiency, more energy production, and improved grid stability.
- Directly connected to the solar panels (do not need to connect the battery).
- AC 0 angle with high precision auto-detection. This helps in reducing stress on the electrical components and extending their lifespan.
- Synchronous high-frequency modulation. Operating at high frequencies reduces switching losses, leading to improved overall efficiency in the power conversion process.
- Power automatically locked (APL), make the output power more stable, use SPWM directly to make pure sine wave output.
- Automatically adapt to different load power factor and automatically shut down when the power output of a fault.
Details:

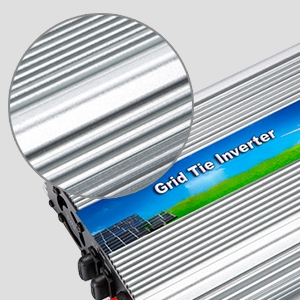

Aluminium Magnesium Alloy
Its lightweight nature reduces the overall weight of the inverter, making it easier to install and handle. This alloy also has excellent thermal conductivity, aiding in effective heat dissipation and helping maintain optimal operating temperatures for grid tie power inverter components. The alloy's high corrosion resistance ensures durability and longevity, even in harsh environmental conditions.

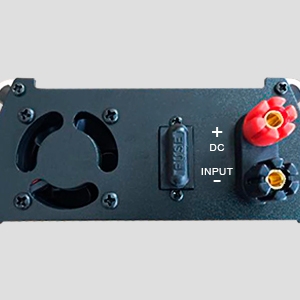

DC Input
DC input in on grid solar inverter offers high efficiency. It allows seamless integration with solar panels or other renewable energy sources, converting DC power directly into AC power for grid use. Also can handle a range of DC voltage levels from different renewable sources. Additionally, using DC input simplifies the overall system, as fewer conversion stages are required, lowering costs.

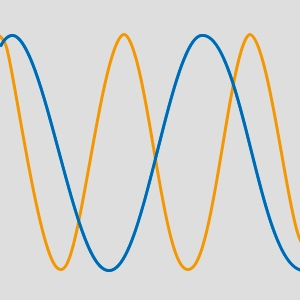

Pure Sine Wave
This consistent power supply reduces noise and interference, improving performance and lifespan of connected devices. Pure sine wave power inverter is also more efficient and generate less heat, contributing to a longer overall system lifespan. Pure sine wave produces a cleaner power signal that is less likely to disrupt nearby electronic equipment, ultimately enhancing overall system reliability.

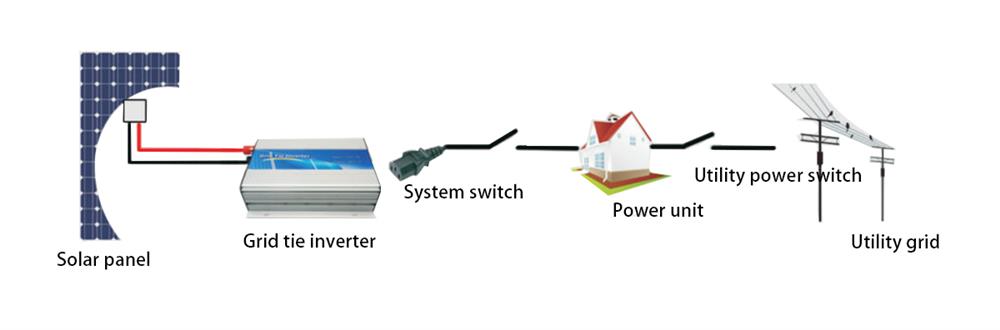

Grid Tie Inverter for Solar Panel System:
| Grid tie inverter model | HZTOHZ-GTI-500 | |||||
| Recommend using solar panels | 620 Watt | |||||
| DC maximum input power | 600 Watt | |||||
| DC maximum voltage | 50.2V DC | |||||
| DC voltage | 12V/ 24V/ 48V DC, range: 10.5V-30V DC/ 20V-50V DC | |||||
| Recommend PV Vmpp | 18V (10.5V-30V DC) / 28-40V (20V-50V DC) | |||||
| AC output power | 500W | |||||
| Anti-voltage protection | Fuse | |||||
| AC standard voltage | 110V/ 230V AC, range: 90-140V AC/ 180-260V AC (*Note: Inverter output is single phase (L, N, G) one hot line only) | |||||
| AC frequency range | 55-63Hz/ 45-53Hz | |||||
| Topology | With transformer type | |||||
| Output current total harmonic distortion | THDI<> | |||||
| Phase differnce | <> | |||||
| Islanding protection | VAC, FAC | |||||
| Output short circuit protection | Current-limiting | |||||
| Show | LED | |||||
| Installation | Wall hanging | |||||
| Cooling method | Fan | |||||
| Standby power consumption | <> | |||||
| Night power consumption | <> | |||||
| Ambient temperature range | -25℃ to +60℃ | |||||
| Waterproof grade | IP23 (indoor type design) | |||||
| Electromagnetic compatibility | EN50081.part1 EN50082.part1 | |||||
| Power system disturbance | EN61000-3-2 EN60950-1 | |||||
| Network test | DIN VDE 1026 | |||||
| Certification | CE | |||||
| Warranty period | 12 months | |||||
| Inverter net weight | 1.3kg | |||||
| Dimension (LxWxH) | 210x165x57mm | |||||
