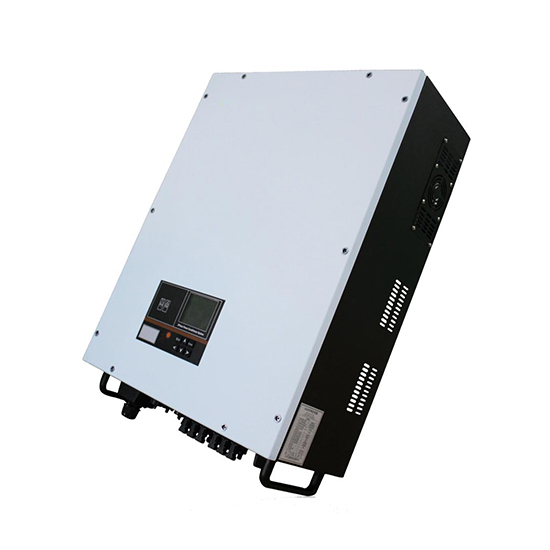

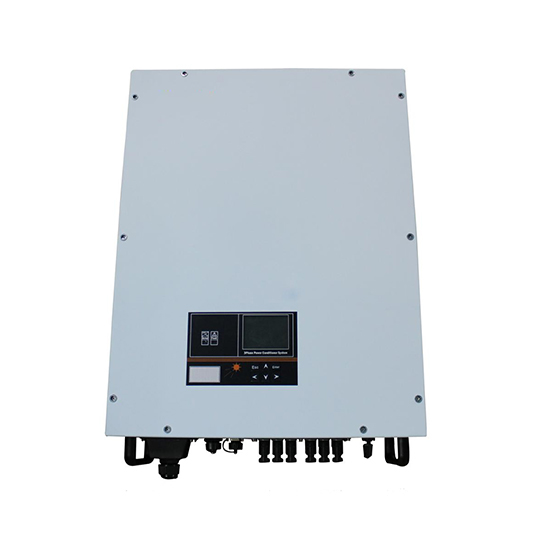

5000 Watt Three Phase Grid Tie Solar Inverter
from
$1,957.07
Ex Tax: $1,957.07
- Stock: In Stock
- Model: HZTOHZ-GTI-3P-TLC5000
- Weight: 1.00
- SKU: HZTOHZ-GTI-3P-TLC5000
A grid tie inverter is also known as a grid connected inverter. Good price 5kW on grid inverter for 50Hz/60Hz 3-phase 4 line (3L+N+PE) grid tied solar system, maximum DC input voltage to 850V, pure sine wave output, high efficient MPPT, have a full range scheme of power protection. Three-phase systems are typically used in commercial and industrial settings, offering benefits like more efficient power distribution and reduced energy losses compared to single-phase systems.
Features:
- LCD is convenient for the user to monitor the main parameters of the grid tie inverter.
- On grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
- Strong IP65 protection and a completely sealed cover suitable for harsh environments.
- On grid inverter adopts no isolation transformer H6 full-bridge configuration, with the highest efficiency reaching 97%.
- Multiple inverters can be operated in parallel and support various communication modes.
- Advanced MPPT tracking technology and wide MPPT voltage range, which optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.
Details:

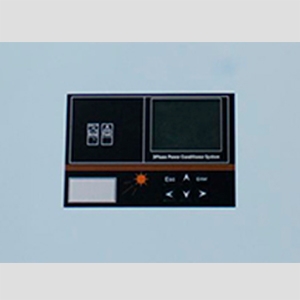

LCD Display
It provides real-time monitoring and feedback on the grid tie solar inverter system's performance, allowing users to quickly identify any issues or anomalies. This promotes efficient troubleshooting and maintenance, enhances the user interface, and allows for easy configuration and adjustment of settings for optimal performance.

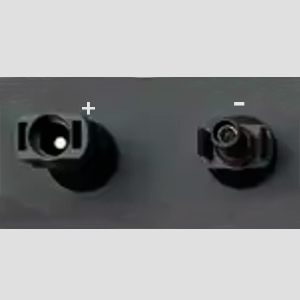

DC Input Connection
It enhances flexibility as DC input allows for easy integration with various renewable energy sources like solar panels or batteries, facilitating hybrid energy systems and improving the overall reliability of on grid solar inverter. DC input configurations enable easier implementation of maximum power point tracking (MPPT) algorithms, optimizing energy harvesting from solar arrays.

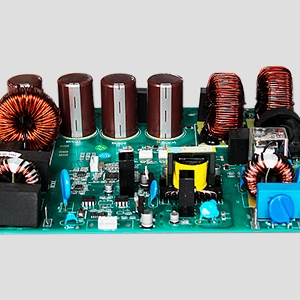

Precise Internal Construction
It improves reliability and longevity by reducing heat generation and stress on components, leading to a more durable system of solar grid tie inverter. Precise construction enables better control over voltage and frequency, ensuring stable and synchronized power delivery to the grid, which is crucial for maintaining grid stability and preventing disruptions.
Applications:
Remote Location

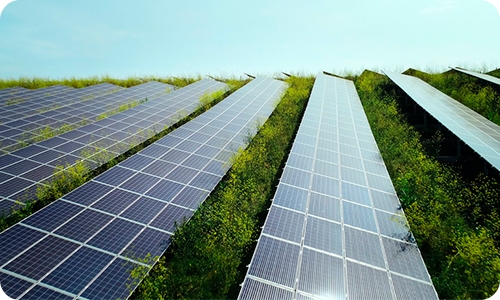

Solar Farm
Battery Power
Wind Power
| MODEL | HZTOHZ-GTI-3P-TLC5000 | |||||
| DC INPUT | Max. DC Input Power | 5500 watt | ||||
| Max. DC Input Voltage | 850V DC | |||||
| Max. DC Input Current | 15A | |||||
| MPPT Tracking Voltage Range | 200-820V | |||||
| MPPT Tracking Number / Each Input String Number | 1 | |||||
| Power ON / OFF Voltage | 200V / 300V | |||||
| Input Terminal | MC4 | |||||
| AC OUTPUT | Power | 5000W | ||||
| Output Voltage | Default AC 3-phase 380V±5%, (Optional: 208V, 240V, 460V, 480V with ±5% tolerance) | |||||
| Frequency | 50Hz / 60Hz | |||||
| Phase | 3 phase 4 line (3L+N+PE) | |||||
| Power Factor | 0.9 | |||||
| Maximum Current | 7.5A | |||||
| Current THD | At rated power and in the sine wave ＜3.5% | |||||
| Max. Efficiency | 98% | |||||
| MPPT Efficiency | 99.5% | |||||
| Output Terminal | Connect terminals | |||||
| STRUCTURE | Protection Degree | IP65 | ||||
| Cooling Method | Cooling fan | |||||
| Topology | No transformer | |||||
| Noise | <> | |||||
| Data Interfaces | RS 485C / RS232 (Standard) / WiFi Module (Optional) | |||||
| Isolation Type | Non-isolated | |||||
| Standby Power Consumption | <> | |||||
| Display | LCD | |||||
| DC Switch | Integration | |||||
| AC Switch | Integration | |||||
| Protection Functions | DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi, Flexible solar panel | |||||
| ENVIRONMENT | Operation Temperature | Air Flow, -10℃~40℃ | ||||
| Storage Temperature | -20℃~60℃ | |||||
| Relative Humidity | 0~100% | |||||
| Altitude | 2000m, max 3000m | |||||
| OTHERS | Size (W*H*D) | 440*560*260mm | ||||
| Weight | 45kg for 380V, 105kg for other customized voltages | |||||
| Certificate | CE / G83 / IEC / TUV / SAA | |||||
| Warranty | 5 years | |||||
