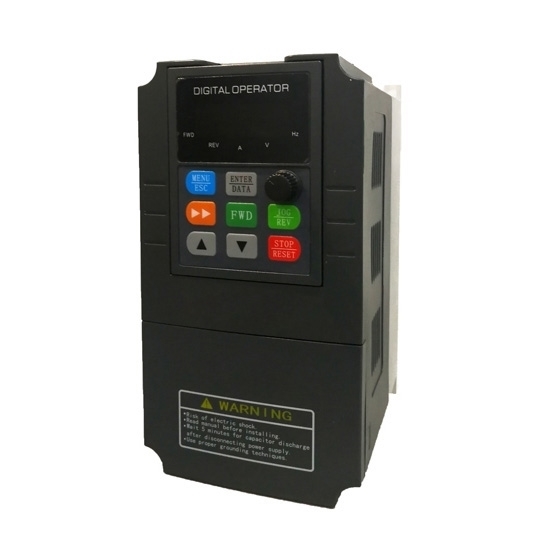

5 Hp VFD, 1 Phase To 3 Phase VFD

5 Hp VFD, 1 Phase To 3 Phase VFD
5 Hp VFD, 1 Phase To 3 Phase VFD
0 reviews • Write a review
from Save -15%
$294.31
$347.90
Ex Tax: $294.31
  • Stock: In Stock
  • Model: HZTOHZ-G13
  • Weight: 1.00
  • SKU: HZTOHZ-G13

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Single Phase Output VFD
Quickview
1 Hp (0.75 KW) Single Phase Output VFD
$196.32 $220.00
Ex Tax:$196.32
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase To Three Phase VFD
Quickview
1 Hp VFD, Single Phase To Three Phase VFD
$159.32 $199.60
Ex Tax:$159.32
Add to Cart Add to Wish List Compare this Product
1/2 Hp VFD, Single Phase To Three Phase VFD
Quickview
1/2 Hp VFD, Single Phase To Three Phase VFD
$149.10 $197.00
Ex Tax:$149.10
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
Quickview
10 Hp (7.5 KW) VFD, Three Phase 220V, 440V, 480V
$463.25 $549.00
Ex Tax:$463.25
Add to Cart Add to Wish List Compare this Product
10 Hp VFD, Single Phase Input To Three Phase Converter
Quickview
10 Hp VFD, Single Phase Input To Three Phase Converter
$992.32 $1,109.98
Ex Tax:$992.32
Add to Cart Add to Wish List Compare this Product

Single phase 5 hp VFD, single phase 220V to three phase variable frequency drive, 19.2 amps. Using it as a phase converter to convert 1-phase 220v (230v, 240v) home power supply to drive 3-phase motors.

Specification:

BasicsModelGK3000-2S0037
Capacity5 hp (3.7 kW)
Shipping weight4 kg
Dimension184*98*135 mm
I/O FeatureRated current17 A
Input voltage1 phase 220~240V AC
Input frequency50Hz/ 60Hz
Output voltage3 phase AC 0~input voltage
Output frequency0.00~400.00Hz
Over load capacity150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control FeatureControl modeV/F control;
Sensorless vector control;
CommunicationRS485
Speed regulation1:100
Start torque150% of rating torque at 1 Hz
Speed control accuracy≤±0.5% of rating synchronous speed
Frequency precisionDigital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolutionAnalog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boostAutomatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controllerBe convenient to make closed-loop system
Automatic energy save runningOptimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)Can keep constant output voltage when power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over-current which will cause trip
EnvironmentEnclosure ratingIP 20
Temperature–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity5%-95%, without condensation
Altitude≤1000m; VFD will be derated if above 1000m
Impingement and oscillationNormal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Store environment–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight



Tips: Do I need a VFD?
First question is about load speed / torque profile. If load need large speed variation, variable frequency drive (VFD) come with significant energy saving, if not, may be difficult to sustain VFD cost/ investment. First candidates to VFD are pump / fan systems. VFDs do provide some advantages, but there are also some disadvantages as well, like harmonics injection, motor insulation premature fails, cable reflection for lengths more than 10m. These issues must be controlled / put in balance. So, there are not advantages only by using a VFD.

For sure VFDs are big energy enablers. Yet official data announced that only 10 to 20% of motors are equipped worldwide. And even with new motor classes, we will not reach the same level of savings. The trend is now motor being embedded intelligence for energy savings, this push VFD manufacturers enhance the saving rates of the VFD. Finally, people and earth will benefit of their capabilities.

For the area where there is only single phase power supply available but you have three phase plant, in case of less than 5 HP, by far the most efficient and easy way to convert single phase to three phase are the variable frequency drives out that can be equipped with single phase front ends, and provide variable frequency three phase power. I have one 5hp VFD on my water pump and could not be happier, not just for the ability to use a three phase motor, but also soft start, dynamic breaking, speed control, and direction control.
