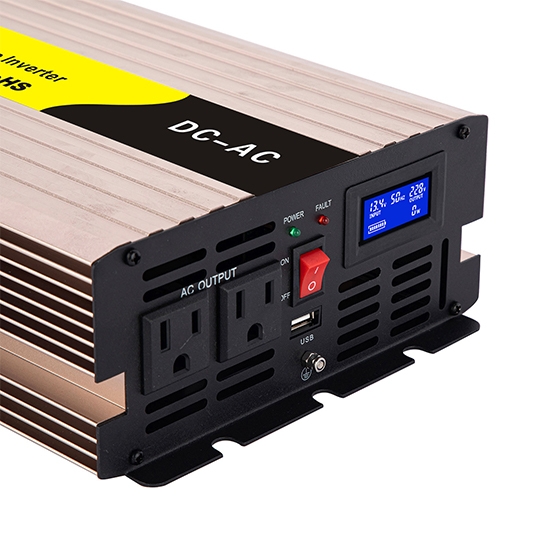

48V 1000 Watt Pure Sine Wave Inverter
from
$174.20
Ex Tax: $174.20
- Stock: In Stock
- Model: HZTOHZ-PSWI-48V-1000W
- Weight: 1.00
- SKU: HZTOHZ-PSWI-48V-1000W

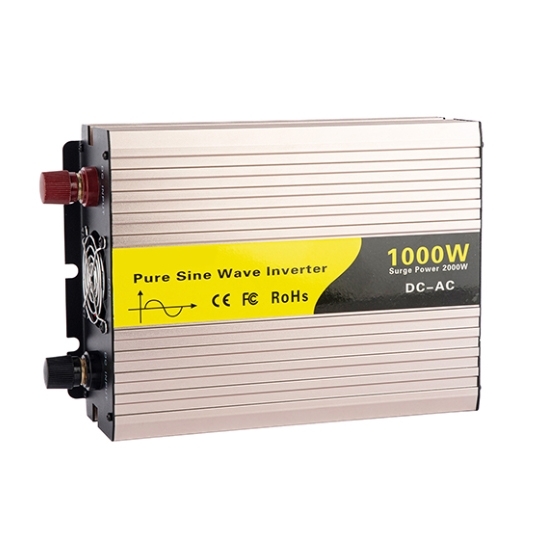

48V DC to 110V AC 1000W pure sine wave inverter with remote control, LCD display, AC output voltage can select 220V, 230V, 240V, 100V, output frequency 50Hz or 60Hz to choose from, run quietly, light weight, manufacturer direct sales. The 48V input voltage is common in renewable energy systems, especially those utilizing 48V battery banks commonly found in solar setups.
Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.
Features:
- Intelligent integrated circuit control. Unique front and rear dual soft start technology, CPU core, SPWM pulse width control technology, special constant power technology, anti-reverse diode technology.
- Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Imported parts. The pure sine wave inverter materials are imported components, and the panel uses double-sided circuit boards to ensure high quality and high performance of the products, and to match the excellent quality of the detailed molds.
- Working instructions intuitive working state. When the sine wave inverter undervoltage/overvoltage, overload, overtemperature, short circuit, the LED indicator lights.
- Fault warning/buzzer alarm reminder. When the inverter high voltage, low voltage, over temperature, overload protection function is turned on, once the protection of the inverter is triggered, the inverter disconnects the power supply and the load enters the protection mode for the first time, and issues an alarm through the buzzer alarm device. Make your use more secure.
Details:

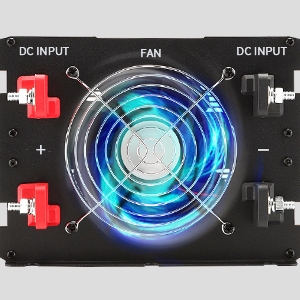

Intellengent Cooling Fan
Optimize energy consumption by adjusting fan speed based on temperature, enhancing efficiency. Intelligent cooling fan in pure sine wave power inverter ensures quieter operation compared to traditional fan, enhancing user comfort. It contributes to environmental sustainability by reducing energy waste and emissions.

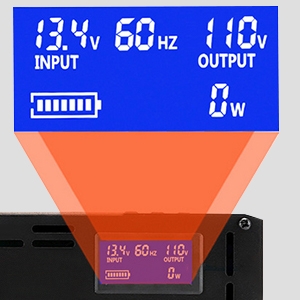

LCD Display
LCD screens consume less power compared to traditional displays, conserving energy and extending battery life. LCD provides clear, sharp visuals with wide viewing angles, ensuring readability even in varying lighting conditions. Users can easily read the information displayed on the screen without any difficulty.

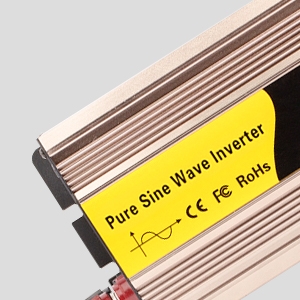

Aluminium Alloy housing
Aluminium's excellent thermal conductivity facilitates efficient heat dissipation, enhancing the inverter's performance and lifespan. its corrosion resistance ensures longevity even in harsh environments. Thermal efficiency, and environmental friendliness, making it an optimal choice for pure sine wave 1000W inverter.
Applications:
Recreational Vehicle
Electric Tool
Audio Equipment
Residential Use
| Model | HZTOHZ-PSWI-48V-1000W |
| Rated Power | 1000 Watt |
| Peak Power | 2000 Watt |
| Input Voltage | DC 48V |
| Output Voltage | 100 /110 /120 /220 /230 /240VAC±5% |
| Unload Current Less Than | 0.2A |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform | Pure Sine Wave |
| Waveform Distortion | THD＜3% (Linear load) |
| USB Port | / |
| Max Working Efficiency | 93% |
| Low Voltage Protection | Alarm at first, voltage continuously reduces. LED Red light on & shut down |
| Over Voltage Protection Function | LED Red light on, shut down |
| Over Load Protection Function | LED Red light on, shut down |
| Over Temperature Protection Function | Alarm at first, temperature continuously rises. LED Red light on & shut down |
| Short Circuit Protection Function | LED Red light on |
| Input Reverse Polarity Protection Function | Fuse burn-out |
| Input Voltage Range | 40-61V |
| Low Voltage Alarm | 42±1V |
| Low Voltage Protection | 40±1.5V |
| Over Voltage Protection | 61±1V |
| Low Voltage Recover | 48±1V |
| Over Voltage Recover | 59±1V |
| Working Temperature | -10℃~ +50℃ |
| Cooling Method | Intelligent air cooling |
| Warranty | 1 year |
| Storage Temperature | -30℃~ +70℃ |
| Configuration | standard |
| Dimensions (W*H*D) | 275mm*180mm*80mm |
| Net/Gross Weight | 2500g / 2950g |

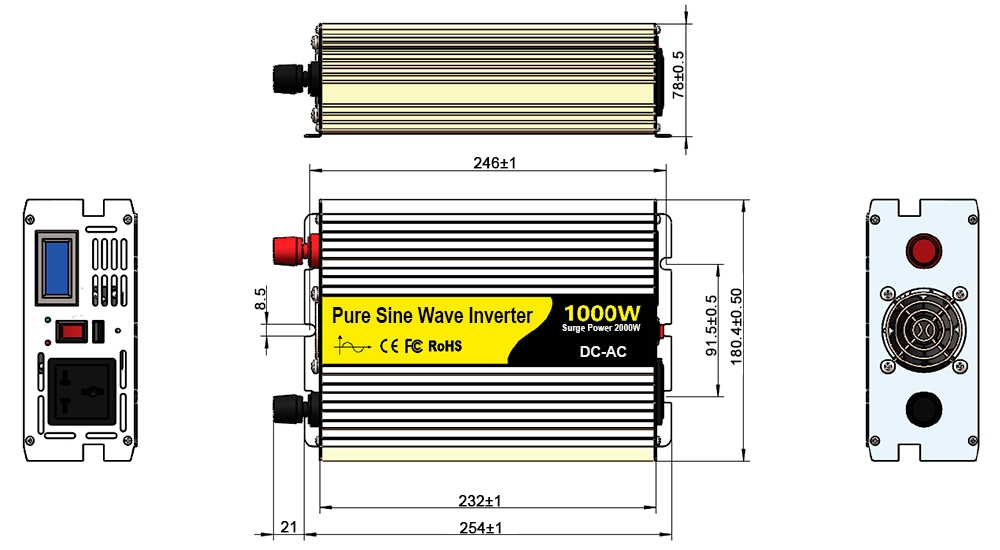

Dimension (Unit: mm)

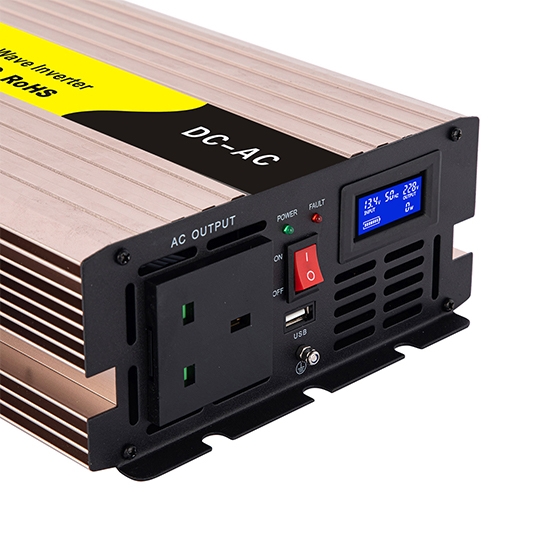

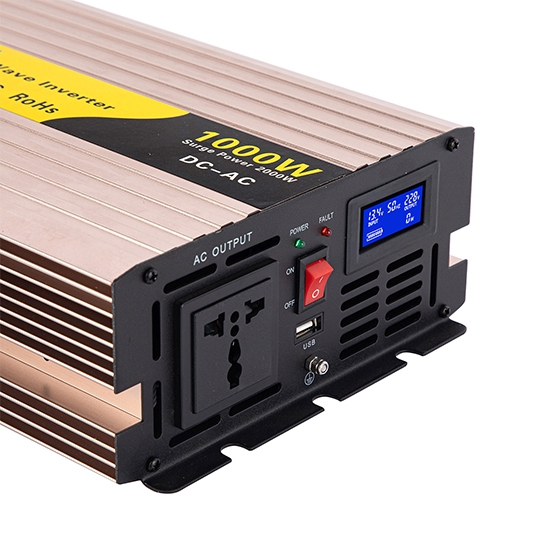

Pure Sine Wave Inverter Output Sockets (Optional)
Note: Inverter output voltage is 1-phase (L, N, G) only, Do not provide split phase configuration (L1, L2+N, G).

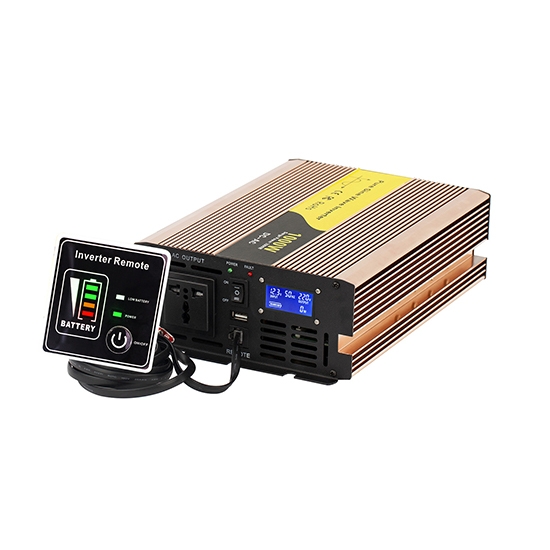

Pure Sine Wave Inverter Remote Control & LCD Display (Optional)
- Pure sine wave power inverter is available with remote control: wired control and wireless control.
- LCD display shows input voltage, output voltage, output frequncy, battery capacity and power.
