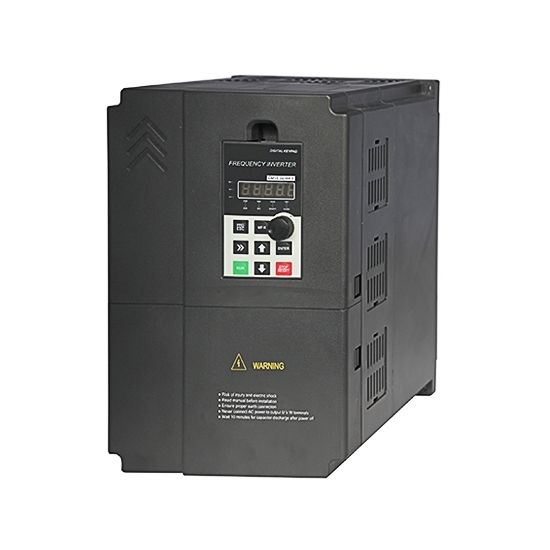

5.5 KW Three Phase Solar Pump Inverter, AC 220V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
5.5 KW Three Phase Solar Pump Inverter, AC 220V
from
$473.69
Ex Tax: $473.69
- Stock: In Stock
- Model: GK330-SP1-5d5
- Weight: 1.00
- SKU: GK330-SP1-5d5
With a humidity tolerance of up to 95% RH and an adjustable output frequency (0~50/60Hz), this solar pump controller includes a built-in air-cooling system to ensure stable operation in temperatures ranging from -10°C to 40°C. The water pump inverter is particularly suited for applications such as drought relief in agriculture and seawater desalination, leveraging green technology to enhance water resource management.
Features
- High-Efficiency MPPT Control: This pump inverter utilizes advanced MPPT technology to track the optimal operating point of solar panels in real-time, optimizing both voltage and current for system efficiency of up to 98%.
- Smart Sleep Mode: Automatically adjusts its operation based on sunlight intensity. The water pump inverter enters sleep mode during low sunlight to save energy and quickly resumes operation when sunlight increases, maximizing solar resource utilization.
- Water Level Adaptive Control: Integrated with water level sensing, the VFD solar inverter automatically stops when the water level is high to prevent overflow and restarts when the water level is low to avoid dry running, enabling unattended automated management.
- Intelligent User Interface: The solar pumping inverter features an intuitive control panel with support for water level detection and smart control, ensuring user-friendly and safe operation while preventing equipment damage.
- Fault Self-Protection: Built-in multiple protection mechanisms immediately activate self-protection in case of faults, ensuring stable system operation and enhancing overall system reliability.
- AC Bypass Backup: Includes an integrated AC bypass function. During insufficient or no sunlight periods, the solar pump controller automatically switches to an AC power supply, ensuring uninterrupted water pumping.
Details

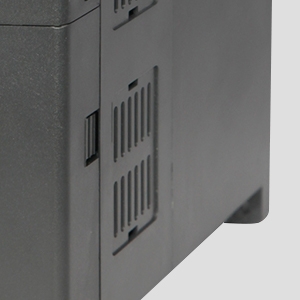

Air Vents
The well-performed 5.5kW solar water pumping inverter has high-density ventilation ports for excellent cooling, ensuring stable operation in high-temperature environments. The powerful DC heat sink operates quietly, adeptly reducing the heat generated during inverter use, with smart start-stop control. The independent air duct design forms a sealed space, effectively preventing dust and moisture from entering the circuit board area.

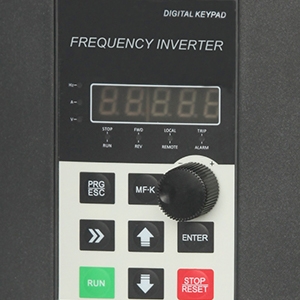

Digital Keypad
The digital keypad of this 5.5kW PV pump inverter is clear and easy to use, directly controlling the start, stop, and acceleration functions. Users can easily set the inverter's parameters and adjust the output frequency to control the pump speed, meeting various operational needs effortlessly. The intuitive design of the digital keypad enhances the efficiency and convenience of the solar pump system's operation.

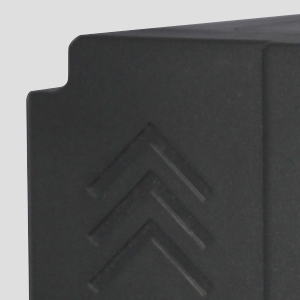

Rugged Casing
The solar pump inverter features a compact structure and a rugged casing that is impact-resistant, flame-retardant, aging-resistant, and corrosion-resistant. The 5.5kW pump inverter is expertly insulated, dust-proof, and moisture-proof, ensuring all users' stable, safe, and reliable operation. The robust casing protects internal circuits and electronic components, ensuring the inverter's safety, stability, and reliability, effectively extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply

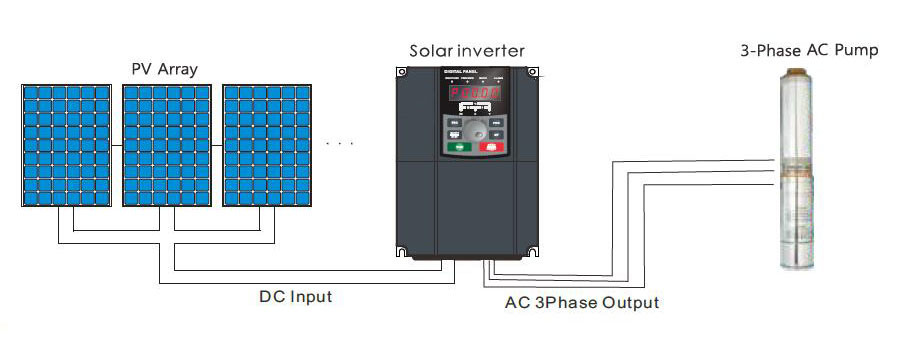

Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| 5D5 | Adaptable motor power: 5D5 (5.5KW) |
| Model | SP1-5d5 |
| Rated Power | 5.5 kW |
| Min. DC Voltage | 120V |
| Max. DC Voltage | 400V |
| Recommended MPPT Range | 250V~400V |
| AC Output | AC 3 Phase 220V |
| Output Current | 25A |
| Output Frequency | 0~50/60Hz |
| Power Factor | ＞0.99 |
| Communication Mode | RS485 Communication |
| Protection Class | IP20 |
| Ambient Temperature | -10℃~40℃ (ambient temperature at 40℃~50℃, please keep derated use) |
| Storage Temperature | -20℃~60℃ |
| Humidity | Smaller than 95% RH, non-condensation |
| Cooling | Forced Air Cooling |
| Altitude | Lower than 1000m |
| Humidity | Less than 95% RH, without condensing |
| Vibration | Less than 5.9m/s² (0.6g) |
| Size ( W*H*D) | 162*250*191(mm) |
| Installation Size (W*H*φ) | 148*238*φ5.5(mm) |
| Gross Weight | 5kg |

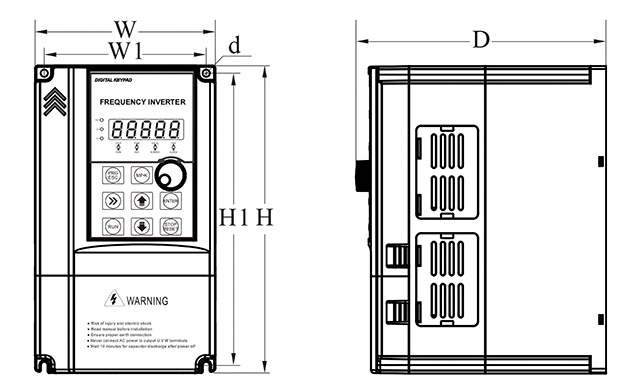

Solar inverter appearance and installing dimension (mm)
