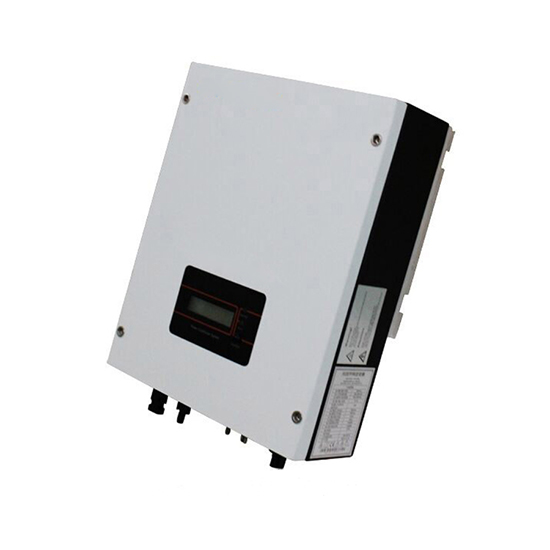

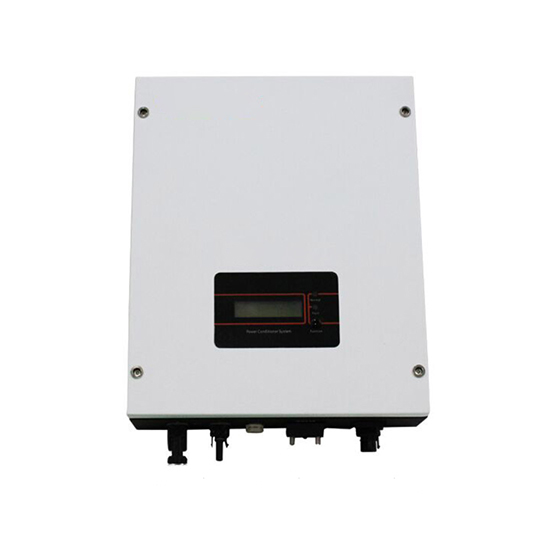

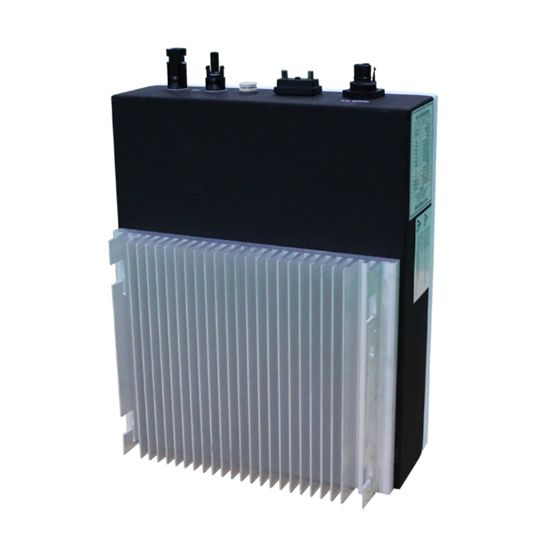

4000W Single Phase Grid Tie Solar Inverter
from
$1,178.38
Ex Tax: $1,178.38
- Stock: In Stock
- Model: HZTOHZ-GTI-TL4000
- Weight: 1.00
- SKU: HZTOHZ-GTI-TL4000
A reasonable price single phase 4000 watt on grid solar inverter is a compact unit, creative MPPT tech makes efficiency higher than 99%. It can operate on a single-phase electrical system, which is common in residential settings. 4kw grid tie inverter directly converts direct current 150-500V MPPT voltage range into alternating current 230V (190-270) for grid tied solar power system, please contact us for other output voltages.
Features:
- LCD is convenient for the user to monitor the main parameters of grid tie inverter.
- On grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
- Strong IP65 protection, completed sealed cover suitable for harsh environments.
- On grid inverter adopts with no isolation transformer H6 full-bridge configuration, highest efficiency reaches 97%.
- Multiple inverters can be operated in parallel and support various communication modes.
- Advanced MPPT tracking technology, a wide MPPT voltage range, optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.
Details:

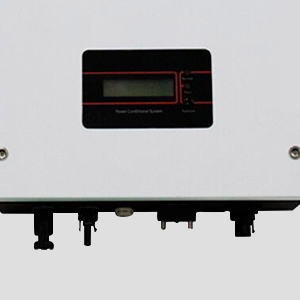

LCD Display
LCD display in a grid tied PV inverter provides real-time data monitoring, is user-friendly and easy to read, and presents complex information. This transparency helps identify any potential issues and optimize system efficiency. LCD also enhances user interaction and ensures efficient grid tie inverter system management.

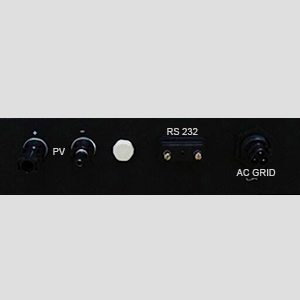

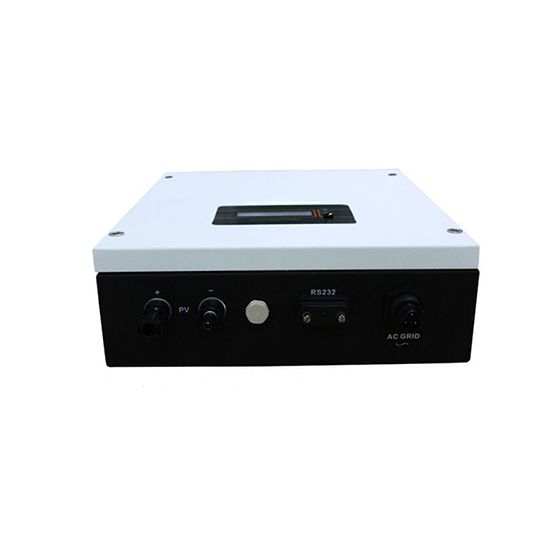

Multiple Port
This diversification optimizes energy capture and storage, by accommodating different energy sources, the on grid tie inverter system can optimize energy harvesting throughout the day, leading to better efficiency and output. With multiple ports, one energy source can act as a backup if another fails, ensuring continuous power supply.

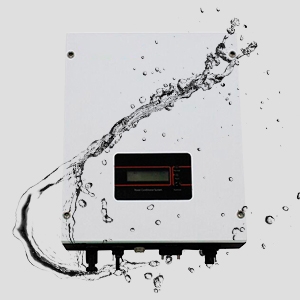

IP65 Protection
It ensures complete protection against dust ingress, preventing any harm to the internal components, making the 4kW on grid solar inverter safe for outdoor installation and resilient to rain, humidity, and other moisture sources. This durability can extend the lifespan of the inverter, reducing maintenance costs and ensuring reliable performance.
Applications:
Rural Electrification
Remote Location
Commercial Use

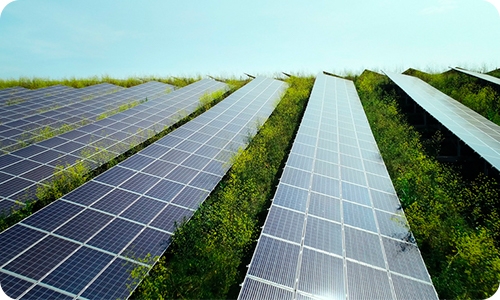

Solar Farm
| MODEL | HZTOHZ-GTI-TL4000 | |||||
| DC INPUT | Max. DC Input Power | 4200 watt | ||||
| Max. DC Input Voltage | 500V DC | |||||
| Max. DC Input Current | 21A | |||||
| MPPT Tracking Voltage Range | 180-500V | |||||
| MPPT Tracking Number / Each Input String Number | 1/2 | |||||
| Power ON / OFF Voltage | 200V / 100V | |||||
| Input Terminal | MC4 | |||||
| AC OUTPUT | Power | 4000W | ||||
| Output Range | Single phase AC 190~270V Adjustable according to different countries and regions' requirements. | |||||
| Rated Voltage | 230V AC (Optional: 110V) | |||||
| Frequency | 50Hz / 60Hz | |||||
| Phase | Single phase (L+N) / spilt phase 2 hotline (L1, L2+N), L1+L2=240V AC, L1+N=120V AC, L2+N=120VAC can be customized for this 4000W inverter. | |||||
| Power Factor | 1 | |||||
| Maximum Current | 18A | |||||
| Current THD | At rated power and in the sine wave ＜3.5% | |||||
| Max. Efficiency | 97% | |||||
| MPPT Efficiency | 99.5% | |||||
| Output Terminal | Connect terminals | |||||
| STRUCTURE | Protection Degree | IP65 | ||||
| Cooling Method | Natural cooling | |||||
| Topology | No transformer | |||||
| Noise | <> | |||||
| Data Interfaces | RS 485C / RS232 (Standard) / WiFi Module (Optional) | |||||
| Isolation Type | Non-isolated | |||||
| Standby Power Consumption | 0W | |||||
| Display | LCD | |||||
| DC Switch | Integration | |||||
| AC Switch | Integration | |||||
| Protection Functions | DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi | |||||
| ENVIRONMENT | Operation Temperature | Air Flow, -10℃~40℃ | ||||
| Storage Temperature | -20℃~60℃ | |||||
| Relative Humidity | 0~100% | |||||
| Altitude | 2000m, max 3000m | |||||
| OTHERS | Size (W*H*D) | The size of the inverter is different due to different specifications, please contact us to confirm. | ||||
| Weight | Single phase version: 36kg, split phase version: 72kg | |||||
| Certificate | CE / G83 / IEC / TUV / SAA | |||||
| Warranty | 5 years | |||||
