3kW Hybrid Solar Inverter
from
$1,586.92
Ex Tax: $1,586.92
- Stock: In Stock
- Model: HZTOHZ-HSI-3kW48-230
- Weight: 1.00
- SKU: HZTOHZ-HSI-3kW48-230

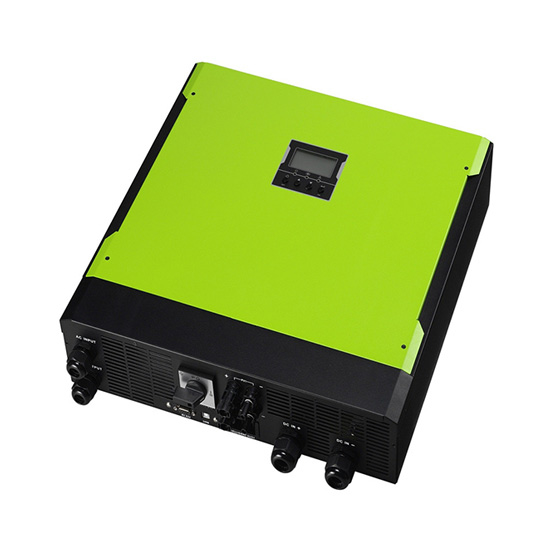

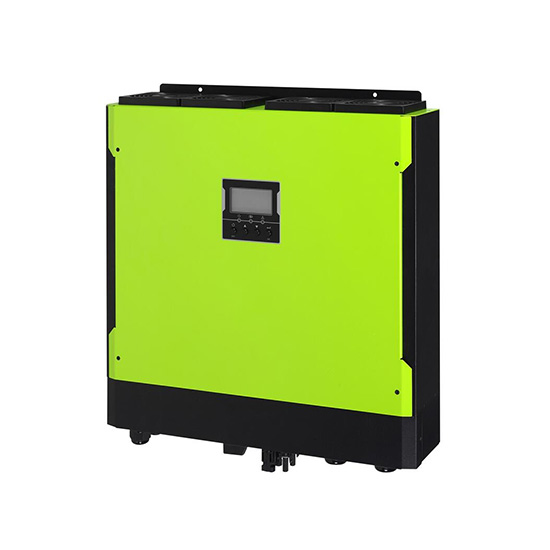

High efficiency hybrid 3000W PV inverter with 3000W rated power, wide DC input voltage range of 360-500 volt and default 1-phase AC output of 208/220/230/240V, higher efficiency and more stable performance. 3 kW hybrid inverter combines the functionality of a traditional solar inverter with that of a battery storage system, enabling the integration of solar energy generation with energy storage capabilities.
Features:
- Combine power for self-use and grid connection.
- The priority supply sequence of solar, battery power, and city power can be set. It can synchronize with the electrical grid to either export excess power generated by the solar panels or to draw power from the grid when solar production is insufficient.
- The charging current can be adjusted according to a variety of battery types.
- Optional modes. grid-connected mode, off-grid mode, and grid-connected energy storage mode. Grid-connected mode excess solar power is fed back into the grid to offset energy consumption while also enabling battery backup functionality for critical loads during grid outages.
- The built-in timer in the hybrid inverter can set the machine's on/off time.
- The LCD panel of the hybrid solar inverter can display various detailed information.
- Configure multiple communication ports.
Details:

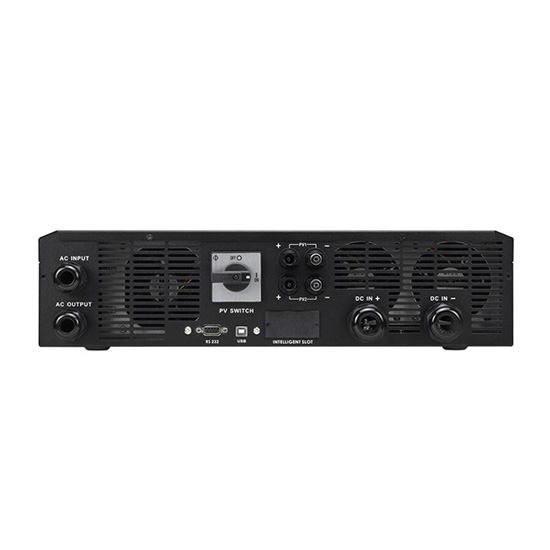

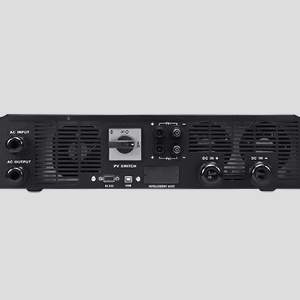

Multiple Communication Ports
Hybrid solar inverters are equipped with multiple communication ports that enhance their functionality and adaptability in renewable energy systems. This facilitates seamless integration and coordination between different components of the system, optimizing overall performance and efficiency.

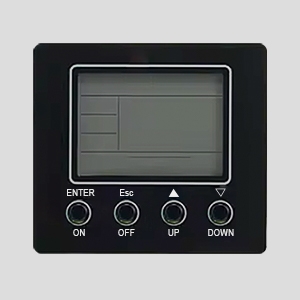

LCD Display
LCD provides clear and concise information about power generation, consumption, and system status of the off-grid hybrid inverter, aiding users in monitoring and managing energy usage effectively and empowering users to make informed decisions for better energy management.

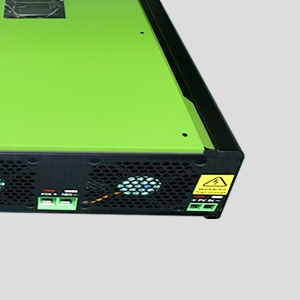

Dust Cover
By preventing accumulation on sensitive components, dust covers enhance the longevity and efficiency of the 3kW hybrid inverter, reducing maintenance requirements and potential malfunctions. contribute to maintaining optimal performance levels by minimizing the risk of overheating or electrical issues caused by dust infiltration.
Applications:
Photovoltaic Power Generation
Agriculture Industry
Home Appliance
Street Lighting
| Model | HZTOHZ-HSI-3kW48-230 | |
| Rated Power | 3000W | |
| PV INPUT (DC) | Maximum DC Power | 4500W |
| Nominal DC Voltage | DC 360V | |
| Maximum DC Voltage | DC 500V | |
| Start-up Voltage / Initial Feeding Voltage | 116V/150V | |
| MPP Voltage Range | DC 250V-DC 450V | |
| Maximum Input Current | 18A | |
| Isc PV (absolute maximum) | 18A | |
| Max. inverter back feed current to the array | 0A | |
| GRID OUTPUT (AC) | Nominal Output Voltage | AC 208/220/230/240V |
| Output Voltage Range | AC 184V-265V | |
| Output Frequency Range | 47.5-51.5Hz~59.3-60.5Hz | |
| Nominal Output Current | 13A | |
| Inrush Current/Duration | 17A | |
| Maximum Output Fault Current/Duration | 51A | |
| Maximum output Overcurrent Protection | 51A | |
| Power Factor Range | 0.9 lead - 0.9 lag | |
| AC INPUT | AC Start-up Voltage | AC 120V-140V |
| Auto Restart Voltage | AC 180V | |
| Acceptable Input Voltage Range | AC 170V-280V | |
| Nominal Frequency | 50Hz / 60Hz | |
| AC Input Power | 5100VA / 5100W | |
| Maximum AC Input Current | 30A | |
| Inrush Input Current | 30A | |
| BATTERY MODE OUTPUT (AC) | Nominal Output Voltage | AC 208/220/230/240V |
| Output Frequency Range | 50 Hz / 60 Hz (auto sensing) | |
| Output Waveform | Pure sine wave | |
| Output Power | 3000VA/3000W | |
| Output Current | 14.4A/13.6A/13A/12.5A | |
| Efficiency (DC to AC) | 92% | |
| BATTERY & CHARGER (Lead-acid/Li-ion) | Nominal DC Voltage | DC 48V |
| Maximum Battery Discharging Current | 92A | |
| Maximum Charging Current | 25A | |
| GENERAL PHYSICAL | Dimension, D*W*H (mm) | 480*438*117 |
| Net Weight (kgs) | 15.57 | |
| INTERACE | Communication Port | RS-232/USB |
| Intelligent Slot | Optional SNMP, Modbus, and AS-400 cards available | |
| ENVIRONMENT | Protective Class | I |
| Ingress Protection Rating | IP20 | |
| Humidity | 0 ~ 90% RH (No condensing) | |
| Operating Temperature | 0 to 40°C | |
| Altitude | 0-1000m* | |
