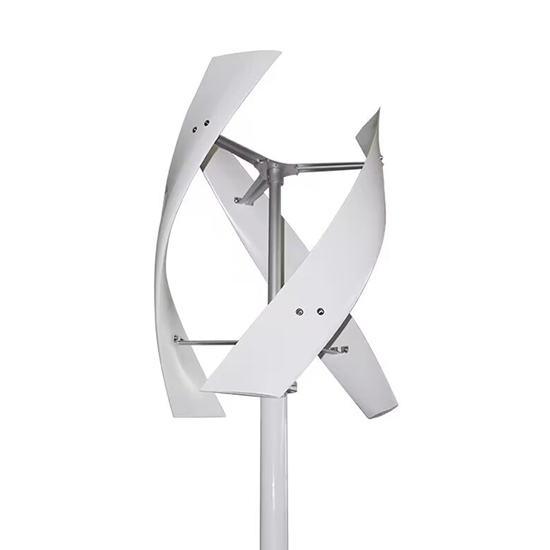

300W Vertical Axis Wind Turbine, 12V/24V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-VAWT-X3-300
- Weight: 1.00
- SKU: HZTOHZ-VAWT-X3-300
Buy the high-efficiency 300W vertical axis wind turbine online and with its advanced blade design, the turbine produces more power and less noise, making it a quiet and reliable source of renewable energy. The 300W vertical axis wind turbine is suitable for residential and commercial use.
Specification
| Model | HZTOHZ-VAWT-X3-300 |
| Rated Power | 300W |
| Rated Voltage | 12V/24V |
| With Controller | Yes |
| Start-Up Wind Speed | 2m/s |
| Rated Wind Speed | 12m/s |
| Survival Wind Speed | 50m/s |
| Wind Wheel Diameter/Height | 0.55m/0.75m |
| Number of Blades | 3 |
| Blades Material | Nylon |
| Fuselage Material | Aluminum alloy |
| Magnetic Steel | NdFeB |
| Generator Type | Three-phase AC permanent magnetically suspended generators |
| Controller System | Electromagnetic brakes |
| Speed Regulation | 360° Automatically Adjust Windard |
| Installation Flange | DN20 |
| Degree of protection | IP54 |
| Gross Weight | 10kg |
| Top Net Weight | 11kg |
| Dimension | 86*38*20mm |

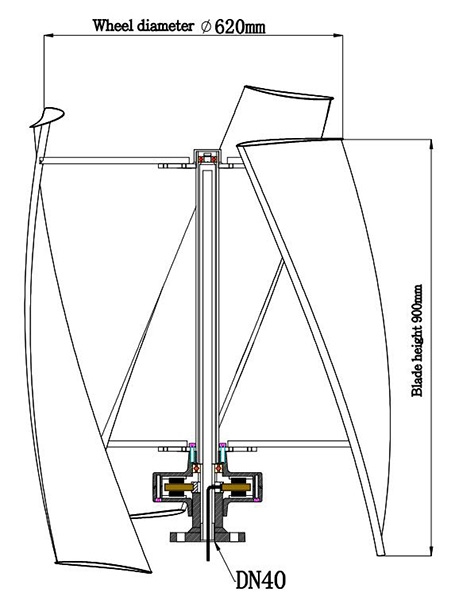

Dimension (Unit: mm)

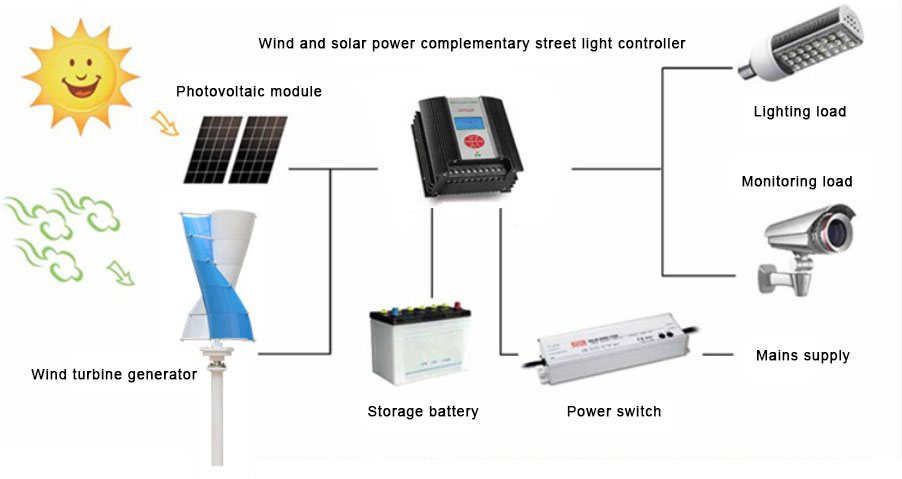

Applications
The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.
Tips: How noisy are vertical wind turbines?
Vertical wind turbines can produce some noise, but it is usually not significant or noticeable. Most vertical wind turbines produce low-frequency sounds that are less noticeable than the high-pitched sounds produced by horizontal wind turbines. Some vertical wind turbines are designed to reduce noise even further, by using sound-absorbing materials or strategically placing them in locations that will minimize their noise impact. The amount of noise produced by a vertical wind turbine depends on several factors, such as its size, location, and the speed of the wind. However, in general, vertical wind turbines are considered to be relatively quiet and can be used in urban areas without causing excessive noise pollution.
