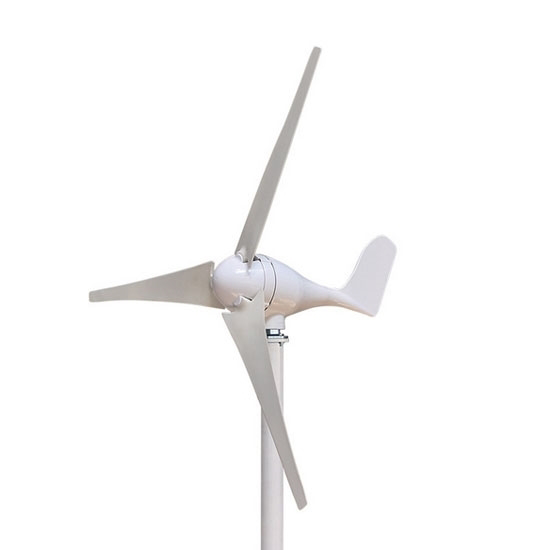

300W Horizontal Axis Wind Turbine, 12V/24V
New
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
300W Horizontal Axis Wind Turbine, 12V/24V
from
$361.84
Ex Tax: $361.84
- Stock: In Stock
- Model: HZTOHZ-WT-S300
- Weight: 1.00
- SKU: HZTOHZ-WT-S300
300W horizontal axis wind turbine with nylon fiber material. It has a casting aluminum alloy, electromagnet controller system. Built-in low speed 3 phase AC permanent magnet generator to effectively regulate current and voltage, high wind energy utilization.
Feature:
- Low starting wind speed, beautiful appearance, and low running vibration.
- Using humanized flange installation design, convenient installation, and maintenance.

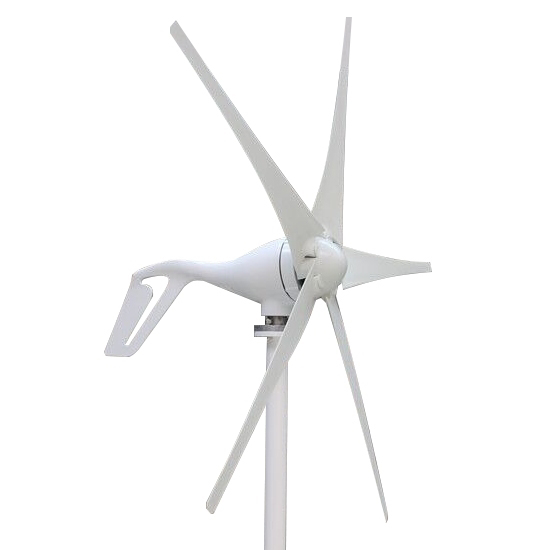

- The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
- The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
- Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
- Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.
Specification:
| Model | HZTOHZ-WT-S300 |
| Matched Controller Model | HZTOHZ-WTCMPPT-400 (Click it to the controller page) |
| Rated Power | 300W |
| Maximum Power | 330W |
| Rated Voltage | 12V/24V |
| Start-Up Wind Speed | 2.5 m/s, 2.3 m/s, 2.0 m/s |
| Rated Wind Speed | 12 m/s |
| Survival Wind Speed | 50 m/s |
| Wheel Diameter | 1.35m |
| Blades Number | 3 / 5 / 6 |
| Length of Blades | 650mm / 600mm / 580mm |
| Blades Material | Nylon Fiber |
| Generator | Three-Phase Permanent Magnet AC Generator |
| Magnetic Steel | NdFeB |
| Generator Case | Casting Aluminum Alloy |
| Controller System | Electromagnet / Wind Wheel Yaw |
| Speed Regulation | Automatically Adjust Windard |
| Installation Flange | DN20 |
| Working Temperature | -40°C~80°C |
| Gross Weight | 9.5kg / 9.5kg / 9.5kg |
| Top Net Weight | 8.6kg / 8.9kg / 9kg |
| Service Life | 15 years |
| Warranty | 18 months |
| Package Dimension | 680*280*210mm |

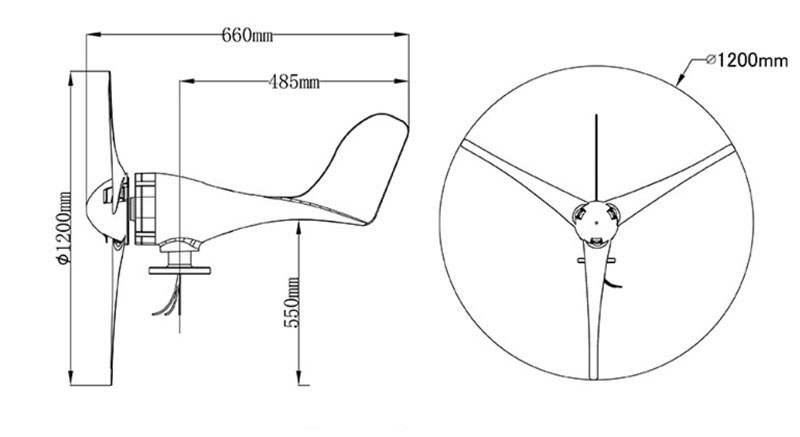

Dimension:

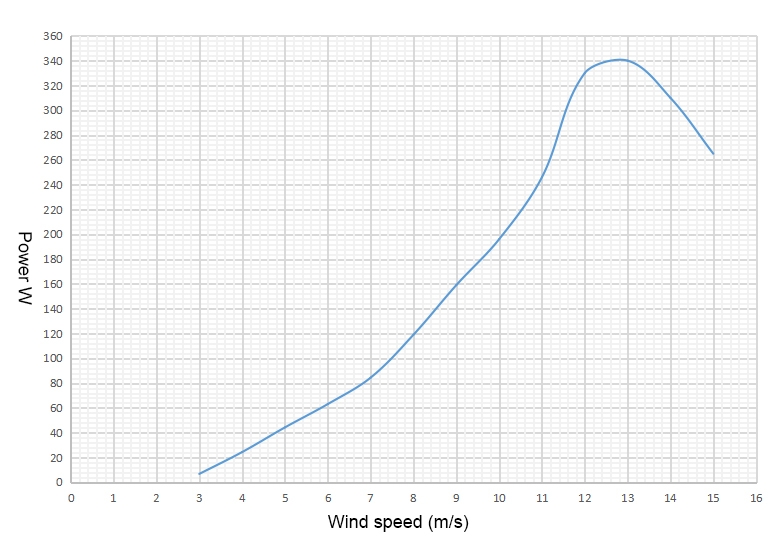

300W Wind Turbine Power Diagram:

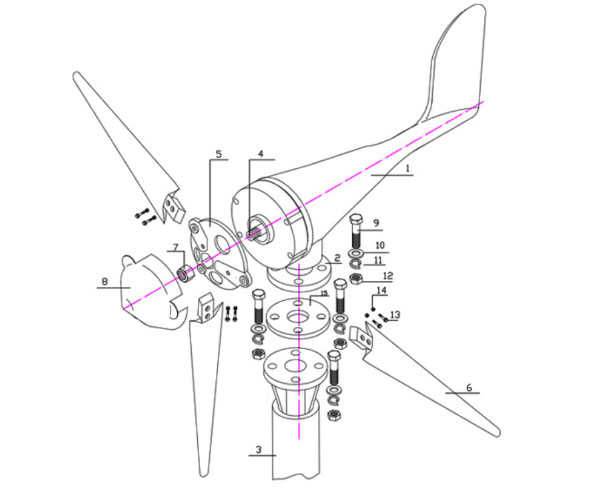

300W Wind Turbine (Flange Seat) Exploded View:
1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.
Tips: Why do you choose wind turbines?
- Wind energy resources are inexhaustible, the use of wind power can reduce environmental pollution, and save coal, oil, and other conventional energy.
- Wind power generation technology is mature, relatively low cost in renewable energy, and has broad prospects for development. Wind power generation technology can be applied flexibly.
- It can be connected to the grid or operated independently from the grid. It can also be combined with other energy technologies to form complementary power generation systems.
- Small wind turbines can provide electricity for production and living in remote areas.
