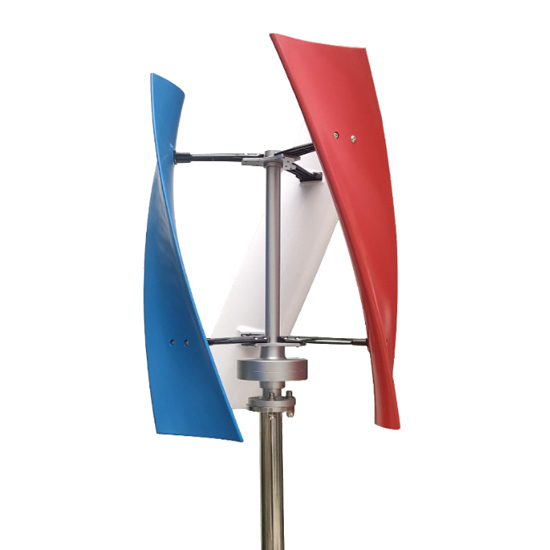

200W Vertical Axis Wind Turbine, 12V/24V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-VAWT-X3-200
- Weight: 1.00
- SKU: HZTOHZ-VAWT-X3-200
Buy a high-efficiency 200 watt vertical axis wind turbine with a wind speed rating of 12m/s and a service life of up to 20 years. Small vertical wind turbines provide low torque, efficient current, and voltage regulation for domestic use, road lighting, landscape lighting, and traffic monitoring.
Specification
| Model | HZTOHZ-VAWT-X3-200 |
| Rated Power | 200W |
| Rated Voltage | 12V/24V |
| With Controller | Yes |
| Start-Up Wind Speed | 2m/s |
| Rated Wind Speed | 12m/s |
| Survival Wind Speed | 50m/s |
| Wind Wheel Diameter/Height | 0.55m/0.75m |
| Number of Blades | 3 |
| Blades Material | Nylon |
| Fuselage Material | Aluminum alloy |
| Magnetic Steel | NdFeB |
| Generator Type | Three-phase AC permanent magnetically suspended generators |
| Controller System | Electromagnetic brakes |
| Speed Regulation | 360° Automatically Adjust Windard |
| Installation Flange | DN20 |
| Degree of protection | IP54 |
| Gross Weight | 9.5kg |
| Top Net Weight | 10.5kg |
| Dimension | 860*380*200mm |

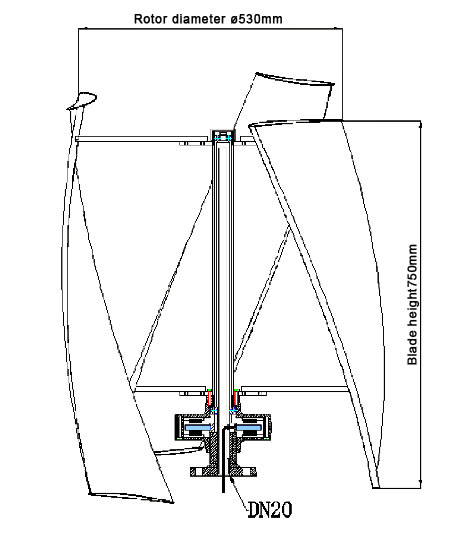

Dimension (Unit: mm)
Applications

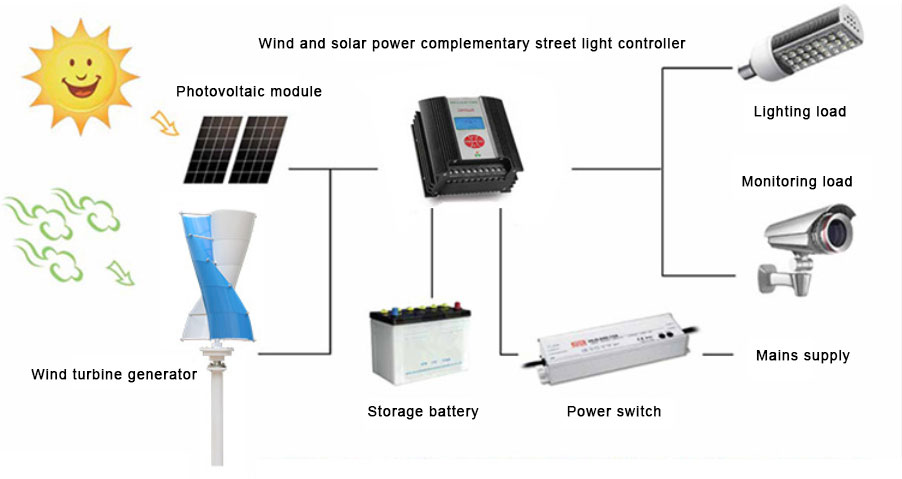

The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.
Tips: Horizontal or vertical wind turbine, which is better?
Horizontal-axis wind turbines (HAWT) are the most common type of wind turbine and are characterized by having blades that rotate around a horizontal axis. HAWTs are more efficient than vertical-axis wind turbines (VAWTs) in areas with strong and consistent winds. HAWTs are also easier to maintain and repair, and they can be located further away from residential areas, reducing noise pollution.
On the other hand, vertical-axis wind turbines (VAWT) have blades that rotate around a vertical axis, and they are better suited for urban and low-wind areas. They are also more compact, making them easier to install in tight spaces. VAWTs are also less affected by turbulence, so they can be located closer to buildings and other structures.
In conclusion, both horizontal and vertical wind turbines have their advantages and disadvantages, and the best choice depends on the specific needs and conditions of the installation site.
