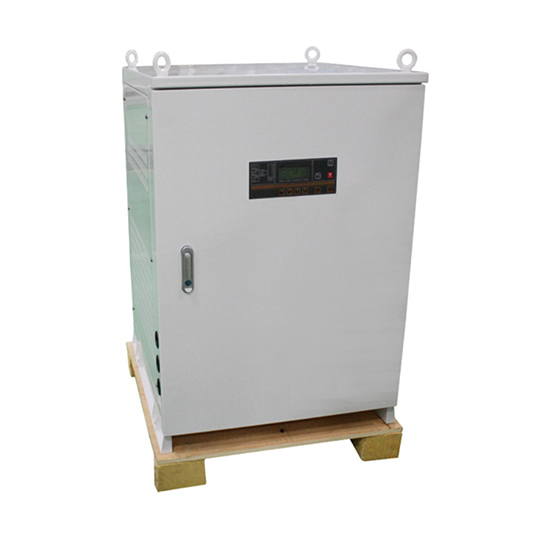

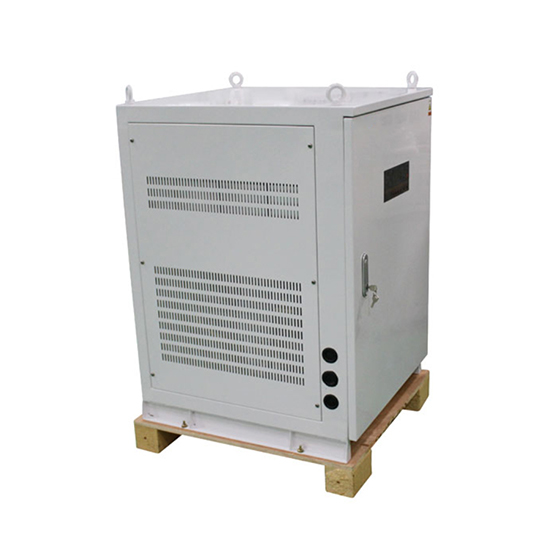

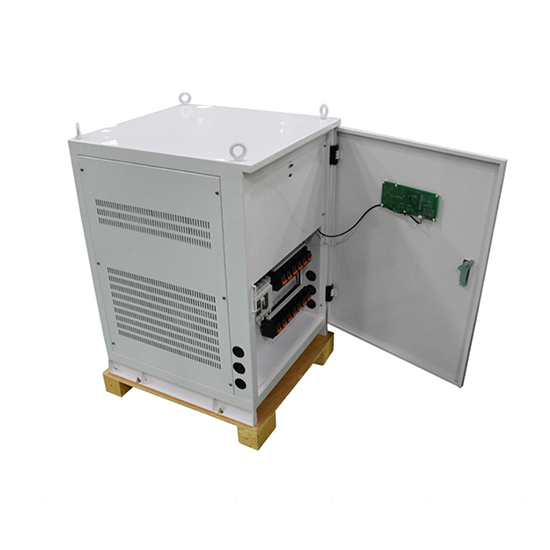

25kW Three Phase Grid Tie Solar Inverter
from
$3,992.00
Ex Tax: $3,992.00
- Stock: In Stock
- Model: HZTOHZ-GTI-TLC25000
- Weight: 1.00
- SKU: HZTOHZ-GTI-TLC25000
Brand new 25kW on grid inverter for 3-phase 4 line grid tied solar system, with 2 high efficiency MPPT, converting 200-820V wide input to 208-480V wide output. A pure sine wave grid tie solar inverter has many outstanding advantages, such as compact size, long service life, easy installation and maintenance, and most of all, competitive prices. 25kW three phase pv grid connected inverter is an essential component in converting and integrating solar energy into the existing power grid, supporting both energy efficiency and renewable energy adoption.
Features:
- LCD is convenient for the user to monitor the main parameters of the grid tie inverter.
- On-grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
- Strong IP65 protection and a completely sealed cover suitable for harsh environments.
- The on-grid inverter adopts no isolation transformer H6 full-bridge configuration, with the highest efficiency reaching 97%.
- Multiple inverters can be operated in parallel and support various communication modes.
- Advanced MPPT tracking technology and wide MPPT voltage range, which optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.
Details:

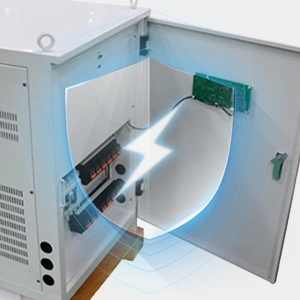

Multiple Protection
It enhances system reliability and safety by safeguarding against over-voltage, under-voltage, over-current, and short circuits. This protection ensures consistent performance, minimizes downtime, and extends the lifespan of both the solar on-grid inverter and connected equipment. It helps in maintaining grid stability by preventing disturbances caused by inverter malfunctions. Also, it can prevent costly damage and reduce maintenance expenses.
IP65 Protection
It ensures complete protection against dust ingress, enhancing the inverter's reliability and longevity in harsh environments. IP65 rating also protects against low-pressure water jets from any direction, allowing the grid tie PV inverter to be installed outdoors without risk of water damage. IP65 protection increases durability, reduces maintenance needs, and ensures stable performance in challenging conditions.

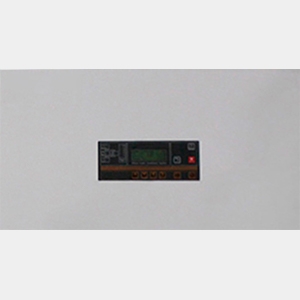

LCD Display
It provides real-time monitoring and feedback on the grid tie solar inverter system's performance, allowing users to quickly identify any issues or anomalies. This promotes efficient troubleshooting and maintenance and enhances the user interface, allowing for easy configuration and adjustment of settings for optimal performance.
Applications:
Irrigation System
New Energy Field
Medical Devices
Industrial Automation
| MODEL | HZTOHZ-GTI-TLC25000 | |||||
| DC INPUT | Max. DC Input Power | 27000 watt | ||||
| Max. DC Input Voltage | 850V DC | |||||
| Max. DC Input Current | 65A | |||||
| MPPT Tracking Voltage Range | 200-820V | |||||
| MPPT Tracking Number / Each Input String Number | 1 | |||||
| Power ON / OFF Voltage | 200V / 300V | |||||
| Input Terminal | MC4 | |||||
| AC OUTPUT | Power | 25kW | ||||
| Output Voltage | Default AC 3-phase 380V±5%, (Optional: 208V, 240V, 460V, 480V with ±5% tolerance) | |||||
| Frequency | 50Hz / 60Hz | |||||
| Phase | 3 phase 4 line (3L+N+PE) | |||||
| Power Factor | 0.9 | |||||
| Maximum Current | 38A | |||||
| Current THD | At rated power and in the sine wave ＜3.5% | |||||
| Max. Efficiency | 98.6% | |||||
| MPPT Efficiency | 99.5% | |||||
| Output Terminal | Connect terminals | |||||
| STRUCTURE | Protection Degree | IP65 | ||||
| Cooling Method | Cooling fan | |||||
| Topology | No transformer | |||||
| Noise | <> | |||||
| Data Interfaces | RS485C / RS232 (Standard) / WiFi Module (Optional) | |||||
| Isolation Type | Non-isolated | |||||
| Standby Power Consumption | <> | |||||
| Display | LCD | |||||
| DC Switch | Integration | |||||
| AC Switch | Integration | |||||
| Protection Functions | DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi, Flexible solar panel | |||||
| ENVIRONMENT | Operation Temperature | Air Flow, -10℃~40℃ | ||||
| Storage Temperature | -20℃~60℃ | |||||
| Relative Humidity | 0~100% | |||||
| Altitude | 2000m, max 3000m | |||||
| OTHERS | Size (W*H*D) | 550*850*260mm | ||||
| Weight | 96kg for 380V, 265kg for other customized voltages | |||||
| Certificate | IEC | |||||
| Warranty | 5 years | |||||
