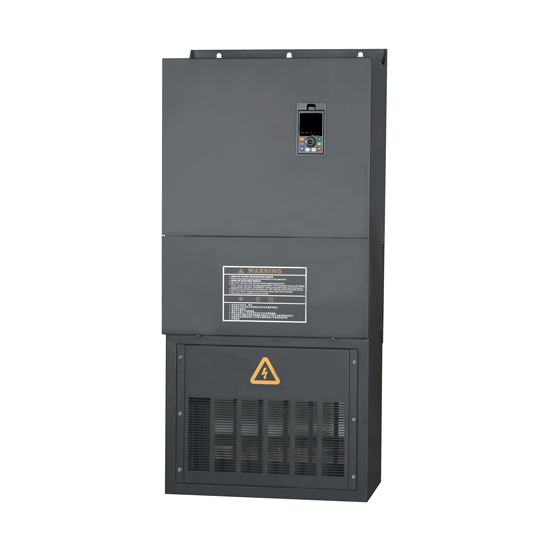

220 KW Frequency Inverter, 3 Phase 220V, 415V, 460V
Free Shipping
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
220 KW Frequency Inverter, 3 Phase 220V, 415V, 460V
from
$9,813.41
Ex Tax: $9,813.41
- Stock: In Stock
- Model: GK3000-4T2200G
- Weight: 1.00
- SKU: GK3000-4T2200G
220 kW 300 hp variable frequency drive inverter, input voltage three phase 220V, 415V, 460V AC for selection, tracking motor speed in real time to protect the motor from impact. Output frequency 0~1000Hz and speed regulation 1:100. Come with force cooling fan, 3 phase inverter has good heat dissipation function to protect internal parts.
Feature
- High efficient 3 phase inverter with RS485 communication mode, input frequency reaches 50Hz or 60Hz. Durable shell and reliable performance.
- 3 phase variable frequency drive has frequency precision, digital setting: max frequency x± 0.01%; analog setting: max frequency x± 0.2%.
- With an IP 20 protection rating, three phase inverter can limit running current automatically to avoid frequent over-current which will cause trips.
- 220 kW variable frequency drive inverter renewable energy systems, industrial motor drives, HVAC systems electric vehicles (EVs), and uninterruptible power supplies (UPS).
Details
Multiple Function Keyboard
The multiple-function keyboard of 300 hp frequency drive inverters can control the operation of the 220 kW inverter, such as start, stop, and acceleration. The customer can press the buttons to make the 3 phase inverter work according to set the variable frequency inverter parameters or control the frequency inverter machine's operating speed.
Electronic Screen
The electronic screen of the 220 kW frequency inverter is a key component in the 3 phase variable frequency drive control system, providing users with an intuitive and real-time information display. The electronic screen can monitor the operating status of the frequency inverter in real-time, including input and output voltage, frequency, and current waveform, which helps to detect abnormal conditions in time.
Rugged Casing
The 3 phase frequency drive inverter's rugged casing plays multiple roles in its design. It is not only about protecting the circuits and internal components inside the device but also about the safety, stability, and reliability of the device. The high frequency inverter not only protects the internal circuits and components but also provides safety protection.
Applications
Car Manufacturer
Ship Operation
Energy Generation
Building Construction
| Basics | Model | GK3000-4T2200G/GK3000-2T2200G |
| Capacity | 220 kW (300 hp) | |
| Shipping weight | 180 kg | |
| Dimension | 1440*600*399 mm | |
| I/O Feature | Rated current | 426A at 380V ~ 480V, 820A at 220V ~ 240V |
| Input voltage | Three phase 240V /415V /460V AC ±15% (Optional) | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | Three phase AC 0~input voltage | |
| Output frequency | 0~1000Hz | |
| Over load capacity | 150 % of rated current for 1 minute, 200 % of rated current for 1 seconds | |
| Control Feature | Control mode | V/F control; Sensorless vector control; |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running: 5.9m/s2 (0.6g); Transportation: 15m/s2 (1.5g) | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
