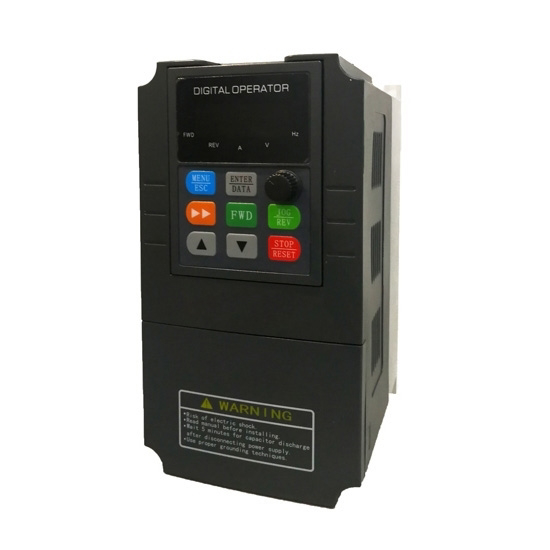

2.2 KW Single Phase To Three Phase Frequency Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: GK3000-2S0022
- Weight: 1.00
- SKU: GK3000-2S0022
1 phase to 3 phase inverter, comes with IP20 protection and usually applies for power tools, fans, pumps, etc. Equipped with an electronic screen with clear fonts, it can monitor value changes at any time and facilitate the adjustment of the frequency inverter.
Feature
- 2.2kw frequency inverter input frequency 50Hz/60Hz, output frequency 0Hz~1000Hz. The inverter has a digital display to show the setting frequency, output voltage, output current, etc.
- Variable frequency drive single phase to 3 phase has multiple protection functions, such as over-current protection, overvoltage protection, under-voltage protection, overload protection, overload protection, etc.
- Equipped with a cooling fan and IP20 protection, inverter 1 phase to 3 phase works at (–10℃, 40℃).
Details

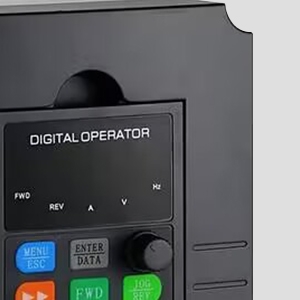

Digital Display
The electronic screen of the 2.2 kw frequency inverter displays clear fonts. The digital inverter indicators of the single phase inverter to three phase will display the corresponding inverter operating conditions. It can monitor real-time inverter data changes, and improve safety performance.

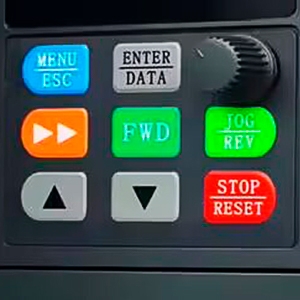

Multi-function Button
Equipped with multi-function keys, the 2.2kw single phase to 3 phase inverter has menu/exit, forward, up/down keys, and stop/reset. Multiple functional keys of the inverter converting single phase to 3 phase are very convenient to adjust the inverters' parameters and operating status at any time.

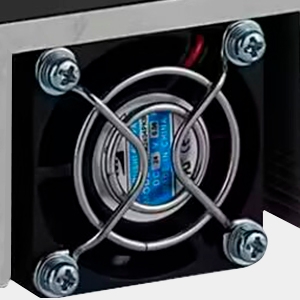

Cooling Fan
The intelligent cooling fan installed in the 3hp inverter single phase to three phase introduces cooling air into the frequency inverter. It can reduce the inverter component temperature, protect the devices from damage, and prolong variable frequency inverter's service life.
Applications
Medical Equipment
Solar Power Generation
Electric Vehicle Charging
Office Equipment
| Basics | Model | GK3000-2S0022 |
| Capacity | 2.2 kW (3 hp) | |
| Shipping weight | 3 kg | |
| Dimension | 184*98*135 mm | |
| I/O Feature | Rated current | 9.6 A |
| Input voltage | 1 phase 220V AC ±15% | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0Hz~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC) |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running:<5.9m 2="" (0.6g);=""><15m 2=""> | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
