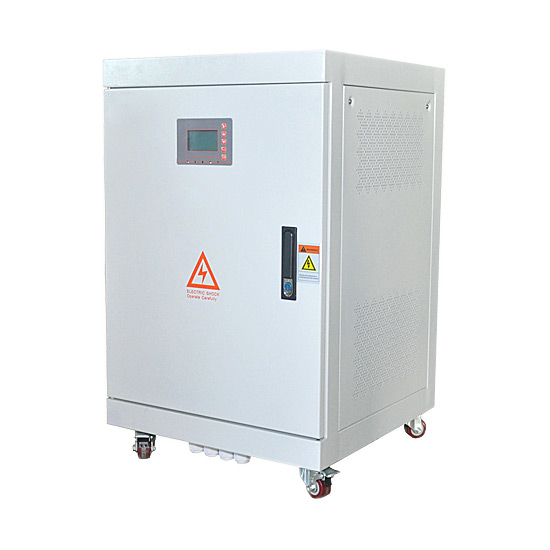

10kW Pure Sine Wave Off Grid Solar Inverter
from
$5,087.54
Ex Tax: $5,087.54
- Stock: In Stock
- Model: HZTOHZ-OGI-10kW
- Weight: 1.00
- SKU: HZTOHZ-OGI-10kW
10kW off grid no battery inverter for solar power system, with strong load capacity, good transient response, 230V/ 240V/ 400V AC stable output voltage, pure sine wave full power output, low waveform distortion. Grid off inverter is an essential component of an off-grid power system, enabling the use of AC power in environments without a connection to the electrical grid. The pure sine wave inverter plays a crucial role in maintaining a stable, reliable power supply by managing the flow of electricity between the solar panels, batteries, and AC appliances.
Features:
- Two kinds of start modes: Step-down voltage start and variable frequency start. Customers can set start mode according to the type of their load.
- The output voltage can be set between -40 % to +20 % of the rated voltage. And the output voltage with an accuracy ±1%.
- Pure sine wave output. With a good dynamic response of less than 50MS, the waveform distortion rate is smaller, with higher conversion efficiency and stable output voltage.
- Adopts a black pure aluminum radiator, which confirms the best radiating performance.
- Powerful data display function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, power consumption (kWH), time and date, temperature, and fault code display.
- Wide input voltage can work without battery and solar charge controller, save more cost, and with MPPT wide voltage input function, maximum use of solar power.
Details:

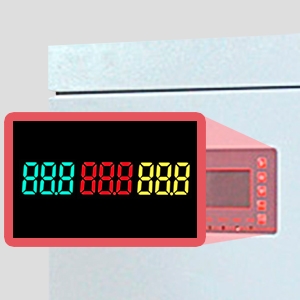

LCD Display
It enhances user experience by offering straightforward control and configuration options, often through a user-friendly interface. It provides clear and easy-to-read information on the inverter's status, such as voltage, current. The display can show error codes and alerts, enabling timely troubleshooting and maintenance of 10kw off grid inverter. And an LCD display consumes minimal power.

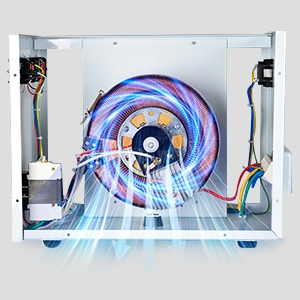

High Speed Cooling Fan
Solar inverter generates heat during operation due to power conversion. Cooling fan improves cooling efficiency, which helps regulate the temperature and prevents overheating of off grid pv inverter. High speed fan ensures stable operation even in hot environments, reducing the risk of unexpected shutdowns. Fan can operate at varying speeds based on the inverter's load, making it energy efficient.

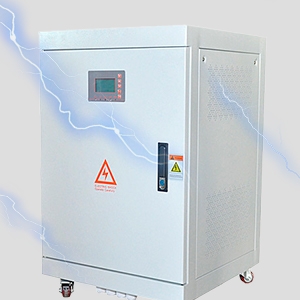

Multiple Protection Function
Short-circuit protection quickly detects and isolates faults, preventing damage to the inverter and other connected devices. Over-voltage and under-voltage protection ensure that the grid off inverter operates within safe voltage ranges, protecting the system from fluctuations. these protection functions enhance the safety, reliability, and longevity of off-grid inverters and the systems they support.
Applications:
Home Use
Remote Location
Commercial Use
Precision Machinery
| Model | HZTOHZ-OGI-10kW | |||||||
| Size (D*W*H) | 450*550*760mm | |||||||
| Weight | 145kg | |||||||
| Certificate | CE, UL, SA, SAA, VDE | |||||||
| Warranty period | 12 months | |||||||
| AC Input | Rated voltage | AC input voltage is the same value as the AC output | ||||||
| DC Input | Rated voltage | 96V/ 108V/ 120V/ 192V DC (can be customized) | ||||||
| Rated current | 52A @192V DC | |||||||
| AC Output | Rated output power | 10kW | ||||||
| Output waveform | Pure sine wave | |||||||
| Rated voltage | 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 460V/ 480V (optional) | |||||||
| Phase | 3 phase 4 wire+PE wire (single phase/ split phase can be customized, please contact us by email) | |||||||
| Rated phase current | 15A @380V AC | |||||||
| Frequency | 50Hz or 60Hz | |||||||
| Power factor | >0.99 | |||||||
| Overload ability | 150%, 5 seconds | |||||||
| Efficiency | >93% | |||||||
| Waveform distortion rate | THD<> | |||||||
| Dynamic response (0 to 100% load) | 5%, ≤50ms | |||||||
| Display | LCD | |||||||
| Running mode | Working continuously | |||||||
| Electrical insulation properties | 2000Vac, 1min | |||||||
| Communication interface | RS485 (optional), can remote control the start/stop of the inverter and convey the data as below: 1. Input DC current 2. Input DC voltage 3. Output AC current 4. Output AC voltage 5. Power consumption (kWH) 6. Some fault information | |||||||
| Battery charging function | Can be customized, please contact us | |||||||
| Protection Function | Protection | Input reverse polarity, under voltage, over-voltage, output over-current, short circuit, overheating | ||||||
| Cooling method | Fan-cooled | |||||||
| Short-circuit protection | No automatic recovery, need to restart the machine | |||||||
| Working Environment | Noise (1 meter） | ≤50dB | ||||||
| Degree of protection | IP20 (indoor) | |||||||
| Working altitude | ≤2000m | |||||||
| Working temperature | -25~+55℃ | |||||||
| Relative humidity | 0~90%, non-condensing | |||||||
| Note | The above parameters are for reference only, and can be customized according to the customer's requirement! | |||||||
