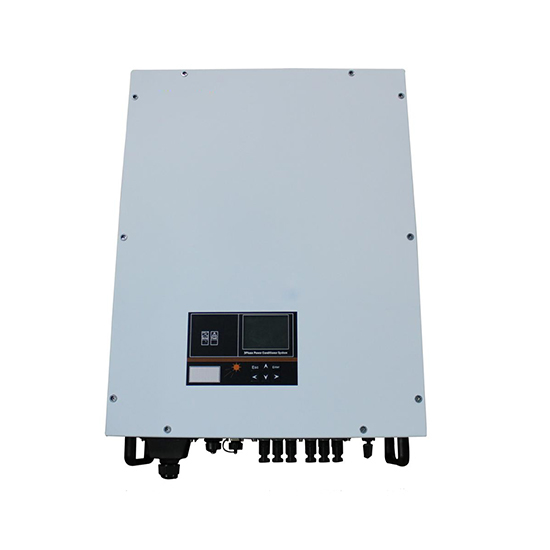

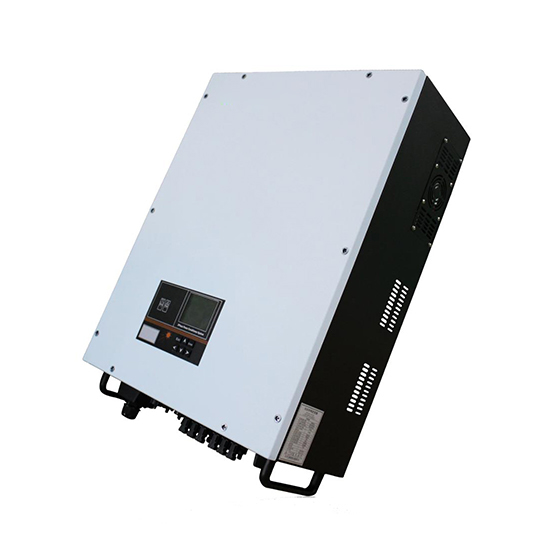

15kW Three Phase Grid Tie Solar Inverter
from
$3,174.54
Ex Tax: $3,174.54
- Stock: In Stock
- Model: HZTOHZ-GTI-TLC15000
- Weight: 1.00
- SKU: HZTOHZ-GTI-TLC15000
Low frequency 50Hz/60Hz on grid tie solar inverter with 15kW power, wide input voltage range and high efficient MPPT more than 99%, high reliability due to perfect protection function, can power all kinds of applicances in home or office environment including motor-type applicances such as tube light, fan, refrigerator and air conditioner. Key features of such on-grid inverters include maximum power point tracking (MPPT) to optimize the energy harvest from the solar panels, safety mechanisms to ensure compliance with grid regulations, and monitoring systems to track performance and energy production.
Features:
- LCD is convenient for the user to monitor the main parameters of the grid tie inverter.
- On-grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
- Strong IP65 protection and a completely sealed cover suitable for harsh environments.
- The on-grid inverter adopts with no isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
- Multiple inverters can be operated in parallel and support various communication modes.
- Advanced MPPT tracking technology and wide MPPT voltage range, which optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.
Details:

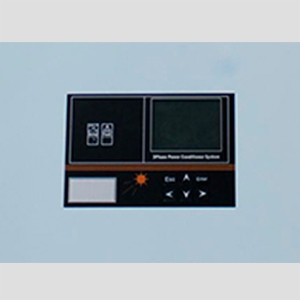

LCD Display
It provides real-time monitoring and feedback on the three-phase grid tie inverter system's performance, allowing users to quickly identify any issues or anomalies. This promotes efficient troubleshooting and maintenance and enhances the user interface, allowing for easy configuration and adjustment of settings for optimal performance.

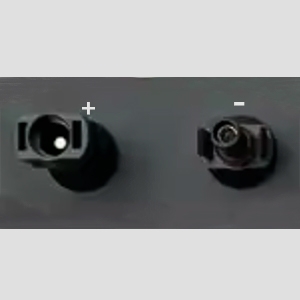

DC Input Connection
It enhances flexibility as DC input allows for easy integration with various renewable energy sources like solar panels or batteries, facilitating hybrid energy systems, improving the overall reliability of 15 kW grid tie pv inverter. DC input configurations enable easier implementation of maximum power point tracking (MPPT) algorithms, optimizing energy harvesting from solar arrays.

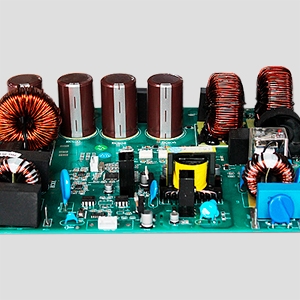

Precise Internal Construction
It improves reliability and longevity by reducing heat generation and stress on components, leading to a more durable system of grid tie inverter. Precise construction enables better control over voltage and frequency, ensuring stable and synchronized power delivery to the grid, which is crucial for maintaining grid stability and preventing disruptions.
Applications:

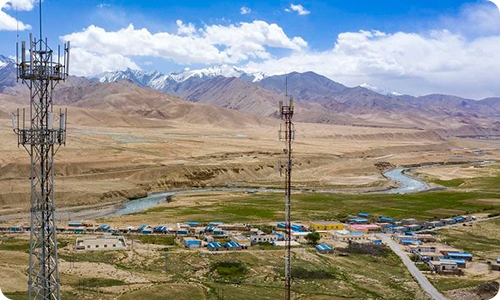

Remote Location

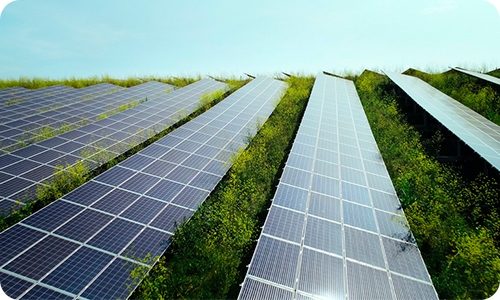

Solar Farm

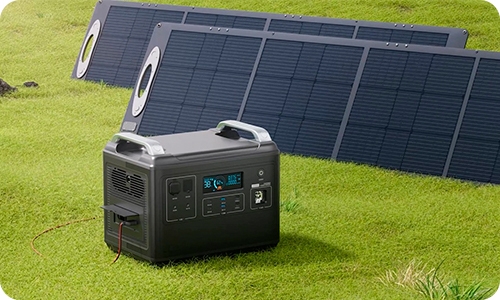

Battery Power

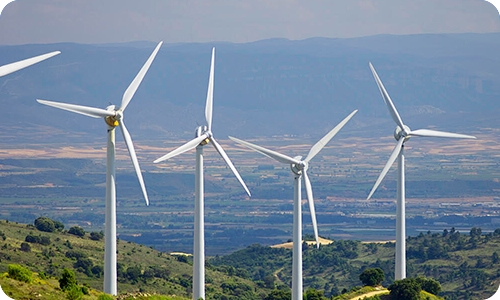

Wind Power
| MODEL | HZTOHZ-GTI-TLC15000 | |||||
| DC INPUT | Max. DC Input Power | 15600 watt | ||||
| Max. DC Input Voltage | 850V DC | |||||
| Max. DC Input Current | 35A | |||||
| MPPT Tracking Voltage Range | 200-820V | |||||
| MPPT Tracking Number / Each Input String Number | 1 | |||||
| Power ON / OFF Voltage | 200V / 300V | |||||
| Input Terminal | MC4 | |||||
| AC OUTPUT | Power | 15kW | ||||
| Output Voltage | Default AC 3-phase 380V±5%, (Optional: 208V, 240V, 460V, 480V with ±5% tolerance) | |||||
| Frequency | 50Hz / 60Hz | |||||
| Phase | 3 phase 4 line (3L+N+PE) | |||||
| Power Factor | 0.9 | |||||
| Maximum Current | 22A | |||||
| Current THD | At rated power and in the sine wave ＜3.5% | |||||
| Max. Efficiency | 98% | |||||
| MPPT Efficiency | 99.5% | |||||
| Output Terminal | Connect terminals | |||||
| STRUCTURE | Protection Degree | IP65 | ||||
| Cooling Method | Cooling fan | |||||
| Topology | No transformer | |||||
| Noise | <> | |||||
| Data Interfaces | RS 485C / RS232 (Standard) / WiFi Module (Optional) | |||||
| Isolation Type | Non-isolated | |||||
| Standby Power Consumption | <> | |||||
| Display | LCD | |||||
| DC Switch | Integration | |||||
| AC Switch | Integration | |||||
| Protection Functions | DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi, Flexible solar panel | |||||
| ENVIRONMENT | Operation Temperature | Air Flow, -10℃~40℃ | ||||
| Storage Temperature | -20℃~60℃ | |||||
| Relative Humidity | 0~100% | |||||
| Altitude | 2000m, max 3000m | |||||
| OTHERS | Size (W*H*D) | 440*610*260mm | ||||
| Weight | 70kg for 380V, 195kg for other customized voltages | |||||
| Certificate | CE / G83 / IEC / TUV / SAA | |||||
| Warranty | 5 years | |||||
