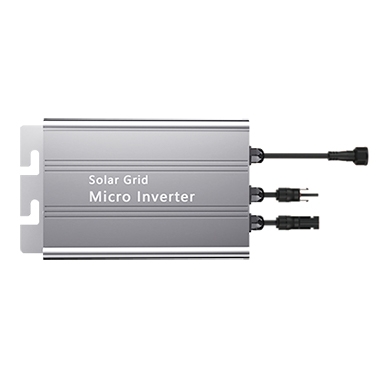

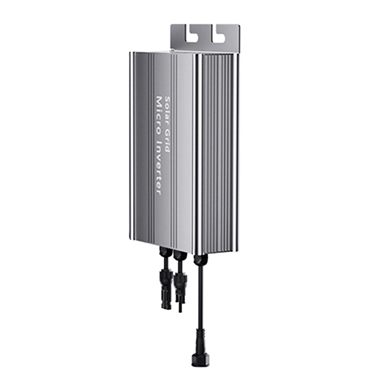

150 Watt Solar Micro Inverter, Grid-tie Inverter
from
$137.85
Ex Tax: $137.85
- Stock: In Stock
- Model: HZTOHZ-SMI-T-150
- Weight: 1.00
- SKU: HZTOHZ-SMI-T-150
The 150W rating refers to the maximum power it can handle from a panel. This size is typically used with smaller solar panels or systems designed for low-power applications. Micro grid inverters offer advantages like easier system scaling, improved safety due to lower DC voltage, and enhanced energy monitoring for individual panels. Solar grid tie micro inverter converts the direct current (DC) generated by a single solar panel into alternating current (AC), which can be used by household appliances or fed into the electrical grid.
Features:
- Maximum power point tracking. High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency..
- Safe use. Traditional central or string inverters often have direct current voltages of hundreds or thousands of volts, which can easily catch fire and cannot be easily extinguished after a fire. The micro inverters are only a few tens of volts of direct current and are all connected in parallel, minimizing safety hazards.
- Simple and convenient to use. The grid-connected inverter needs to be connected to the grid to use, the operation is simple and convenient for you to use.
- Maximize power. Possess a small size and small capacity, commonly used in small solar energy systems.
Details:

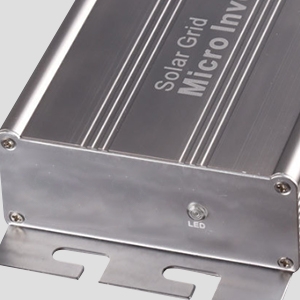

Aluminium Alloy Shell
It provides excellent heat dissipation, preventing overheating. Aluminum is lightweight, reducing the overall weight of the solar micro inverter and making installation easier. It offers strong corrosion resistance, enhancing durability in outdoor or harsh environments. Aluminum is non-magnetic, ensuring minimal interference with the inverter's electrical components. The material is cost-effective and recyclable, contributing to sustainability.

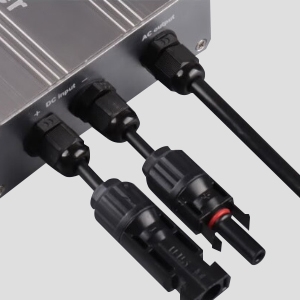

Terminal Post
In a 150W grid tie micro inverter, the positive and negative terminals play crucial roles in managing the flow of electricity from solar panels to the grid. The positive terminal connects to the higher voltage side, while the negative terminal connects to the lower voltage side, completing the electrical circuit. This design optimizes energy transfer, reduces power loss, and enhances safety by ensuring proper grounding.

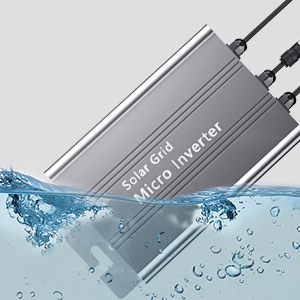

IP65 Waterproof Protection
IP65 waterproof protection in a PV micro inverter ensures that it is dust-tight and protected against low-pressure water jets from any direction. This is crucial for outdoor installations as it safeguards the inverter from harsh weather conditions like rain, humidity, and dust. The protection enhances the inverter's durability and reliability, reducing the risk of damage and maintenance costs.
Wiring Diagram:

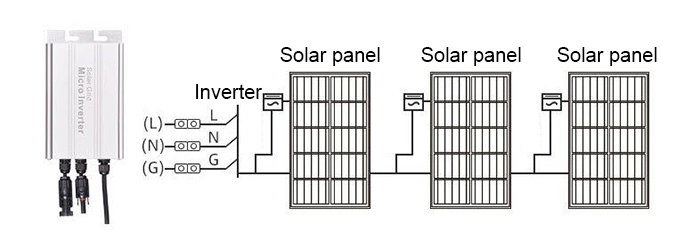

single-phase connection

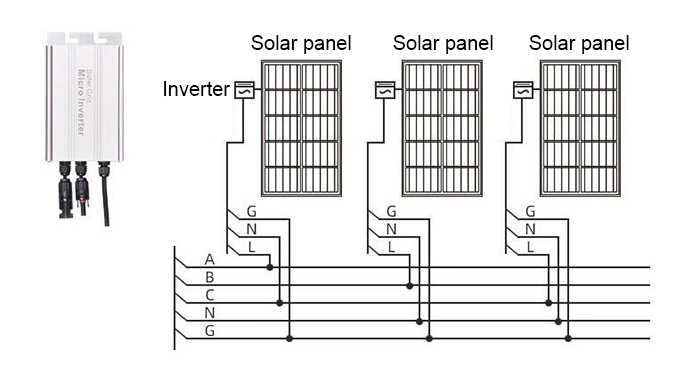

Three-phase connection
Applications:

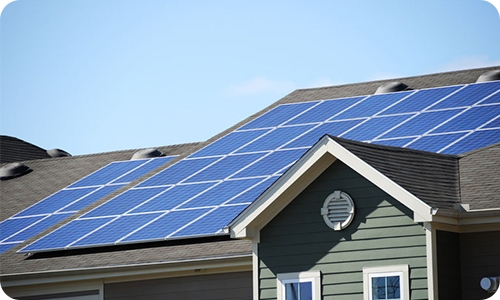

Solar Roof

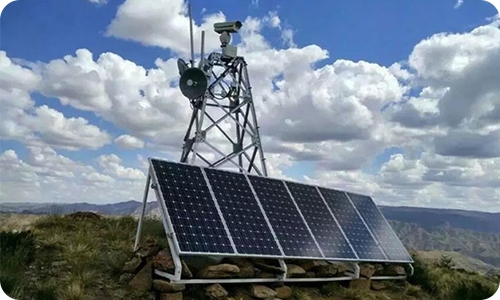

PV Communication Station

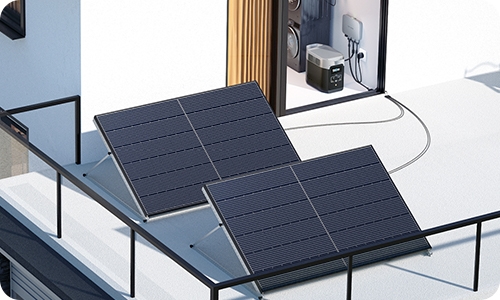

Photovoltaic Balcony

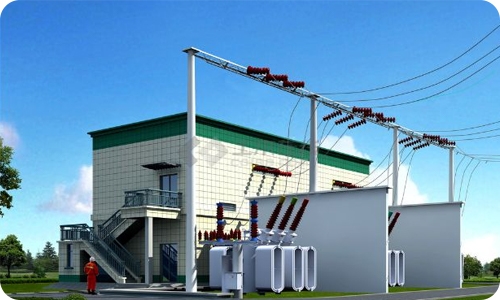

Small Power Station
| Model | HZTOHZ-SMI-T-150 |
| Operating voltage range | 10.8-30V |
| Starting voltage range | 12-30V |
| Starting voltage | 10.8V |
| Maximum input power | 150W |
| Maximum working current | 9.3A |
| Maximum allowed access to the power of photovoltaic panels | 150W |
| Recommend access parameters of photovoltaic panels | 18V@150W |
| Output parameters | @120VAC / @230VAC |
| Output peak power | 150W |
| Rated output power | 140W |
| AC voltage range | 80-160VAC / 180-280VAC |
| Output current | 1.08A / 0.56A |
| AC frequency range | @50Hz: 47Hz-53Hz ; @60Hz: 57Hz-63Hz |
| Power factor | ＞95% |
| Number of branch connections | 6PCS (single@120VAC); 12PCS (single@230VAC) |
| Output efficiency | |
| Static MPPT efficiency | 0.99 |
| Max output efficiency | 93% |
| Total current harmonics | THD＜5% |
| Loss of power at night | ＜0.5W |
| Appearance and technical features | |
| Temperature range | -20 ℃~65 ℃ |
| Storage temperature range | -40 ℃~75 ℃ |
| Waterproof grade | IP65 |
| Heat dissipation mode | self-cooling |
| Communication mode | none |
| Monitoring system | none |
| Power transmission mode | reverse transmission, load priority |
| Net amount | 0.45kg |
| Size | 108*110*45 mm |
