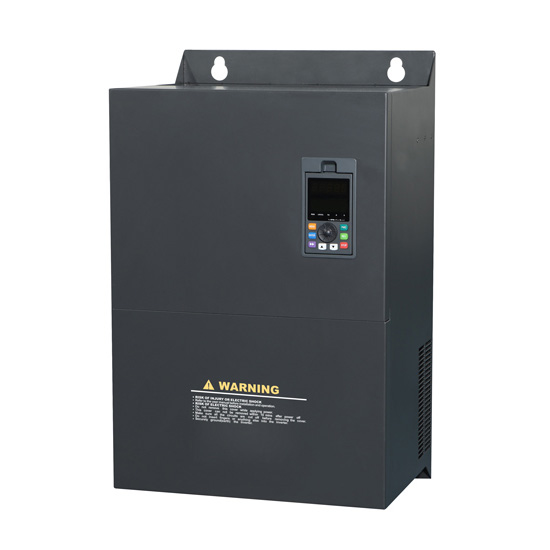

110 KW Frequency Inverter, 3 Phase 208V, 380V, 460V
from
$4,882.54
Ex Tax: $4,882.54
- Stock: In Stock
- Model: GK3000-4T1100G
- Weight: 1.00
- SKU: GK3000-4T1100G
110 kW frequency inverter for three phase electric motor speed control, three phase 220V, 415V, 480V vector control VFD. Come with RS485 communication, 3 phase motor inverter has multiple performance, including overcurrent protection, overvoltage protection, overheating protection, overload protection, etc.
Feature
- The 110kw 3 phase inverter with LED digital display, display setting frequency, output voltage, and output current can be shown in real time.
- The input frequency of the variable frequency inverter reaches 50Hz or 60Hz. Protection functions include overvoltage protection, under-voltage protection, overheating protection, overload protection, etc
- Come with an IP20 protection rating and forced air cooling, the 110 kW frequency drive inverter works at (-10℃, 40℃).
Details
Multiple Function Keyboard
The multiple-function keyboard of 150 hp variable frequency inverters controls the operation of the 3 phase motor inverter, such as start, stop, and acceleration. The customer can press the buttons to make the 3 phase motor inverter work according to set the frequency inverter parameters or control the three phase inverter machine's operating speed.
Electronic Screen
The electronic screen of the 110kw frequency inverter is a key component in the three phase inverter control system, providing users with an intuitive and real-time information display. The digital screen can monitor the operating status of the 150hp frequency inverter in real-time, including input and output voltage, frequency, and current waveform, which helps to detect abnormal conditions in time.
Rugged Casing
The 3 phase variable frequency drive inverter's rugged casing plays multiple roles in its design. It is not only about protecting the circuits and internal components inside the device but also about the safety, stability, and reliability of the device. The frequency drive inverter not only protects the internal circuits and components but also provides safety protection.
Applications
Car Manufacturer
Ship Operation
Energy Generation
Building Construction
| Basics | Model | GK3000-4T1100G/GK3000-2T1100G |
| Capacity | 110 kW (150 hp) | |
| Shipping weight | 85 kg | |
| Dimension | 760*485*324 mm | |
| I/O Feature | Rated current | 210A at 380V ~ 480V, 426A at 220V ~ 240V |
| Input voltage | 3 phase 230V /400V /480V AC ±15% (Optional) | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0~1000Hz | |
| Over load capacity | 150 % of rated current for 1 minute, 180 % of rated current for 3 seconds | |
| Control Feature | Control mode | V/F control; Sensorless vector control; |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running: 5.9m/s2 (0.6g); Transportation: 15m/s2 (1.5g) | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
