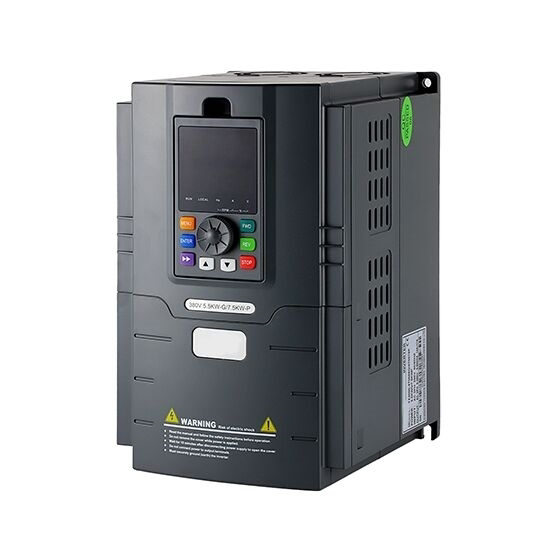

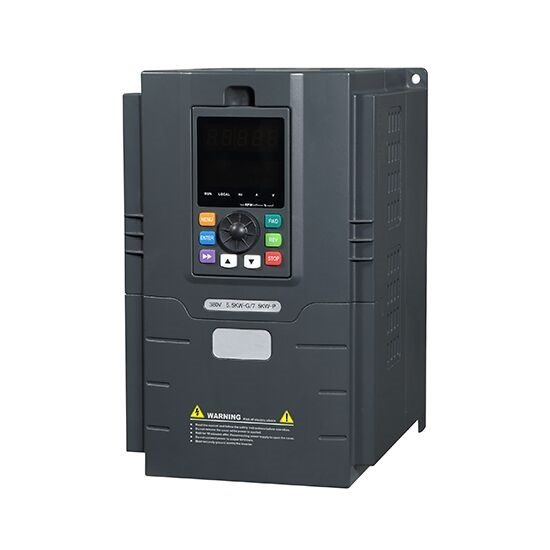

11 KW Single Phase To Three Phase Frequency Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: GK3000-2S0110
- Weight: 1.00
- SKU: GK3000-2S0110
11 kW (15hp) frequency inverter, single phase to 3 phase inverter for three phase AC motor speed control, usually used for small motors, pumps, and fans. IP20 enclosure rating, intelligent cooling fan, and RS485 communication. Excellent heat dissipation function and stable performance. It is usually applied for small industrial equipment, commercial buildings, agricultural applications, etc.
Feature
- Equipped with LCD with clear font and moderate size. The screen mounting of the single phase to 3 phase inverter is benefit to monitor the operation status in real time.
- The enclosure of the inverter single phase to three phase is IP20 rated for ruggedness and durability.
- A cooling fan maintains the optimum operating temperature inside the frequency inverter, preventing high temperatures from damaging the internal components and prolonging their service life.
- The variable frequency drive single phase to 3 phase with RS485 communication mode can adjust the output frequency and voltage to realize precise speed regulation of the motor, which improves the operation efficiency and energy saving.
Details

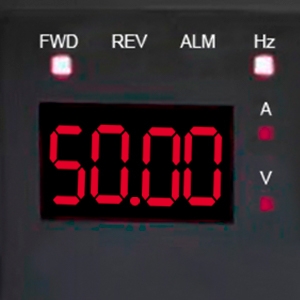

Digital Display
The LCD screen of the inverter single phase to three phase displays clear fonts. A 15hp inverter digital indicators of the single phase to 3 phase inverter will display the corresponding variable frequency drive inverter operating conditions, which can monitor real-time inverter data changes, and improve safety performance.

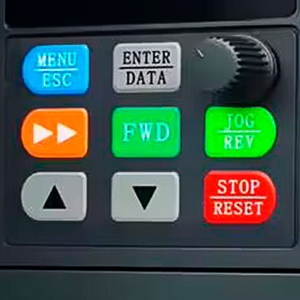

Multi-function Button
Come with multi-function keys, the frequency inverter from single phase to three phase has menu/exit, up/down keys, forward, and so on. Functional key of the inverter single phase to three phase is very convenient for adjusting the 15hp frequency inverters' parameters and operating status at any time.

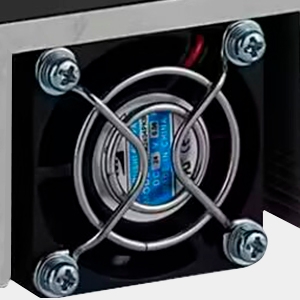

Cooling Fan
The intelligent cooling fan is installed in the 15hp single phase to three phase inverter, and it can introduce cooling air into single phase to three phase inverter, which can reduce the inverter's component temperature, protect devices from damage, and prolong inverter single phase to three phase's service life.
Applications
Medical Equipment
Solar Power Generation
Electric Vehicle Charging
Office Equipment
| Basics | Model | GK3000-2S0110G |
| Capacity | 11 kW (15 hp) | |
| Shipping weight | 18 kg | |
| Dimension | 423*258*230 mm | |
| I/O Feature | Rated current | 45 A |
| Input voltage | 1 phase 220V AC ±15% | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0Hz~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC) |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% | |
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz | |
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running:<5.9m 2="" (0.6g);=""><15m 2=""> | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
