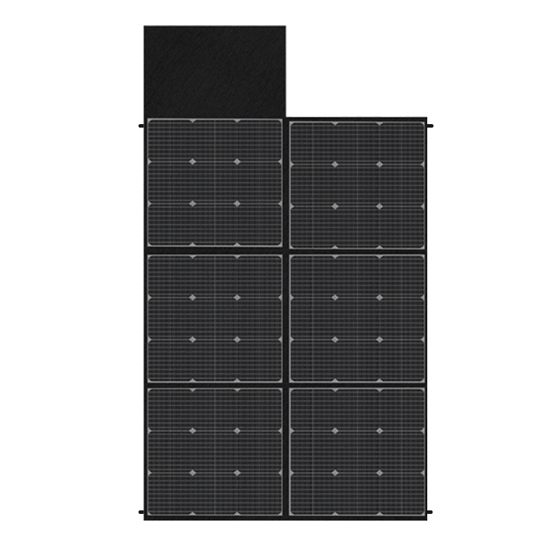

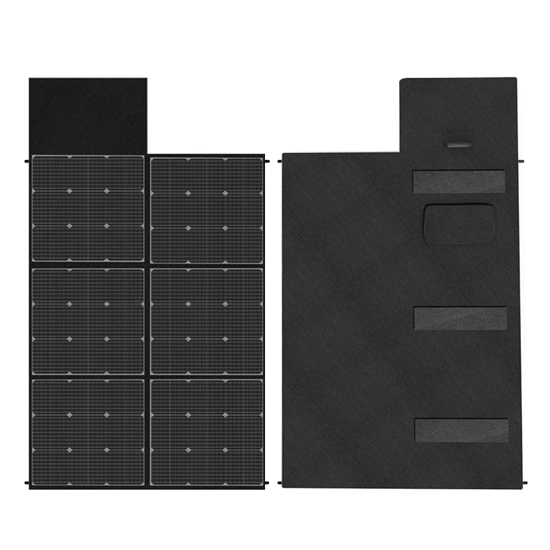

300W Portable Solar Folding Panel
from
$745.72
Ex Tax: $745.72
- Stock: In Stock
- Model: HZTOHZ-PSFP-300
- Weight: 1.00
- SKU: HZTOHZ-PSFP-300
With a maximum power output of 300W, it's your reliable source of clean, renewable power on the go. Operating flawlessly in temperatures ranging from -20℃ to 65℃. Its lightweight and foldable design makes it perfect for camping, RV trips, and off-grid adventures.
Detail
Applications
RV Travel
Mobile Office
Outdoor Camping
Agricultural Production
| Mechanical Specifications | |
| Model | HZTOHZ-PSFP-300 |
| Solar Cell | Monocrystalline |
| Surface Material | ETFE |
| Cloth Color | Black |

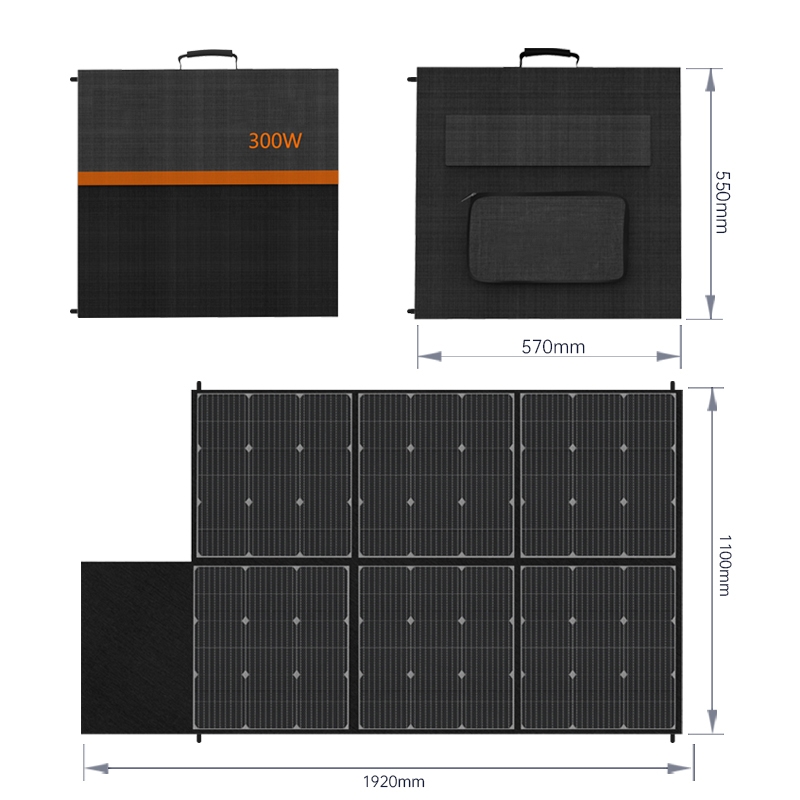

| Open Size | 1920 x 1100mm |
| Folding Size | 570 x 550mm |
| No. of Folding | 6 = 2 * 3 |
| Net Weight | 6.3 KG |

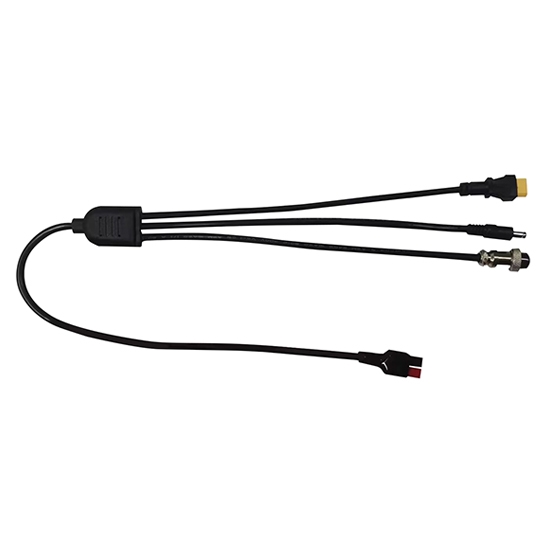

| Type of Connector | XT60 + Anderson + GX16 + DC |

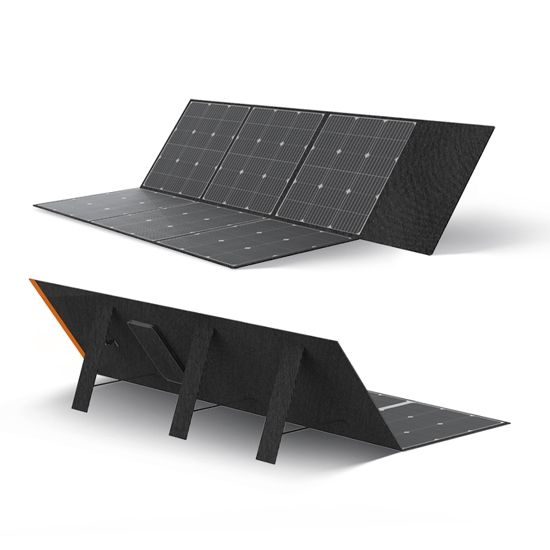

| Additional Design | Kickstands |
| Certifications | CE, FCC, ROHS, REACH |
| Electrical Specifications | |
| Standard Test Condtion | Irrandiance 1000W/m2, Module temperature 25℃, AM=1.5 |
| Maximum Power (Pm) | 300W |
| Voltage at Max Power (Vmp) | 18V |
| Current at Max Power (Imp) | 16.6A |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 18.1A |
| Temperature Coefficient of Pmax | (-0.41% /ºC) |
| Temperature Coefficient of Voc | (-0.33% /ºC) |
| Temperature Coefficient of Isc | (+0.06% /ºC) |
| Other Performance Datas | |
| Power Tolerance | 0% ~ 5% |
| Maximum System Voltage | 1000V DC |
| Maximum Series Fuse Rating | 20A |
| Operating Temperature | -20℃ ~ 65℃ |
| Normal Operating Cell Temperature (NOCT) | 45℃ ± 2℃ |
| Warranty | |
| 2 years limited product warranty on materials and workmanship. | |
| Power is not less than 80% in 5 years. | |
