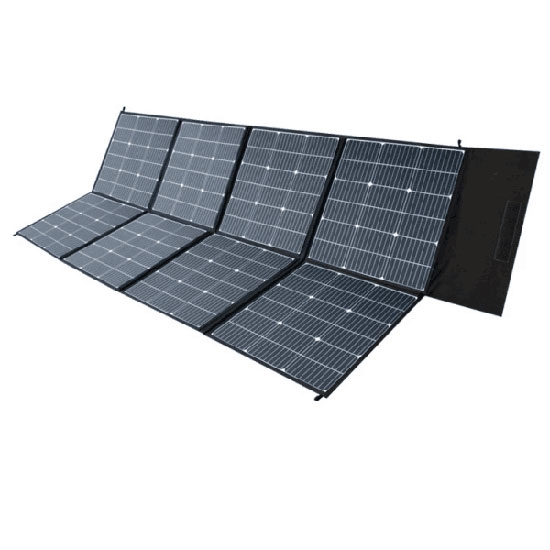

400W Portable Solar Folding Panel
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
400W Portable Solar Folding Panel
from
$943.40
Ex Tax: $943.40
- Stock: In Stock
- Model: HZTOHZ-PSFP-400
- Weight: 1.00
- SKU: HZTOHZ-PSFP-400
400 Watt portable folding solar panel with AC/DC/Dual USB fast charging output ports, which can meet most of the daily digital products. Reliable waterproof and durable materials ensure reliable working in various environments. Portable solar folding panel is folding design for easy carrying. Fast charging speed, ideal for outdoor activities and emergencies.
Detail
| Mechanical Specifications | |
| Model | HZTOHZ-PSFP-400 |
| Solar Cell | Monocrystalline |
| Surface Material | ETFE |
| Cloth Color | Black |

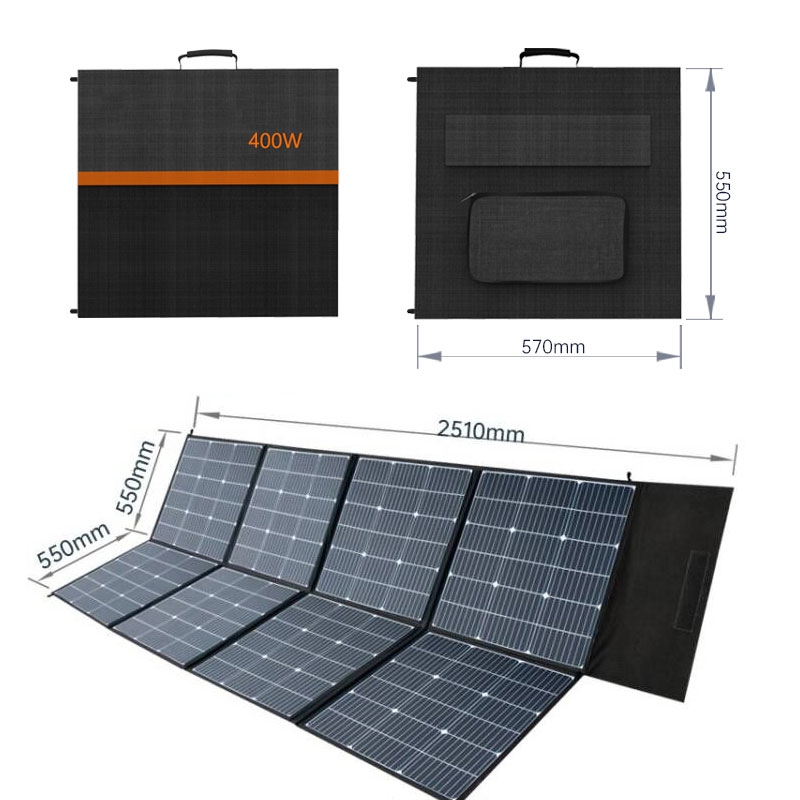

| Open Size | 2510 x 1100mm |
| Folding Size | 570 x 550mm |
| No. of Folding | 8 = 2 * 4 |
| Net Weight | 8.4 KG |

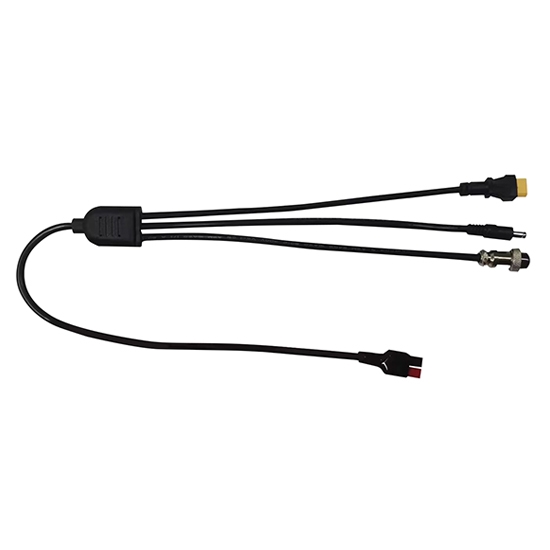

| Type of Connector | XT60 + Anderson + GX16 + DC |

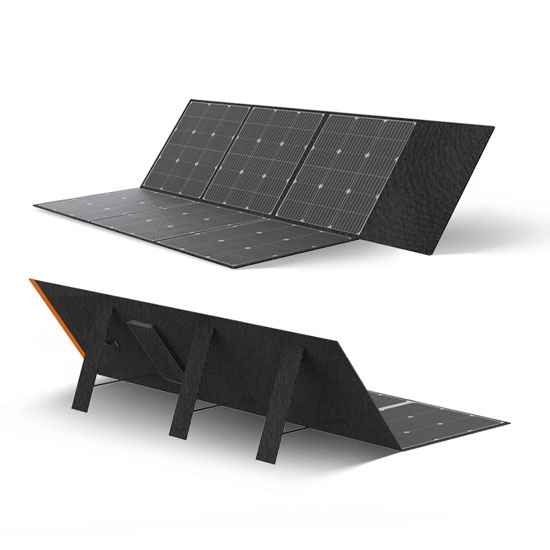

| Additional Design | Kickstands |
| Certifications | CE, FCC, ROHS, REACH |
| Electrical Specifications | |
| Standard Test Condtion | Irrandiance 1000W/m2, Module temperature 25℃, AM=1.5 |
| Maximum Power (Pm) | 400W |
| Voltage at Max Power (Vmp) | 18V |
| Current at Max Power (Imp) | 22.2A |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 24.2A |
| Temperature Coefficient of Pmax | (-0.41% /ºC) |
| Temperature Coefficient of Voc | (-0.33% /ºC) |
| Temperature Coefficient of Isc | (+0.06% /ºC) |
| Other Performance Datas | |
| Power Tolerance | 0% ~ +5% |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 25A |
| Operating Temperature | -20℃~65℃ |
| Normal Operating Cell Temperature (NOCT) | 45℃ ± 2℃ |
| Warranty | |
| 2 years limited product warranty on materials and workmanship. | |
| Power is not less than 80% in 5 years. | |
