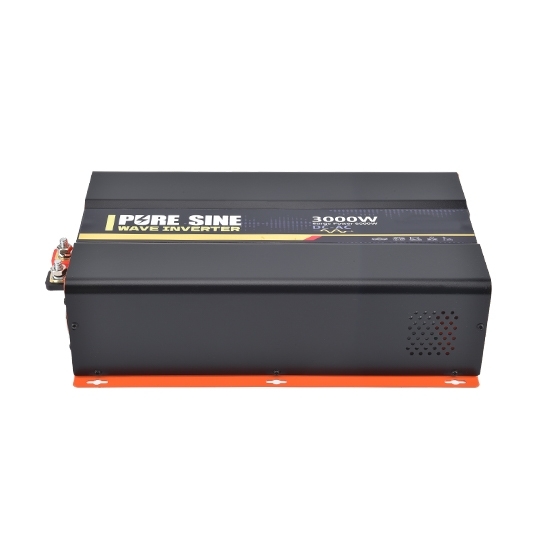

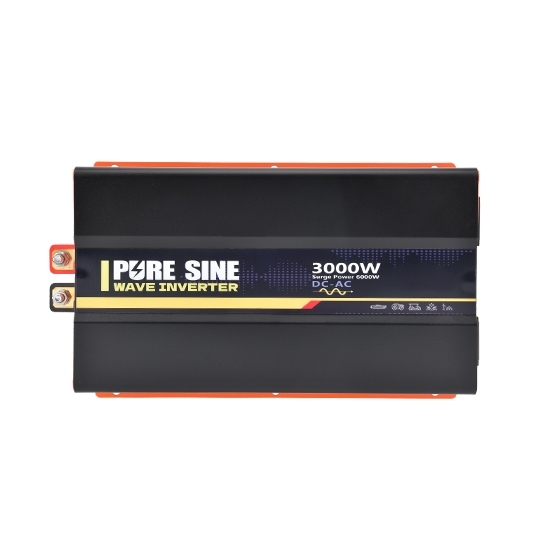

Touch Screen 24V 3000 Watt Pure Sine Wave Inverter
from
$541.92
Ex Tax: $541.92
- Stock: In Stock
- Model: HZTOHZ-TCPSWI-24V-3000W
- Weight: 1.00
- SKU: HZTOHZ-TCPSWI-24V-3000W
If you are looking for a high quality and high capacity 24V pure sine wave power inverter, this kind of inverter is a good choice for you. Not only features an aluminum alloy casing but is also equipped with a touch screen. 3000 watt rated power can be applied to many occasions. Pure sine wave inverter is found on practically every RV, trailer, motorhome, truck camper and is a good solution for backup or off grid power solutions.
Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.
Features:
- Intelligent integrated circuit control. Unique front and rear dual soft start technology, CPU core, SPWM pulse width control technology, special constant power technology, anti-reverse diode technology.
- Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Equipped with touch screen. A pure sine inverter equipped with a touch screen offers enhanced user convenience and intuitive operation. Users can quickly adjust settings, view performance metrics, and perform maintenance tasks.
- Working instructions intuitive working state. When the sine wave inverter undervoltage/overvoltage, overload, overtemperature, short circuit, the LED indicator lights.
- Fault warning/buzzer alarm reminder. When the inverter high voltage, low voltage, over temperature, overload protection function is turned on, once the protection of the inverter is triggered, the inverter disconnects the power supply and the load enters the protection mode for the first time, and issues an alarm through the buzzer alarm device. Make your use more secure.
Details:

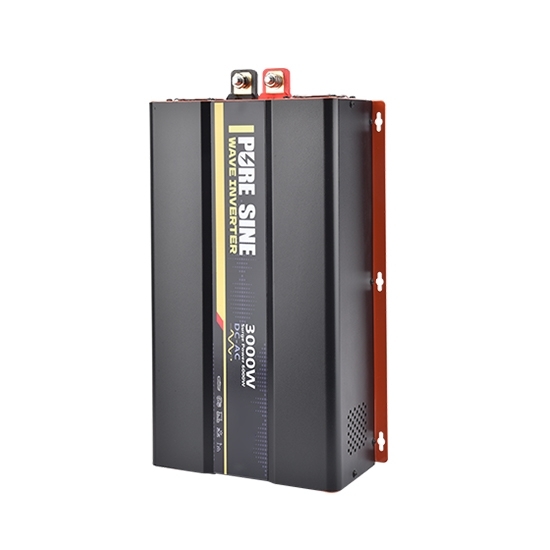

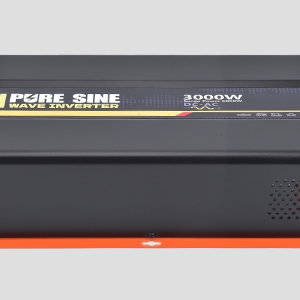

Aluminum Alloy Housing
Aluminum alloy is lightweight yet strong, making the pure sine 3000W inverter more portable without compromising durability. Its excellent corrosion resistance ensures long service life, even in humid environments. This combination of mechanical strength, thermal efficiency, and corrosion resistance makes an aluminum alloy shell ideal for protecting the inverter's internal components, ensuring stable operation and reliability.

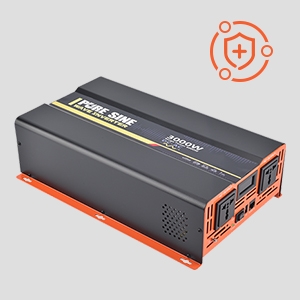

Multi-protection Functions
A 24V pure sine wave inverter 3000W with various protection functions offers clean, stable power output, making it ideal for sensitive electronics like laptops, medical devices, and audio equipment. Built-in protection functions, such as overload, over-temperature, over-voltage, under-voltage, and short-circuit protection, safeguard both the inverter and connected devices from damage.

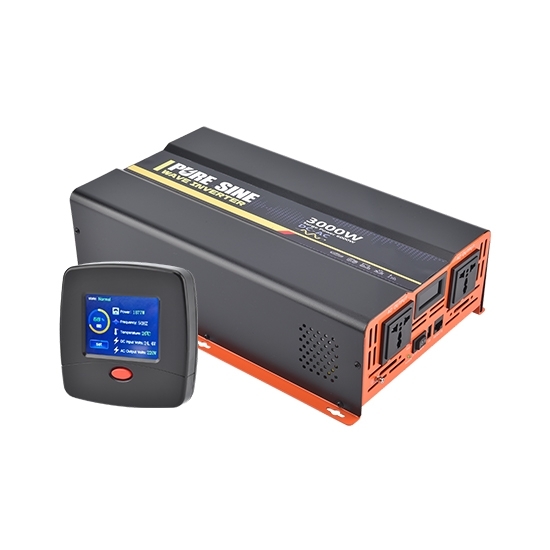

Touch Screen
A 3000W pure sine wave power inverter equipped with a touch screen offers enhanced usability and precision. The touch screen interface allows for intuitive control, streamlines configuration, allowing quick adjustments to settings. For users, it is more convenient to operate. Reduces the number of physical buttons, minimizing wear and tear and improving durability.
Applications:
Industrial Equipment
Office Appliance
Medical Device
Household Entertainment Electronic Device
| Model | HZTOHZ-TCPSWI-24V-3000W |
| Rated Power | 3000 Watt |
| Peak Power | 6000 Watt |
| Input Voltage | DC 24V |
| Output Voltage | 100 /110 /120 /220 /230 /240VAC±5% |
| Unload Current Less Than | 0.7A |
| Output Frequency | 50Hz or 60Hz±0.5Hz |
| Output Waveform | Pure Sine Wave |
| Waveform Distortion | THD＜3% (Linear load) |
| USB Port | QC 3.0 |
| Max Working Efficiency | 92% |
| Low Voltage Protection Function | Alarm at first, voltage continously reduce. LED Red light on & shut sown |
| Over Voltage Protection Function | LED Red light on, shut down |
| Over Load Protection Function | LED Red light on, shut down |
| Over Temperature Protection Function | Alarm at first, tempurature continously rise. LED Red light on & shut sown |
| Short Circuit Protection Function | LED Red light on |
| Input Reverse Polarity Protection Function | Fuse burn-out |
| Input Voltage Range | 20-31V |
| Low Voltage Alarm | 21±0.5V |
| Low Voltage Protection | 20±0.5V |
| Over Voltage Protection | 31±0.5V |
| Low Voltage Recover | 24±0.5V |
| Over Voltage Recover | 29.5±0.5V |
| Working Temperature | -10℃~ +50℃ |
| Cooling Method | Intelligent air cooling |
| Warranty | 2 year |
| Storage Temperature | -30℃~ +70℃ |
| Configuration | standard |
| Dimensions (W*H*D) | 405mm*240mm*105mm |
| Net/Gross Weight | 5300g / 6200g |

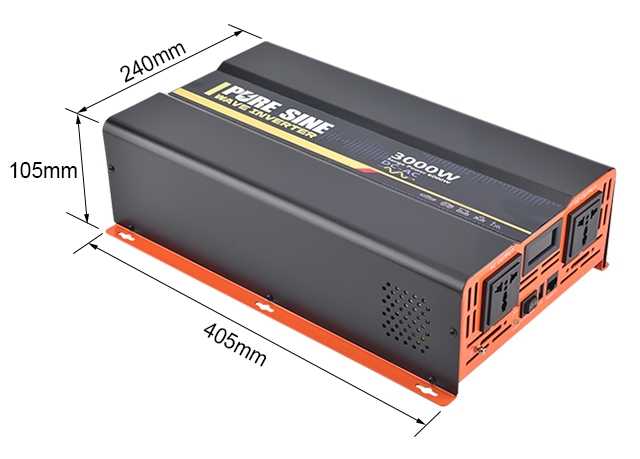

Dimension (Unit: mm)

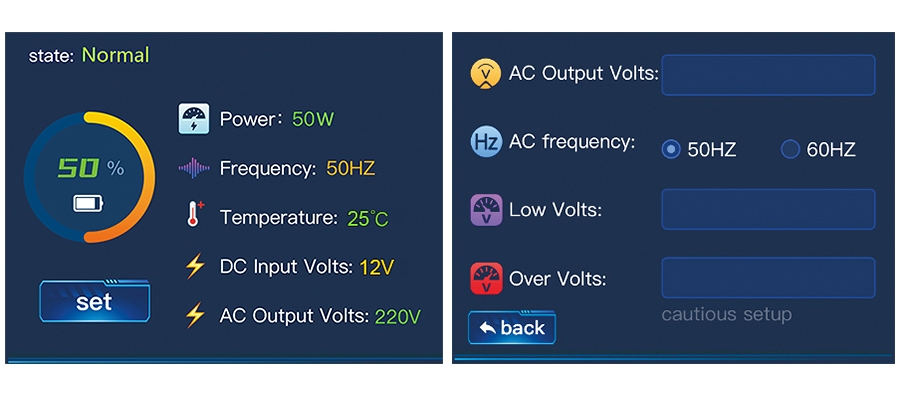

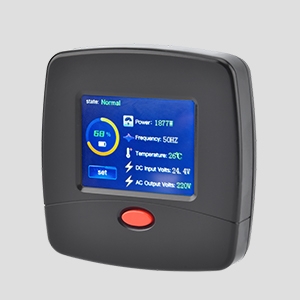

Touch Screen Display Interface:
Pure Sine Wave Inverter Output Sockets (Optional)
Note: Inverter output voltage is 1-phase (L, N, G) only, Do not provide split phase configuration (L1, L2+N, G).
