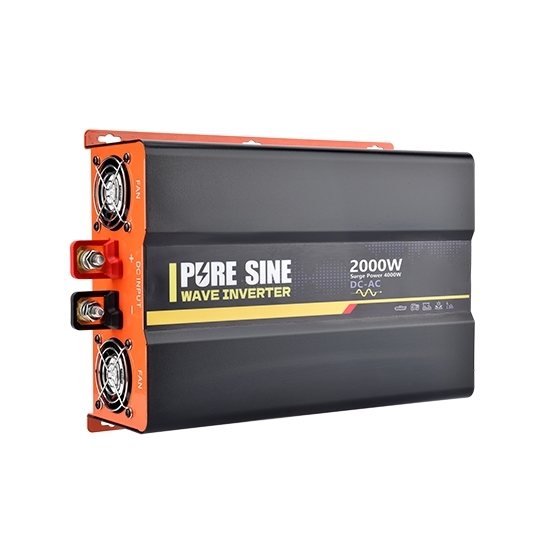

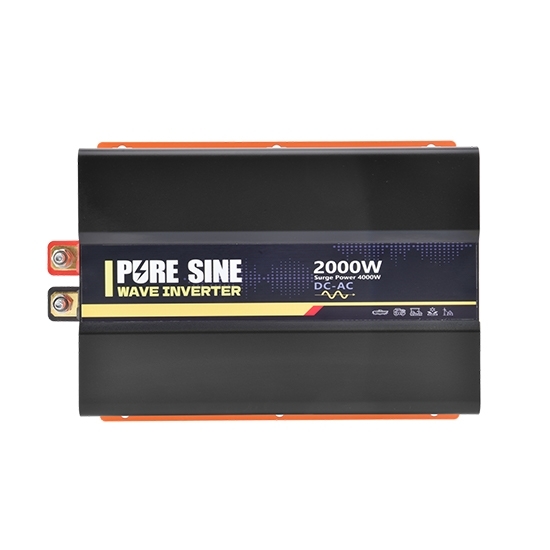

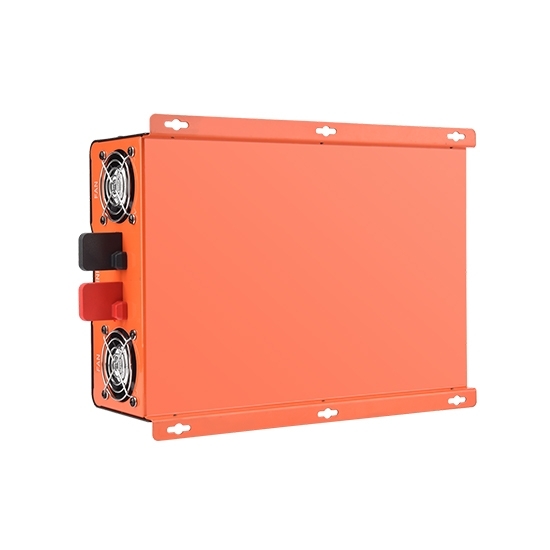

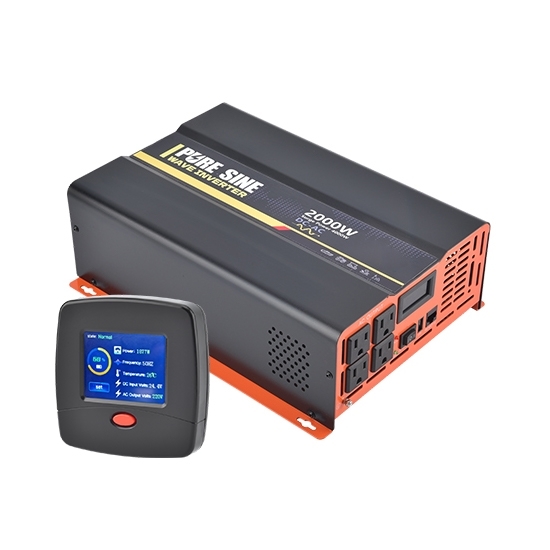

Touch Screen 24V 2000 Watt Pure Sine Wave Inverter
from
$407.97
Ex Tax: $407.97
- Stock: In Stock
- Model: HZTOHZ-TCPSWI-24V-2000W
- Weight: 1.00
- SKU: HZTOHZ-TCPSWI-24V-2000W
A 2000 watt pure sine wave power inverter is a device that converts 12V or 24V DC power from a battery into 100V/110V/120V/220V/230V/240V AC electricity, producing a clean, smooth waveform. This kind of pure sine inverter is equipped with a touch screen, making operation more intuitive and simple. This 24V 2000W pure sine wave inverter is a good solution for charging your electronics or devices on the vacation, work trip or camping.
Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.
Features:
- Intelligent integrated circuit control. Unique front and rear dual soft start technology, CPU core, SPWM pulse width control technology, special constant power technology, anti-reverse diode technology.
- Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Equipped with touch screen. A pure sine inverter equipped with a touch screen offers enhanced user convenience and intuitive operation. Users can quickly adjust settings, view performance metrics, and perform maintenance tasks.
- Working instructions intuitive working state. When the sine wave inverter undervoltage/overvoltage, overload, overtemperature, short circuit, the LED indicator lights.
- Fault warning/buzzer alarm reminder. When the inverter high voltage, low voltage, over temperature, overload protection function is turned on, once the protection of the inverter is triggered, the inverter disconnects the power supply and the load enters the protection mode for the first time, and issues an alarm through the buzzer alarm device. Make your use more secure.
Details:

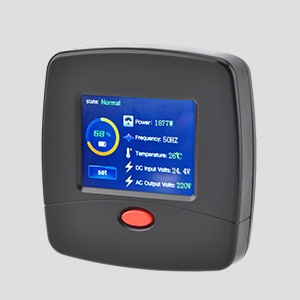

Touch Screen
A pure sine inverter equipped with a touch screen offers enhanced usability and precision. The touch screen interface allows for intuitive control, streamlines configuration, allowing quick adjustments to settings. For users, it is more convenient to operate. Reduces the number of physical buttons, minimizing wear and tear and improving durability.

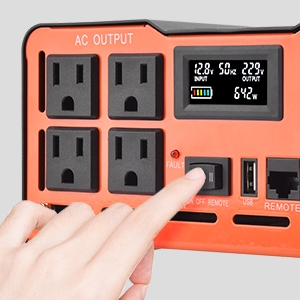

One-button Switch
The one-button design simplifies operation, making it easy to turn the 2000 watt 24V pure sine wave power inverter on or off quickly without navigating complex settings. This is especially beneficial in emergencies or for users unfamiliar with technical devices. One-button switch improves ease of use, safety, and reliability.

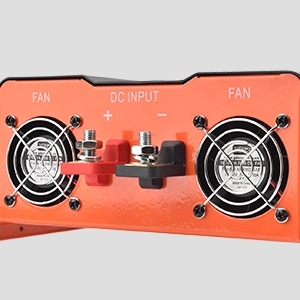

Dual Intellengent Cooling Fan
Adopts with dual fans instead of one, they ensure better heat dissipation, preventing overheating and prolonging the lifespan of the pure sine wave 2kw inverter components, enhancing the overall reliability of the pure sine wave inverter system. Improved performance, increased durability, and reduced maintenance requirements.
Applications:
Electric Tool
Office Appliance
Residential Use
Outdoor Camping
| Model | HZTOHZ-TCPSWI-24V-2000W |
| Rated Power | 2000 Watt |
| Peak Power | 4000 Watt |
| Input Voltage | DC 24V |
| Output Voltage | 100 /110 /120 /220 /230 /240VAC±5% |
| Unload Current Less Than | 0.5A |
| Output Frequency | 50Hz or 60Hz±0.5Hz |
| Output Waveform | Pure Sine Wave |
| Waveform Distortion | THD＜3% (Linear load) |
| USB Port | QC 3.0 |
| Max Working Efficiency | 92% |
| Low Voltage Protection Function | Alarm at first, voltage continously reduce. LED Red light on & shut sown |
| Over Voltage Protection Function | LED Red light on, shut down |
| Over Load Protection Function | LED Red light on, shut down |
| Over Temperature Protection Function | Alarm at first, tempurature continously rise. LED Red light on & shut sown |
| Short Circuit Protection Function | LED Red light on |
| Input Reverse Polarity Protection Function | Fuse burn-out |
| Input Voltage Range | 20-31V |
| Low Voltage Alarm | 21±0.5V |
| Low Voltage Protection | 20±0.5V |
| Over Voltage Protection | 31±0.5V |
| Low Voltage Recover | 24±0.5V |
| Over Voltage Recover | 29.5±0.5V |
| Working Temperature | -10℃~ +50℃ |
| Cooling Method | Intelligent air cooling |
| Warranty | 2 year |
| Storage Temperature | -30℃~ +70℃ |
| Configuration | standard |
| Dimensions (W*H*D) | 345mm*240mm*95mm |
| Net/Gross Weight | 4240g / 4940g |

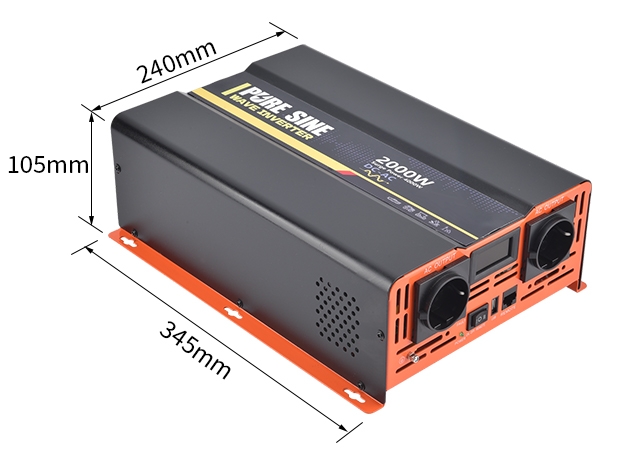

Dimension (Unit: mm)

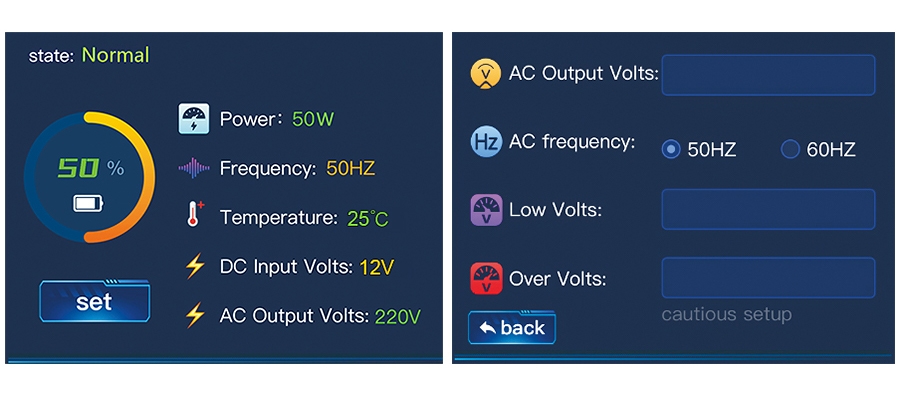

Touch Screen Display Interface:
Pure Sine Wave Inverter Output Sockets (Optional)
Note: Inverter output voltage is 1-phase (L, N, G) only, Do not provide split phase configuration (L1, L2+N, G).
