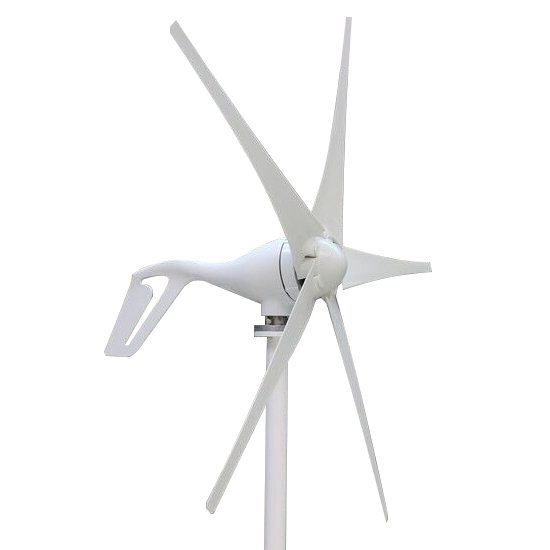

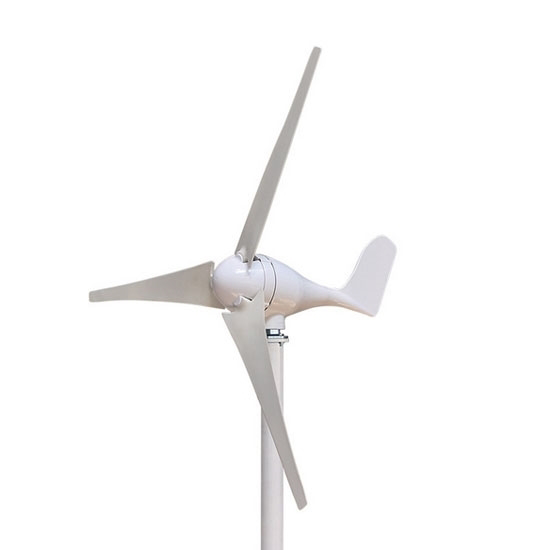

500W Horizontal Axis Wind Turbine, 12V/24V/48V
from
$614.62
Ex Tax: $614.62
- Stock: In Stock
- Model: HZTOHZ-WT-500M3
- Weight: 1.00
- SKU: HZTOHZ-WT-500M3
500W horizontal axis wind turbine can be used in the wind-solar hybrid streetlight, rated voltage 12V/24V/48V. Speed regulation with automatically adjust windard, nylon fiber blades material.
Feature:
- Low starting wind speed, beautiful appearance, and low running vibration.
- Using humanized flange installation design, convenient installation, and maintenance.
- The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
- The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
- Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
- Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.
Specification:
| Model | HZTOHZ-WT-500M3 |
| Matched Controller Model | HZTOHZ-WTCMPPT-500 (Click it to the controller page) |
| Rated Power | 500W |
| Maximum Power | 530W |
| Rated Voltage | 12V/24V/48V |
| Start-Up Wind Speed | 2.5 m/s |
| Rated Wind Speed | 11.5 m/s |
| Survival Wind Speed | 50 m/s |
| Wheel Diameter | 1.65m |
| Blades Number | 3 / 5 |
| Length of Blades | 0.81m |
| Blades Material | Nylon Fiber |
| Generator | Three-Phase Permanent Magnet AC Generator |
| Magnetic Steel | NdFeB |
| Generator Case | Casting Aluminum Alloy |
| Controller System | Electromagnet / Wind Wheel Yaw |
| Speed Regulation | Automatically Adjust Windard |
| Installation Flange | DN25 |
| Working Temperature | -40°C~80°C |
| Gross Weight | 17.2kg |
| Top Net Weight | 13kg |
| Service Life | 15 years |
| Warranty | 18 months |
| Package Dimension | 930*370*260mm |

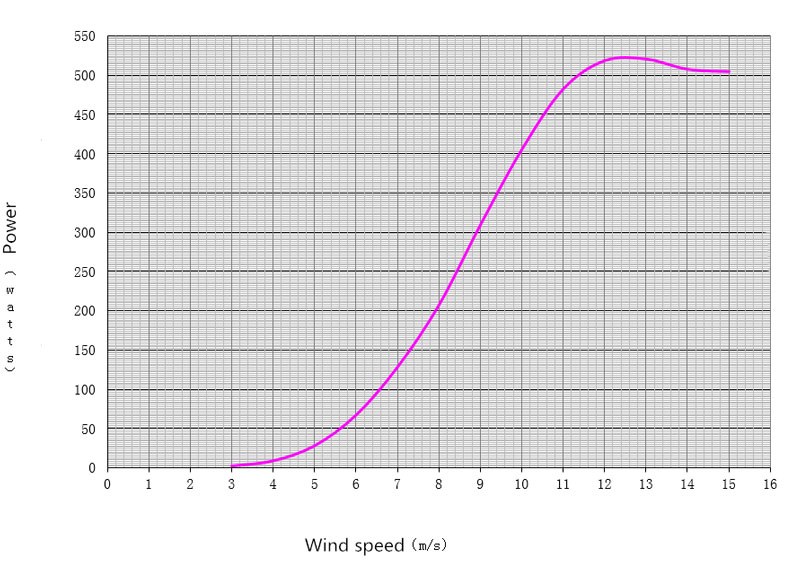

500W Wind Turbine Power Curve:

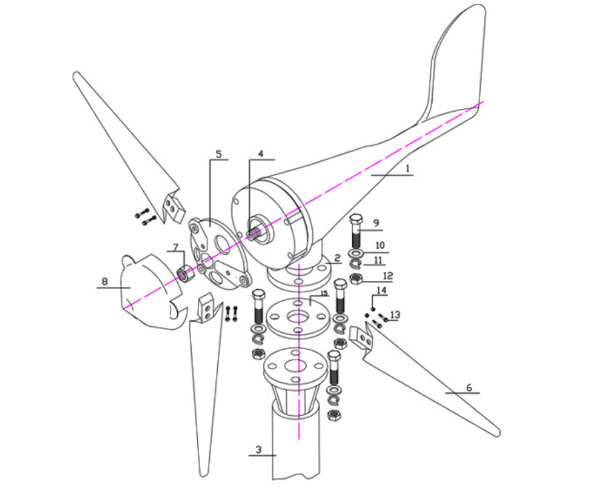

500W Wind Turbine (Flange Seat) Exploded View:
1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.
Tips: Here are some tips for buying a small wind turbine:
- It is better to use high-strength nylon composite material, high strength, good toughness, anti-UV, anti-corrosion, and anti-wind, with good aerodynamic performance and unique strong wind stall protection characteristics.
- It is better to have a pre-deflection design of the stern rudder so that it can automatically and accurately align with the windward direction, improve the output power, and give consideration to adjustment and strong wind protection at the same time.
- Carbon brush and brush ring structure. With such a device, the electricity from the wind turbine can be transferred from the carbon brush to the brush ring, and the brush ring can lead the electricity out. When the wind turbine rotates, it will rotate to prevent the cable from being broken.
- Connection, it is best to use the sleeve connection, high security, no flying car phenomenon, installation industry is very convenient. To know in the field installation fan is not only technical work but also physical work.
