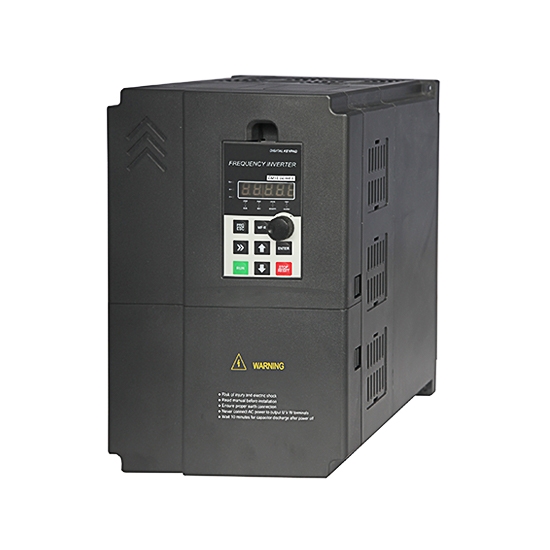

5.5 KW Three Phase Solar Pump Inverter, AC 380V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
5.5 KW Three Phase Solar Pump Inverter, AC 380V
from
$328.08
Ex Tax: $328.08
- Stock: In Stock
- Model: GK330-SP3-5d5
- Weight: 1.00
- SKU: GK330-SP3-5d5
5.5 kW high-efficiency MPPT solar pump inverter, converts the DC power produced by the solar array. Rated power 5.5kW, IP20 protection rating, stabilizes voltage automatically, and is easy to operate. Performs normally under vibration acceleration up to 5.9m/s² (0.6g). Solar pump inverter is usually applied in municipal water, wastewater purification, agricultural irrigation, etc.
Features
- Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
- It can enter automatically into sleep mode when the intensity of sunlight is weak, as well as exit the sleep mode when the intensity of sunlight is becoming strong.
- Automatic sleep when on the high-water level and automatic restart when on the low-water level to realize automatic control through the water level.
- Smart operation, water level detection, and operation panel to prevent overflow and dry pumping.
- Protect itself in trouble and improve the reliability of the whole system.
- The bypass- AC source which runs automatically when the sun is not sufficient or absent.
Details
Air Vents
Good-quality 5.5kW solar water pump inverter has high-density ventilation ports for excellent cooling, ensuring stable operation in high-temperature environments. The powerful DC heat sink operates quietly, effectively reducing the heat generated during inverter use, with intelligent start-stop control. An independent air duct design establishes a completely sealed environment, preventing dust and moisture from reaching the circuit board area.

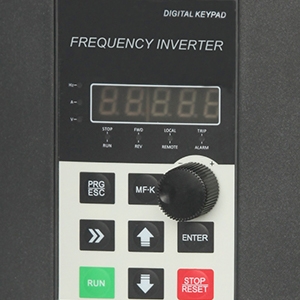

Digital Keypad
The 5.5 kW solar pump inverter has a clear digital keypad that can directly control the start, stop, and acceleration functions. Users can set the inverter's operating parameters and adjust the output frequency to control the operating speed of the solar pump through simple key operations. The digital keyboard is intuitive and easy to use, making the operation of the solar pump system more efficient and convenient for anyone who operates it.

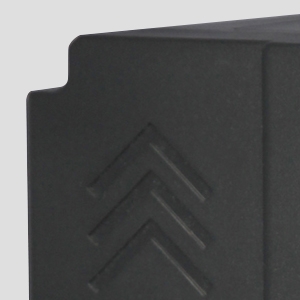

Rugged Casing
The superior performance 5.5 kW solar pump inverter is compact, and the sturdy shell has good anti-fall, flame retardant, anti-aging, and corrosion-resistant features, effectively isolates moisture and dust, has stable operation, and is safe and reliable. It not only protects the circuit and electronic components inside the pump inverter but also ensures safety, stability, and reliability, effectively protecting and extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply
Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| 5D5 | Adaptable motor power: 5D5 (5.5KW) |
| Model | SP3-5d5 |
| Rated power | 5.5kW |
| Voltage input | DC 350~750 (V), AC 380~460 (V) at 3-phase (When the input is AC, the inverter output voltage is equal to the input voltage) |
| Min. DC voltage | 280V |
| Max. DC voltage | 750V |
| Recommended DC MPPT range | 350~750(V) |
| AC output current | 13A at 3-phase 380V |
| Output frequency | 0~50/60 (Hz) |
| Power factor | >0.99 |
| Communication mode | RS485 communication |
| Protection class | IP20 |
| Ambient temperature | -10°C~+40°C (ambient temperature at 40°C~50°C， please keep derated use ) |
| Storage temperature | -20°C~+60°C |
| Humidity | Smaller than 95%RH, non-condensation |
| Cooling | Forced Air cooling |
| Altitude | Lower than 1000m |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
