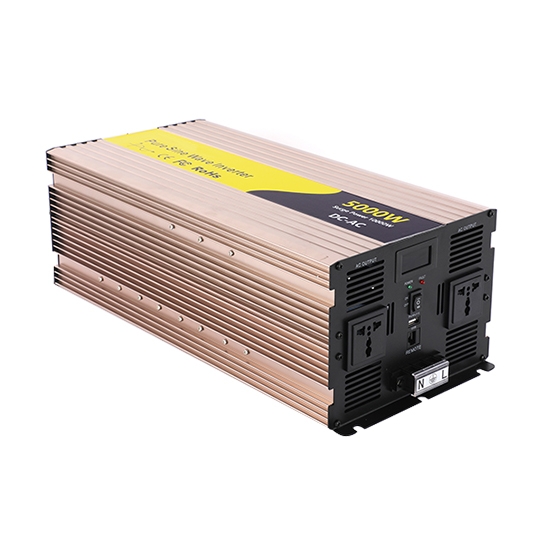

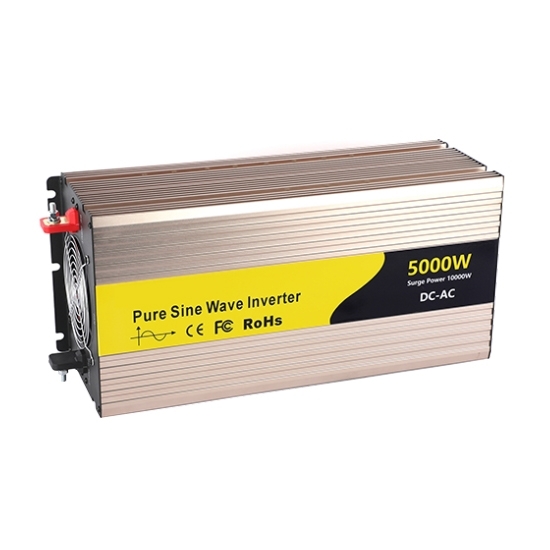

48V 5000 Watt Pure Sine Wave Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
48V 5000 Watt Pure Sine Wave Inverter
from
$872.12
Ex Tax: $872.12
- Stock: In Stock
- Model: HZTOHZ-PSWI-48V-5000W
- Weight: 1.00
- SKU: HZTOHZ-PSWI-48V-5000W
5000 watt 48 volt power inverter for home use, with LCD display, remote control, can be used in water heater, air conditioning, audio and coffee machine, output AC 110V/220V/12V/230V/220V/240V for selected, manufacturer direct sales. This configuration is popular due to sine wave inverter efficiency and compatibility with various renewable energy sources like solar panels and wind turbines.
Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.
Features:
- Intelligent integrated circuit control. Unique front and rear dual soft start technology, CPU core, SPWM pulse width control technology, special constant power technology, anti-reverse diode technology.
- Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Imported parts. The pure sine wave inverter materials are imported components, and the panel uses double-sided circuit boards to ensure high quality and high performance of the products, and to match the excellent quality of the detailed molds.
- Working instructions intuitive working state. When the sine wave inverter undervoltage/overvoltage, overload, overtemperature, short circuit, the LED indicator lights.
- Fault warning/buzzer alarm reminder. When the inverter high voltage, low voltage, over temperature, overload protection function is turned on, once the protection of the inverter is triggered, the inverter disconnects the power supply and the load enters the protection mode for the first time, and issues an alarm through the buzzer alarm device. Make your use more secure.
Details:

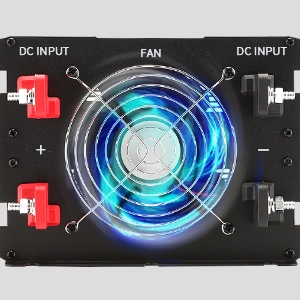

Large Intellengent Cooling Fan
Optimize energy consumption by adjusting fan speed based on temperature, enhancing efficiency. Intelligent cooling fan in 48V pure sine wave inverter ensures quieter operation compared to traditional fan, enhancing user comfort. It contributes to environmental sustainability by reducing energy waste and emissions.

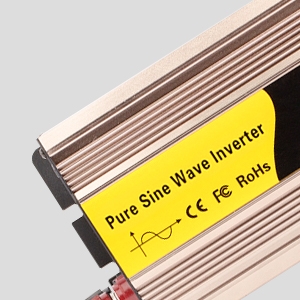

Aluminium alloy housing
Aluminium's excellent thermal conductivity facilitates efficient heat dissipation, enhancing the inverter's performance and lifespan. its corrosion resistance ensures longevity even in harsh environments. Thermal efficiency, and environmental friendliness, making it an optimal choice for pure sine wave inverter.

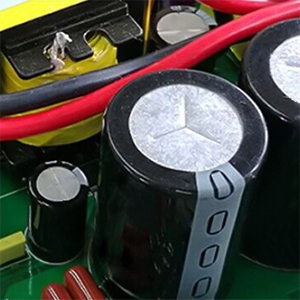

Quality Capacitor
High quality capacitors have better heat dissipation properties, leading to improved reliability and longevity of the 5000 watt pure sine inverter system. they contribute to lower electromagnetic interference, resulting in cleaner power output and reduced interference with other electronic equipment, thus enhancing overall performance.
Applications:
| Model | HZTOHZ-PSWI-48V-5000W |
| Rated Power | 5000 Watt |
| Peak Power | 10000 Watt |
| Input Voltage | DC 48V |
| Output Voltage | 100 /110 /120 /220 /230 /240VAC±5% |
| Unload Current Less Than | 0.5A |
| Output Frequency | 50Hz or 60Hz±0.5Hz |
| Output Waveform | Pure Sine Wave |
| Waveform Distortion | THD＜3% (Linear load) |
| USB Port | / |
| Max Working Efficiency | 95% |
| Low Voltage Protection | Alarm at first, voltage continously reduce. LED Red light on & shut sown |
| Over Voltage Protection Function | LED Red light on, shut down |
| Over Load Protection Function | LED Red light on, shut down |
| Over Temperature Protection Function | Alarm at first, tempurature continously rise. LED Red light on & shut sown |
| Short Circuit Protection Function | LED Red light on |
| Input Reverse Polarity Protection Function | Fuse burn-out |
| Input Voltage Range | 40-61V |
| Low Voltage Alarm | 42±1V |
| Low Voltage Protection | 40±1.5V |
| Over Voltage Protection | 61±1V |
| Low Voltage Recover | 48±1V |
| Over Voltage Recover | 59±1V |
| Working Temperature | -10℃~ +50℃ |
| Cooling Method | Intelligent air cooling |
| Warranty | 1 year |
| Storage Temperature | -30℃~ +70℃ |
| Configuration | standard |
| Dimensions (W*H*D) | 475mm*205mm*152mm |
| Net/Gross Weight | 8450g / 11000g |

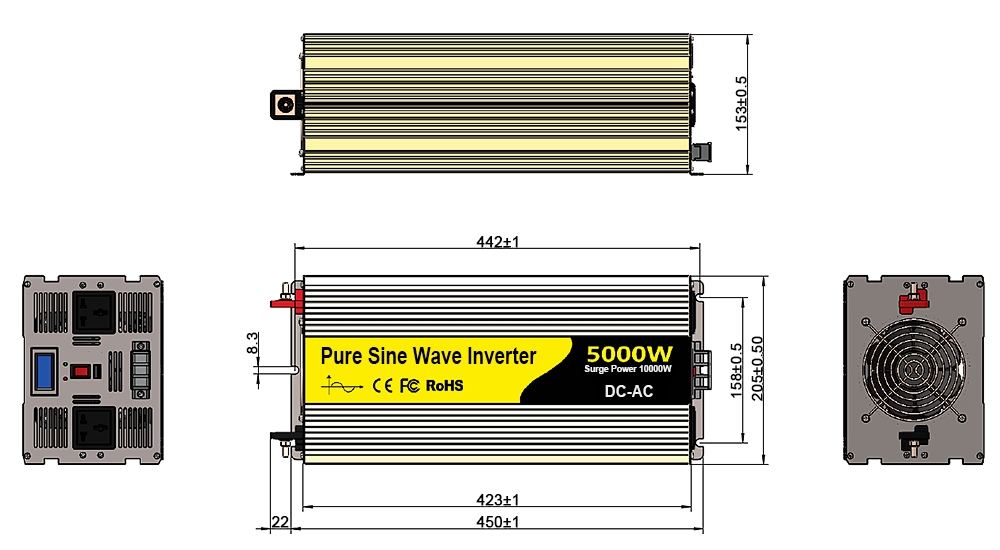

Dimension (Unit: mm)

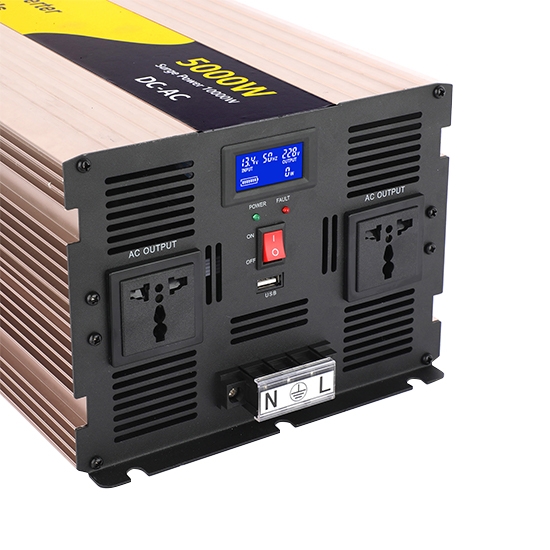

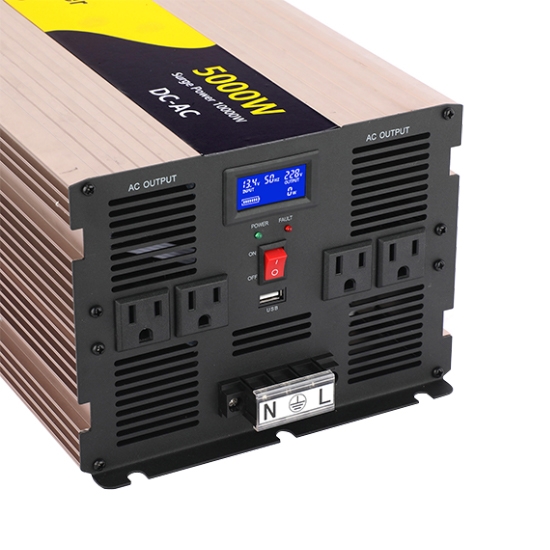

Pure Sine Wave Inverter Output Sockets (Optional)
Note: Inverter output voltage is 1-phase (L, N, G) only, Do not provide split phase configuration (L1, L2+N, G).

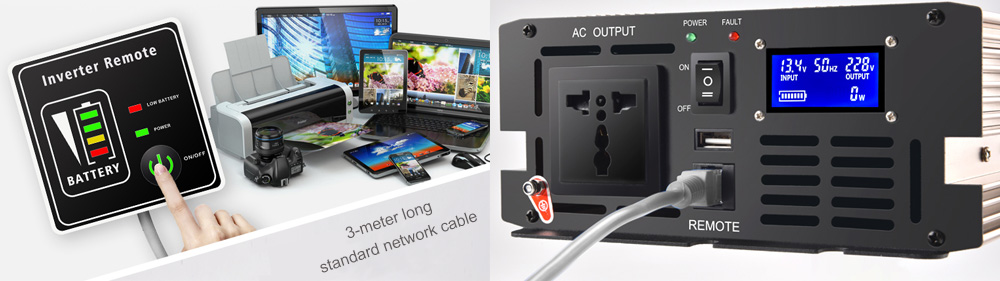

Pure Sine Wave Inverter Remote Control LCD Display (Optional)
- Pure sine wave power inverter is available with remote control: wired control and wireless control.
- LCD display shows input voltage, output voltage, output frequncy, battery capacity and power.
