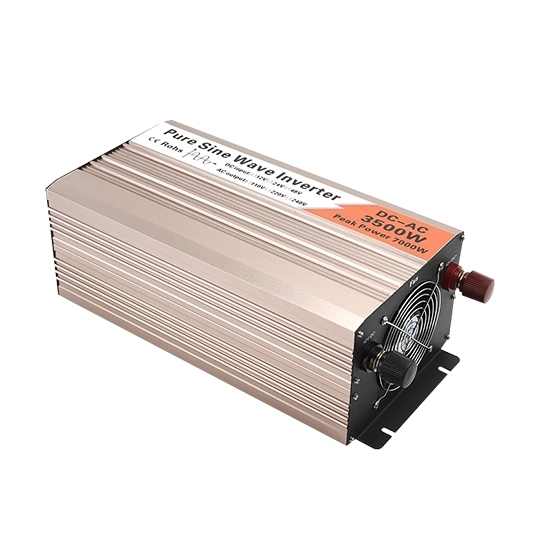

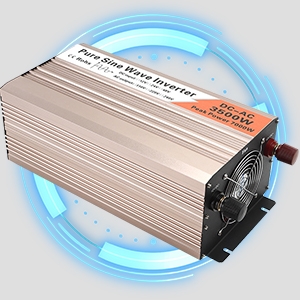

48V 3500 Watt Pure Sine Wave Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-PSWI-48V-3500W
- Weight: 1.00
- SKU: HZTOHZ-PSWI-48V-3500W
A 48V 3500W pure sine wave inverter is an electrical device that converts direct current (DC) from a 48-volt battery bank into 230V or 110V alternating current (AC) with a continuous power output of up to 3500 watts. The 48V input indicates that the inverter is designed to work with a battery system operating at a nominal voltage of 48 volts. This configuration is commonly found in solar power systems and off-grid setups, where higher DC voltages are preferred for increased efficiency and reduced power losses. The 3500W power rating means the full sine wave inverter can continuously supply up to 3500 watts, making it ideal for powering multiple household devices simultaneously, including refrigerators, washing machines, and power tools.
Features:
- Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Various protection. 3500 watt pure sine wave inverter with various protections, such as low voltage protection, over voltage protection, overload protection, over temperature protection and short circuit protection.
- Lower consumption and higher efficiency. The output current is the same as the household, and the power conversion efficiency is high, up to 92%, low standby power consumption.
Details:

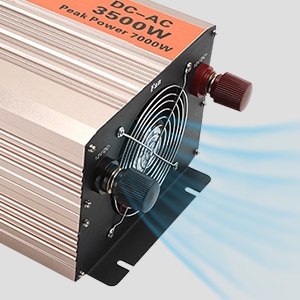

Intelligent Cooling Fan
Intelligent cooling fan in a 48V pure sine wave power inverter enhances performance and longevity by regulating temperature efficiently. It reduces energy consumption and noise. By preventing overheating, it protects sensitive electronic components, ensuring stable operation and extending the inverter's lifespan. The smart fan also improves efficiency by maintaining optimal thermal conditions, reducing thermal stress on internal circuits.

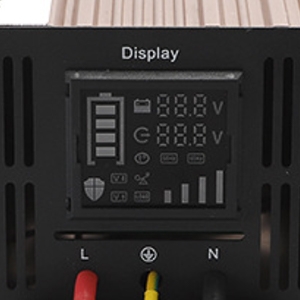

LCD Display
It offers real-time data on key parameters such as battery input status, output frequency, load condition, ensuring users can quickly assess system performance. Additionally, an LCD makes troubleshooting easier, reducing downtime and maintenance costs. The intuitive interface simplifies operation, making the inverter user-friendly. Overall, it enhances reliability, safety, and efficiency of the 3500W pure sine wave inverter.
Multiple Protection
This ensures stable power delivery, protecting sensitive electronics from electrical fluctuations. Overheat protection prevents excessive heat buildup, extending the inverter’s lifespan. Additionally, low-voltage protection prevents battery depletion, ensuring reliable operation. With these protections, the true sine inverter operates efficiently, minimizes downtime, and reduces maintenance costs, making it a reliable power source for off-grid, RV, and backup applications.
Applications:
Medical Device
Residential Use
Outdoor Camping
Caravan
| Model | HZTOHZ-PSWI-48V-3500W |
| Rated power | 3500W |
| Peak power | 7000W |
| Input voltage | 48VDC |
| Output voltage | 100 /110 /120 /220 /230 /240VAC±5% |
| USB output | 5V 1000mA |
| Frequency | 50Hz or 60Hz±3 |
| Output waveform | pure sine wave |
| Waveform distortion | THD＜3% |
| Max output efficiency | 94.2% |
| Unload current less than | 0.4A |
| Input voltage range | 40-60V |
| Undervoltage alarm | 41±1V |
| Undervoltage protection | 40±1V |
| Undervoltage recover | 48±1V |
| Overvoltage protection | 60±1V |
| Overvoltage recover | 59±1V |
| Cooling method | intelligent cooling fan |
| Protection function | over voltage protection, over temperature protection, over load protection, short cicuit protection |
| Working temperature | -10℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Dimension (W*H*D) | 44*20*15cm |
| Net/gross weight | 8.92kg/10.7kg |

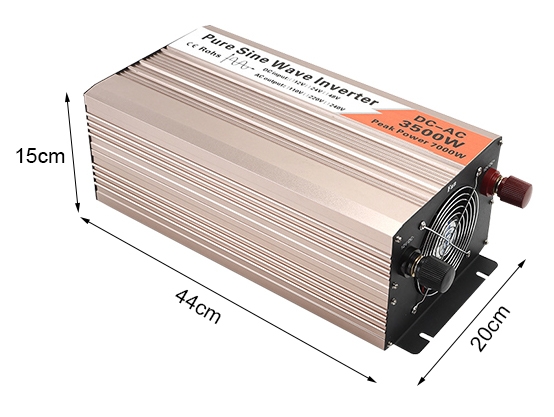

3500W Pure Sine Wave Inverter Dimension:

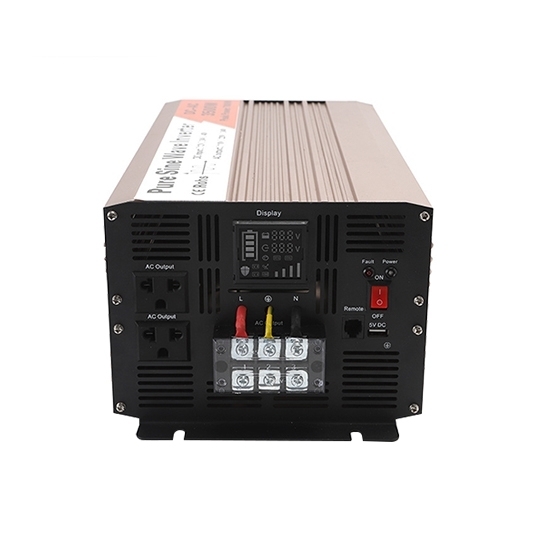

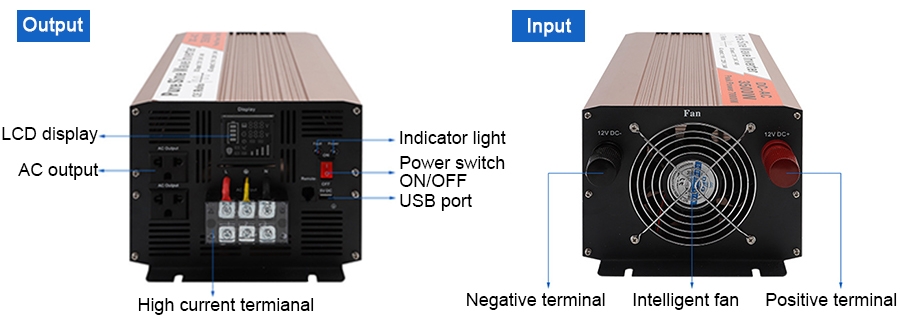

Structure:

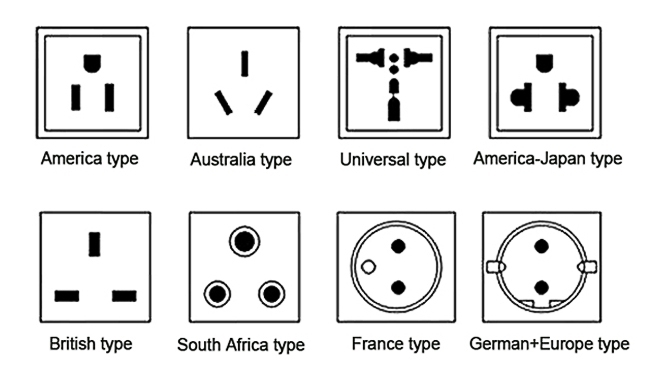

Pure Sine Wave Inverter Output Sockets (Optional):
