3000 Watt Voltage Converter, 220/240v To 110/120v
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product

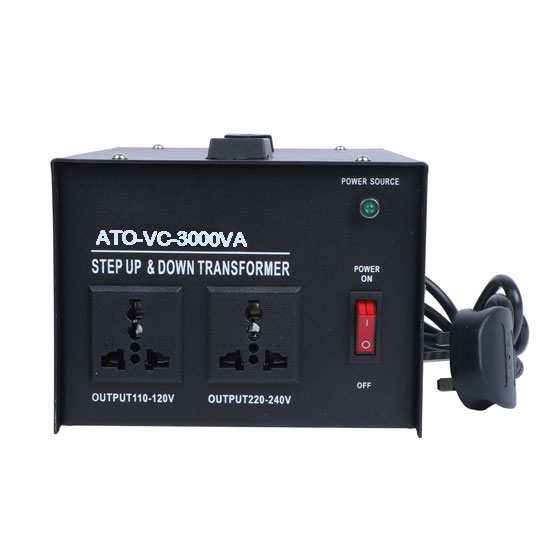

3000 Watt Voltage Converter, 220/240v To 110/120v
from
$203.08
Ex Tax: $203.08
- Stock: In Stock
- Model: HZTOHZ-VC-3000
- Weight: 1.00
- SKU: HZTOHZ-VC-3000
3000w voltage converter transformer, input voltage is available for 110v, 120v, 220v, 230v, 240v, converting 120v to 240v, 220v to 110v for home appliances.
Features
- Step-up and step-down voltage converters can convert 220-240 volts to 110-120 volts or 110-120 volts to 220-240 volts.
- Precise input voltage selector which you can select (110v, 120v, 220v, 240v depending on the voltage source available) via the switch.
- The output voltage is 110V-220V and 220V-240V which can be used at the same time. There are two universal outlets on the device.
- The voltage converters are made of high-quality materials, providing a safe, reliable, economical, and convenient solution for home use and industrial applications.
Specification
| Basics | Model | HZTOHZ-VC-3000 |
| Capacity | 3000 watt | |
| Power factor | 0.8 | |
| Product weight | 8.6 kg | |
| Dimension | 224*217*158 mm | |
| I/O Feature | Input voltage | 1 phase 110v, 120v, 220v, 230v, 240v AC |
| Input frequency | 50Hz / 60Hz | |
| Output voltage | 110v or 220v | |
| Output frequency | Same as the input frequency | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; | |
| Humidity | 5%-95%, without condensation | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |

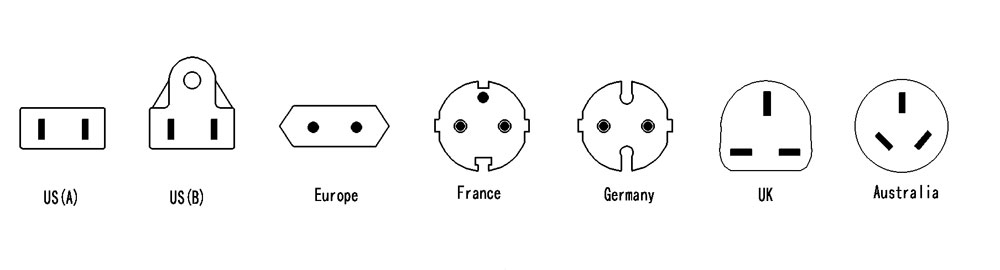

Power Cord Plug (Optional)
Applications
How to choose the right voltage converter?
- Input and Output Voltage
Input Voltage: Ensure that the converter supports the input voltage you're providing. It should cover the range of voltage levels your power source might provide (e.g., 12V, 24V, 110V, etc.).
Output Voltage: Choose a converter that provides the voltage needed by your load (e.g., 5V, 3.3V, 12V, etc.). Make sure the converter can output the specific voltage you require, whether it's step-up (boost) or step-down (buck). - Current (Amperage) Requirements
Maximum Output Current: Check the current rating for the output voltage. The converter should be able to supply the current required by your device or load. If the load requires more current than the converter can provide, the converter will overheat, trip, or fail. - Power Rating (Wattage)
The power rating is the product of the output voltage and the output current (P = V × I). Make sure the converter can handle the required wattage of your load. If your load requires 12V and 5A, you need a converter rated for at least 60W.
Safety margin: It's always a good idea to choose a converter with a higher power rating than your load requires to ensure it operates within its safe limits. - Conversion Type
Step-Up (Boost) Converter: Use this if you need to increase the input voltage to a higher output voltage (e.g., 5V from 3.7V or 12V from 5V).
Step-Down (Buck) Converter: Use this if you need to reduce the input voltage to a lower output voltage (e.g., 5V from 12V or 3.3V from 5V).
Buck-Boost Converter: If your input voltage fluctuates and you need the output to stay constant regardless of whether the input is higher or lower, a buck-boost converter is ideal.
