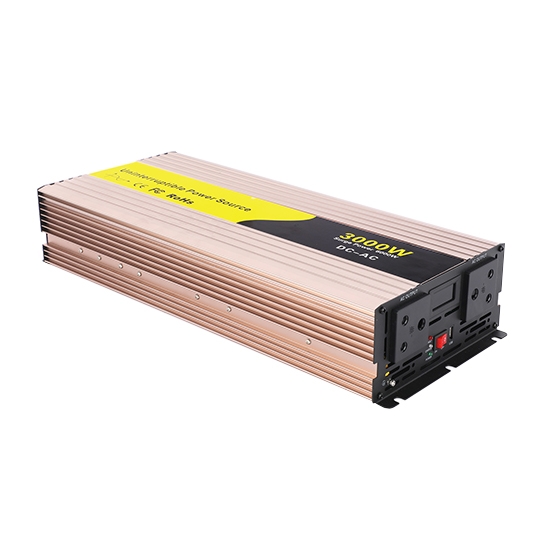

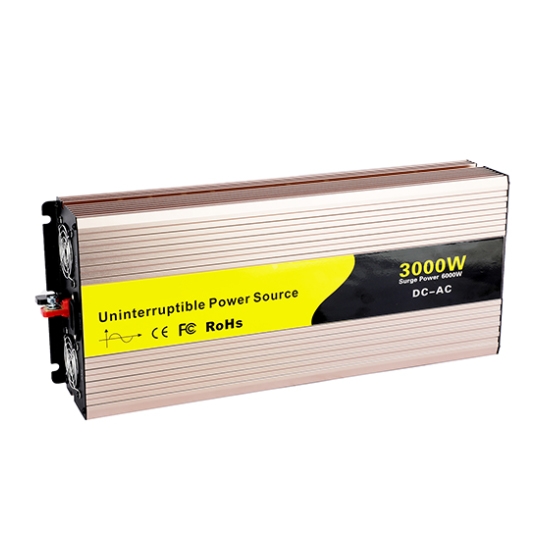

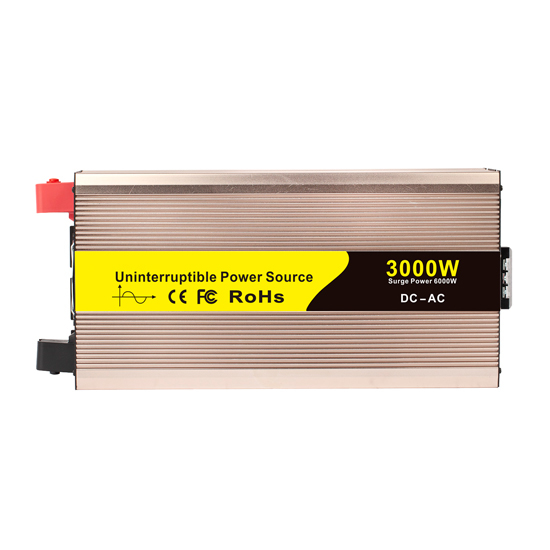

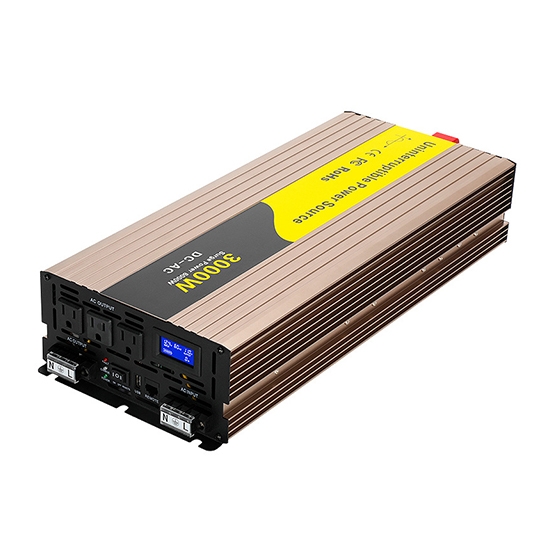

3000 Watt Pure Sine Wave UPS Inverter
from
$478.57
Ex Tax: $478.57
- Stock: In Stock
- Model: HZTOHZ-UPSI-3000
- Weight: 1.00
- SKU: HZTOHZ-UPSI-3000
Pure sine wave ups inverter for sale with 3000 watt (3KVA). It has with USB output port, ideally qualified for powering phone, laptop, etc. This type of ups inverter is easy to connect batteries or vehicles' batteries. Such ups power inverters are commonly used to safeguard against power outages, fluctuations, and voltage irregularities, providing a seamless transition to battery power to keep connected devices running without disruption
Features:
- Uninterruptible power sorce inverter with pure sine wave output (THD＜3%)
- 3KVA UPS inverter built-in 3-stages battery charger, allow to run loads while charging.
- Automatically switch with a ultra-fast switching time.
- Soft-start technology.
- High efficiency-converts the battery’s available power.
- 90% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Optional crocodile clip and cigar lighters, easy to connect batteries or vehicles' batteries.
- 3000 watt UPS inverter with USB charging port: 5V, ideally qualified for powering your phone, laptop, etc.
- LED indicators for power and protections.
- Switch-mode design in UPS inverter, easy to use.
Details:

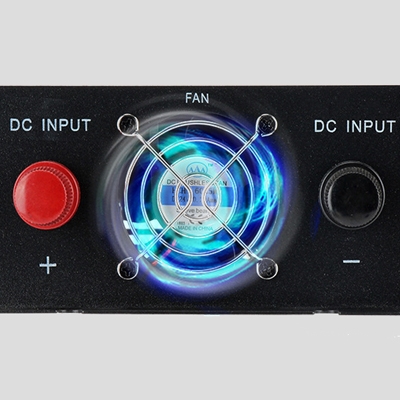

Intelligent Cooling Fan
The automatically activates the fan after the temperature reaches 45℃, effectively reduce ups inverter energy consumption.

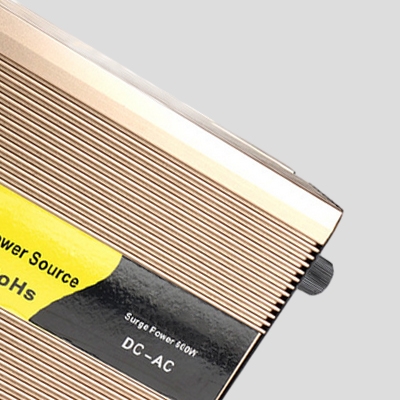

Aluminum Alloy Shell
The surface with aluminum alloy is sandblasted and oxidized for better heat dissipation, and it doesn't discolor easily.

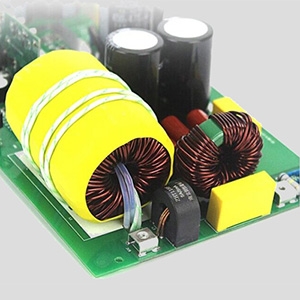

Larger Diameter Copper Coils
Pure sine wave ups inverter adopts with larger diameter full quality copper coils, makes 3000W ups inverter more reliable.
Applications:
Camping
Household Appliance
Office Electricity
Outdoor Work
| Model | HZTOHZ-UPSI-3000 | ||||||
| Rated power | 3000W (3KVA) | ||||||
| Peak power | 6000W | ||||||
| Input voltage | DC 12V | DC 24V | DC 48V (if you want, please contact us) | ||||
| Output voltage | 100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5% | ||||||
| Unload current less than | 1A | 0.7A | 0.4A | ||||
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||||||
| Output waveform | Pure Sine Wave | ||||||
| Power switching time | ≤ 9 ms | ||||||
| Phase | 1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G) | ||||||
| Waveform distortion | THD＜3% (Linear load) | ||||||
| USB port | QC3.0 | ||||||
| Max.efficiency | 90% | 92% | 95% | ||||
| Charging current | 30A | 20A | 10A | ||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | ||||
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | ||||
| Low voltage protection | 10±0.5V | 20±0.5V | 40±1.5V | ||||
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | ||||
| Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V | ||||
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | ||||
| Protect function | Low voltage | Alarm at first, voltage continuously reduce. LED red light on and shut down | |||||
| Over voltage | LED red light on, shut down | ||||||
| Over load | LED red light on, shut down | ||||||
| Over temperature | Alarm at first, temperature continuously rise. LED red light on and shut down | ||||||
| Short circuit | LED red light on | ||||||
| Input reverse polarity | Fuse burn-out | ||||||
| Working temperature | -10 ℃—+50 ℃ | ||||||
| Storage temperature | -30 ℃—+70 ℃ | ||||||
| Dimension (mm) | 530*205*95 | ||||||
| Packing (mm) | 552*250*150 | ||||||
| Net. / gross weight (g) | 6500/7200 | ||||||
| QTY / Cth | 3Pcs | ||||||
| Meas.Ctn (mm) | 570*270*480 | ||||||
| Warranty | 2 years | ||||||
| Cooling method | Intelligent air cooling | ||||||

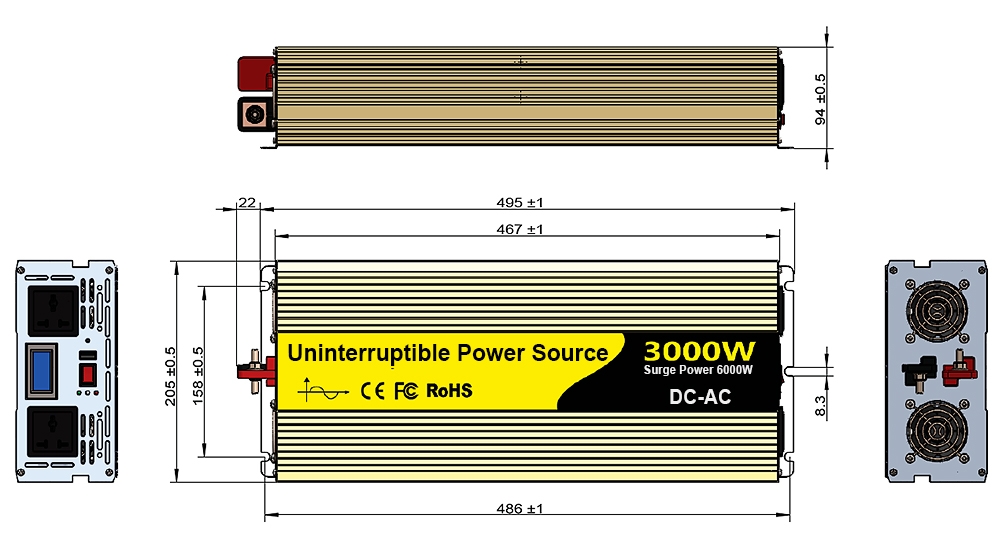

Dimension (Unit: mm)

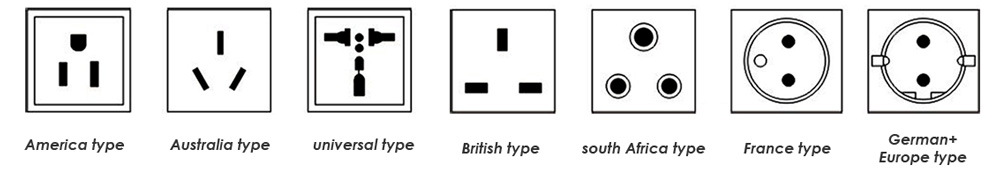

Pure Sine Wave UPS Inverter Output Sockets (Optional)
